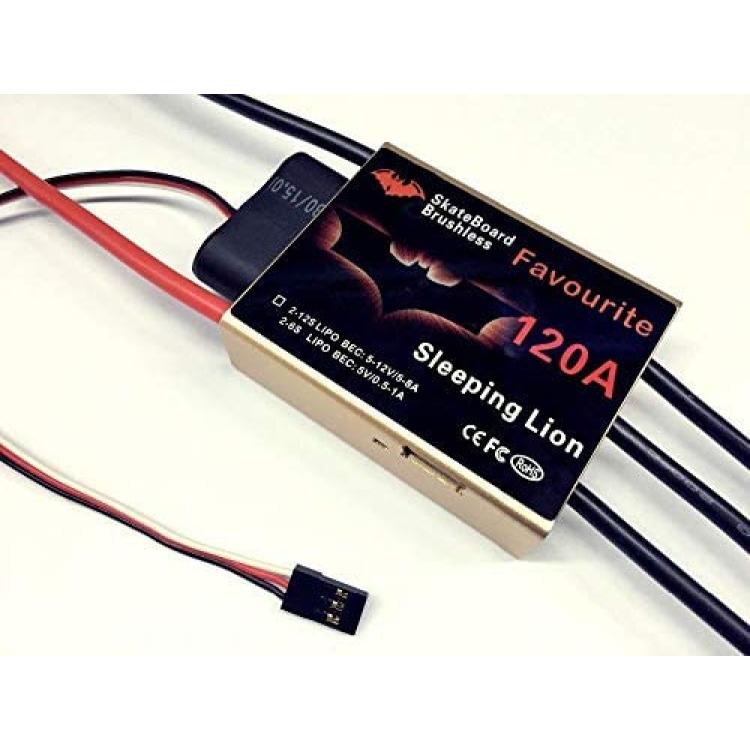

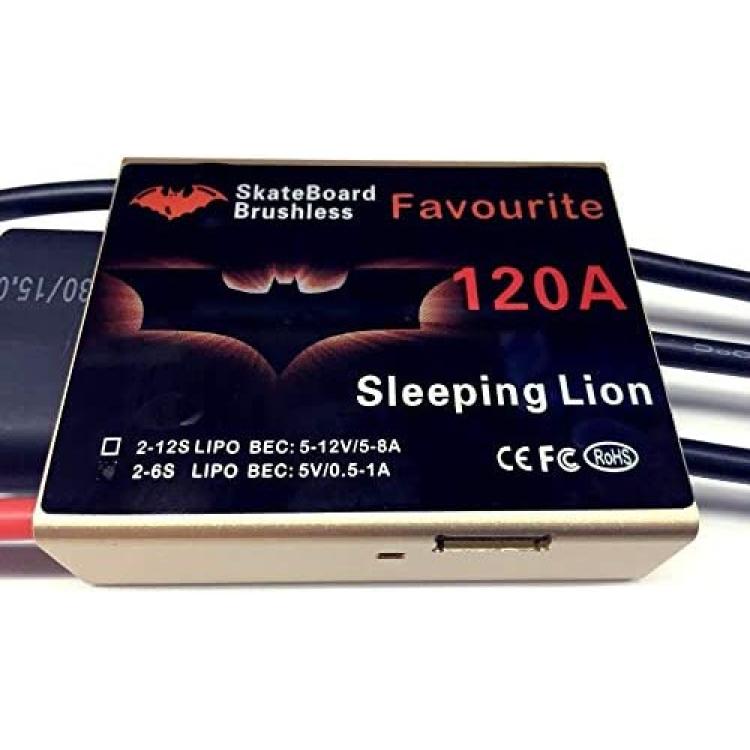

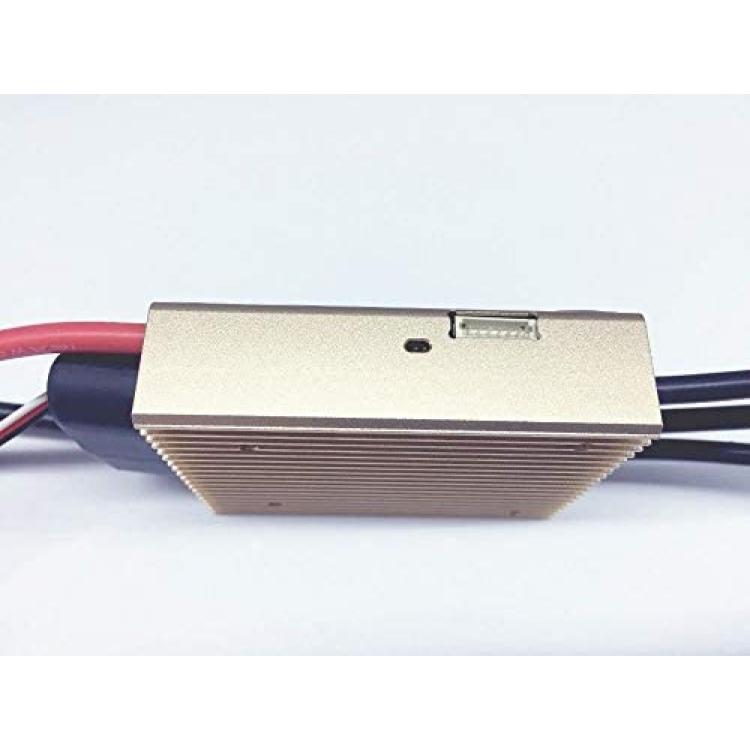

Vehicles-OCS 5S-12S 120A ESC f/Electric Skateboard Sensorless/Sensor brushless Motor

5S-12S 120A ESC f/Electric skateboard Sensorless/Sensor motor
Notice:Before using the new ESC please carefully check for whether each connections are correct or not. If all work fine, then please start your ESC. When you connect with sensored motor, please pay attention that the colorful motor wires- blue(A), yellow(B), orange(C) must connect correctly with sensored motor s A B C, here is the way to find out the A B C of a sensored motor: choose to run in sensored motor, and there are will be 6 connections for ESC s A B C with motor s A B C, among them 4 of them will not make the motor spin, only 2 can. Between the 2 connections, only 1 is correct, how to judge: 1. Choose to run in unsensored mode, empty load with the lowest voltage 2. Move throttle sticker to maximum, record the current value. 3. Turn off power supply,connect hall cable, A B C connection one by one, use the same voltage as step 1 to turn on ESC power, see the ESC s indication light (if ESC has it) or hear the tone(If ESC doesn t have it), both red and green light are ON, or could hear the tone of 123123 to make sure the ESC enters in sensored mode. 4. Move throttle sticker slightly to see if motor spins, if not, then swap A B C wires until see the motor spins, then move the throttle sticker to full and see if current value is same as in unsensored mode. If yes, then means the connection is okay.
Features:
1.Continue current: 120A,Burst current 640A up to 10 sec
2.Input Voltage: 5S-12S Lipo (Note:The manufacturers have upgrade the ESC support Input Voltage only support 5S-12S now,but the ESC tags have not changed still mark 2S-12S by mistake .Please ignore the 2S-12S wrong tags,and must input Voltage 5S-12S as list Description. )
3.SBEC output: 5-12V/5-8A
4.Size(approx): 64*41*42mm
5.Weight: 180g
6.Support: Sensorless/Sensor brushless motor
7.Support LCD or USBLINK +PC software update or modify parameter(The LCD and Usblink b
