Description

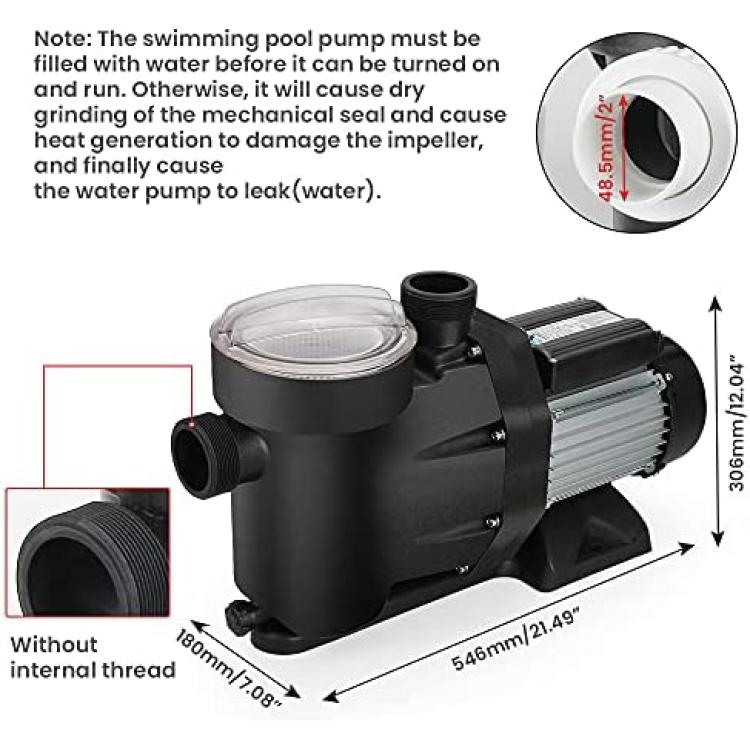

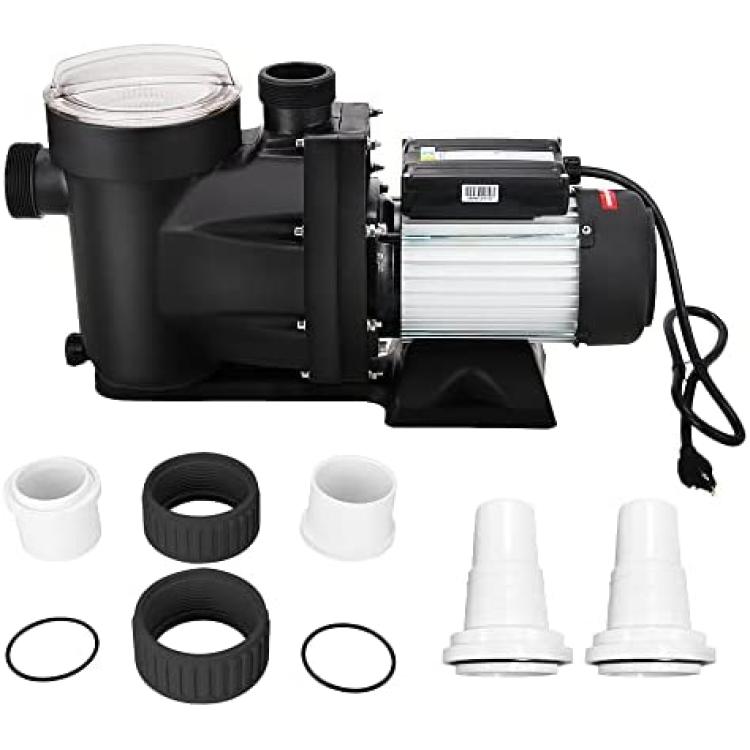

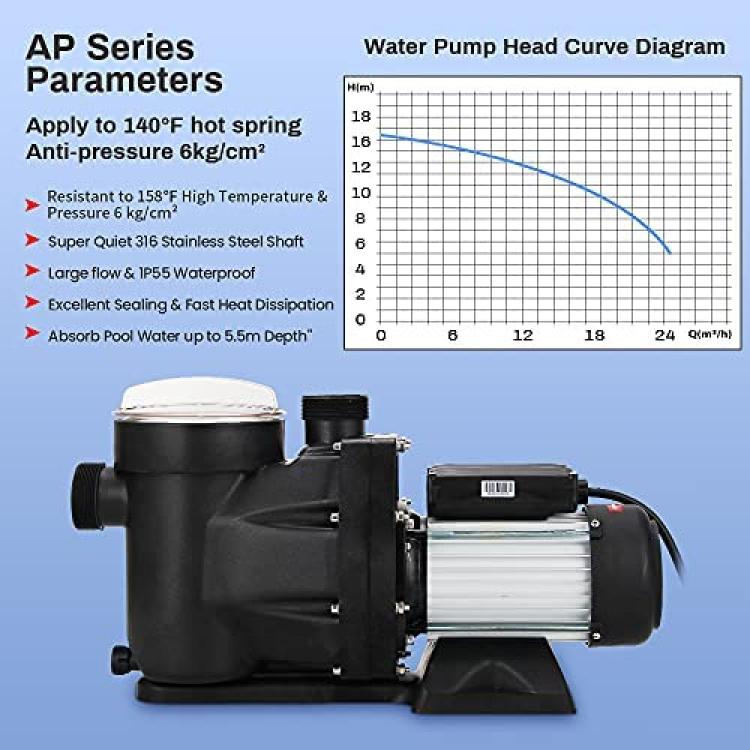

IPX5Class FSilent operationConcise designNice performanceOverload protectionSingle or three phaseAnodized motor bodyArrange drain device of pool pump.Can resist chemical in swimming poolHuge pro-filter for less cleaning maintement Heighten pump base to keep water pump off Water or moist working environment.1 ×1100W(1.5HP) / 1850W(2.5HP) Swimming Pool Pump2 × O-shaped Washers2 × Water Pipe Joints(big and small)1 × ManualModel:SPP1100A(1.5HP) & SPP250A(2.5HP)Lengh:546mm/21.5Power(P1):1100W/1.5HP &1850W/2.5HPVoltage:110-120V/60HZQ.MAX(Flow):101GPM(1.5HP),148GPM(2.5HP)H.MAX: 50ft (1.5hp) & 68ft (2.5hp)Self-priming:5Gross weight: 21.4 LB(1.5hp) &24.3(2.5hp)Qty/20:673Package dimensions: 23.6*8.1*13.8 inch/600*205*350 mm(1.5hp) & 23.6*8.1*13.8 inch/600*205*350 mm(2.5hp)Liquid temperature ? 140?Utilize the negative pressure (vacuum) formed when the swimming pool pump is working, it will press the water lower than the suction port into the water inlet, and then discharges it from the drain end of the water pump.When the motor temperature exceeds a certain threshold, the corresponding protection function is activated to prevent the motor from burning out.Adding an O-shaped sealing ring between the filter basket and the filter pipe can effectively strengthen the sealing of the filter port and reduce the water leakage problem of the filter port during operation.Unique filter basket design, it can effectively filter impurities in water.( Such as: hair, pebbles, branches, leaves, etc.)It not only can effectively seal the filter port to prevent water leakage, but also can observe the filtering situation inside the filter tube through the transparent cover anytime and anywhere. Convenient and simple, saving working time and effort.The strainer basket built into the in/above ground pool pump tank should be inspected and cleaned at regular intervals.The water being pumped cools and lubricates the seal.running the swimming pool pump dry will damage the seal. Always keep liquid in the pump tank. No further lubrication of the pump end is necessary.After the pump tank has been filled with water, and the started,allow a few moments for the swimming pool pump to start delivering water. Be sure that suctions and discharge valves are open when pump is running.Operating the in/above ground pool pump with a closed valve in the system can cause pool pump damage. If flow dose not start within ten minutes,stop the motor and determine cause.When not in use, please place the swimming pool pump in a well-ventilated dry area.The swimming pool pump are only suitable for counter-clockwise rotation when viewing from the swimming pool pump end.Before disconnecting electric connections, shut off electricity at its source.
