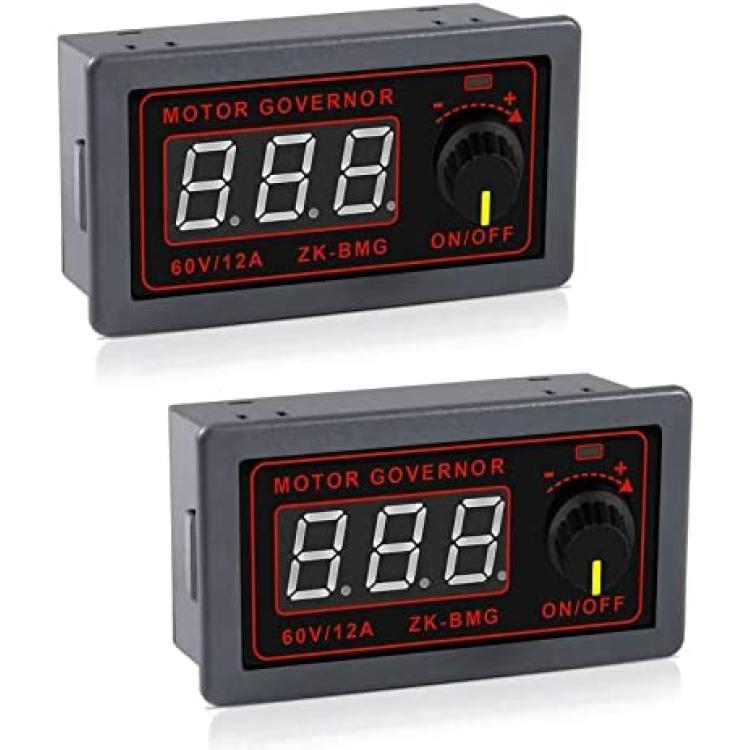

Aobao 2pcs Motor Speed Controller PWM DC 12V 24V 60V 500W Adjustable Speed R
About this product
*Digital Rotary Encoder Button：The rotary encoder adopts the principle of digital pulse, the output will be as much as you rotate it, and the same value will be input when you rotate it next time. Good repeatability, high precision, can be quickly adjusted to the value you want
*Soft-start Protection：The motor controller has a soft-start protection function that can effectively reduce the inrush current, protect the motor and prolong the life of the motor
*Features: LCD HD display. Can adjust the duty cycle, the upper and lower duty cycle limits and the operating frequency. Comes with start and stop button and can be controlled by external switch, to meet your control requirements.
*High-quality Material: This PWM Motor Speed Controller is made of premium quality circuit board material, which has a good durability and wear-resistance to ensure a long term service.
*Widely Application: This PWM DC Motor Speed Controller supports a widely input voltage from DC 9V-60V, and it fits to 12V 24V 36V 48V power supply, at the same time the output current is 12A, power 500w, which ensures a widely application.
Description

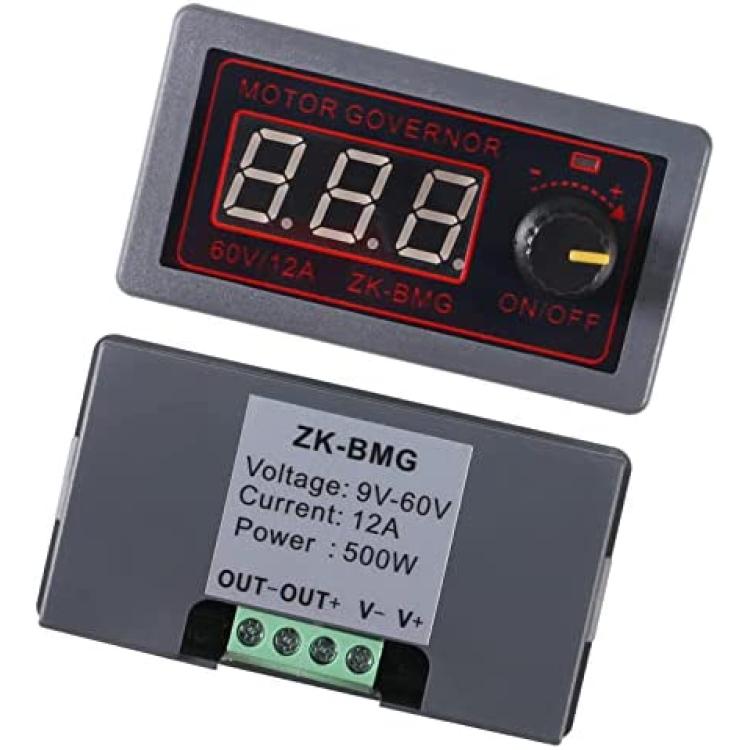

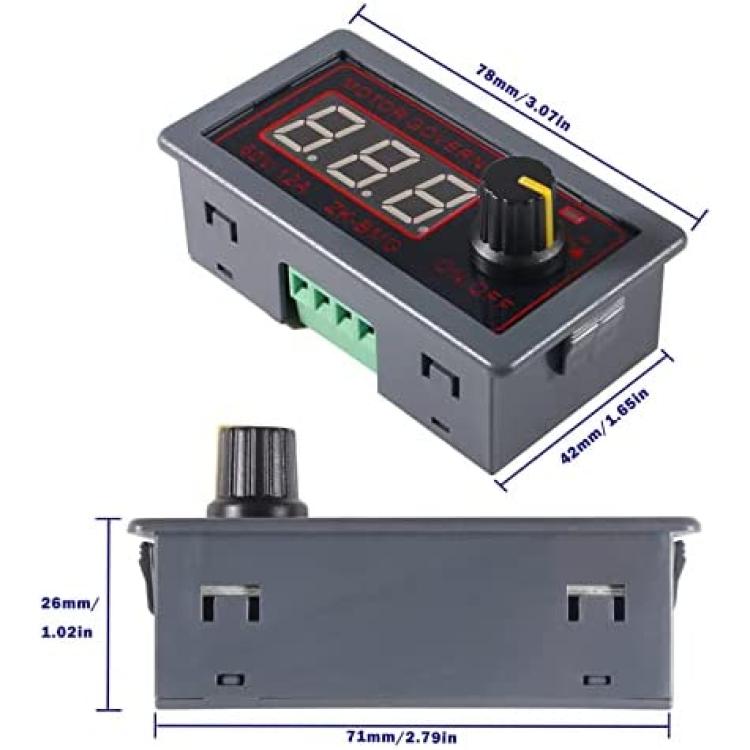

2pcs motor speed controller pwm dc 12V 24V 60V 500W adjustable speed regulator with stepless variable rotary switch pwm signal generator driver module Specification: Product name:ZK-BMG High-Power PWM DC Motor Speed Controller. Product Number:ZK-BMG Working Voltage:DC 9V-60V Rated Current:12A Peak Current:20A Power:500W(Max) Work Frequency:1KHz-99KHz(Default 20KHz) Frequency Accuracy:1% Frequency Resolution:1KHz Duty Cycle:0%-100% Duty Cycle Resolution:1% Work temperature: -40~85? Working Humidity:0%-95%RH Size:79*43*26mm Features: Support ON/OFF output Soft start function Support set duty cycle Support set frequency Adjustable digital encoder Instrument case Support reverse connection protection Support parameter memory function
