Zingpaw 6V 12V 24V 28V 3A 80W DC Motor Speed Controller PWM Speed Adjustable Switch for Controlling Motor
About this product
*[PARAMETER] Working voltage: DC 6V - DC 28V, Max working current: 3A, control power: 80W Max.
*[PWM MODE] This DC motor speed controller controls the speed of a DC motor by adjusting Pulse-Width-Modulated (PWM).
*[ADVANCED DESIGN] Small size and high-efficiency, adjust the motor smooth no noise no vibration, suitable for long hours of work.

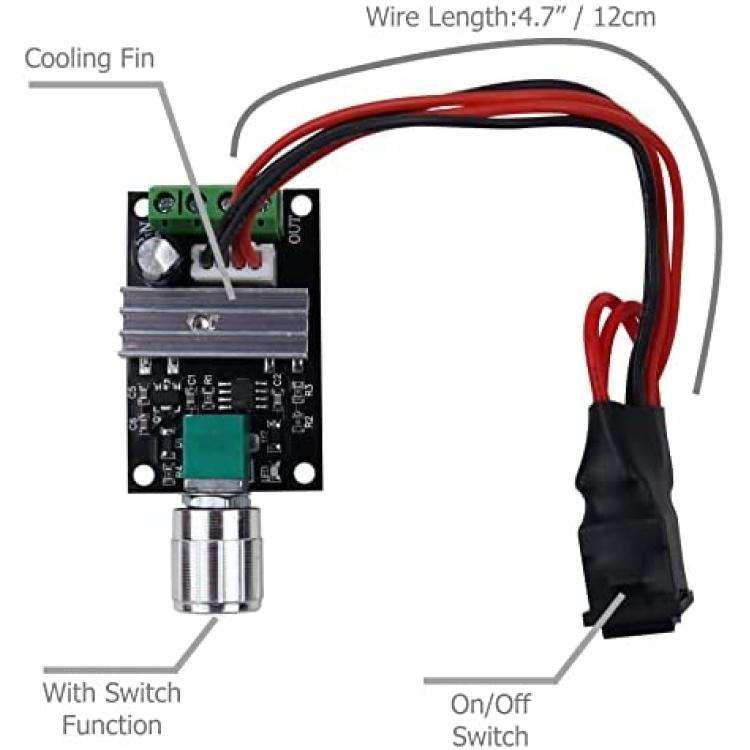

*[SPEED CONTROLLER] The knob is with switch function, can control motor speed to change from 0 percent to 100 percent , and it is noise free when motor is at low speed.
*[IMPORTANT NOTED] DC power supply polarity can NOT be inversed. And DO NOT connected to 120V AC as input power supply. This motor speed controller only work under DC.
Description
Zingpaw Motor Speed Controller controls the speed of a DC motor by adjusting Pulse-Width-Modulated (PWM). The controller designed with wide range input voltage from DC 6v to DC 28v. It fits to most kind of DC motor. This Motor Speed Controller is easy to wire and applied widely. They work great for Arduino's DIY project, electronics experiment, teaching, school science experiments, car repairing etc. Energy-saving and produce low heat. A reliable choice for your project!
Features:
- Control the speed of a DC motor with this controller
- High efficiency, high torque, low heat generating
Specifications:
- Working voltage: DC 6V - DC 28V
- Max working current: 3A
- Control power: 80W Max..

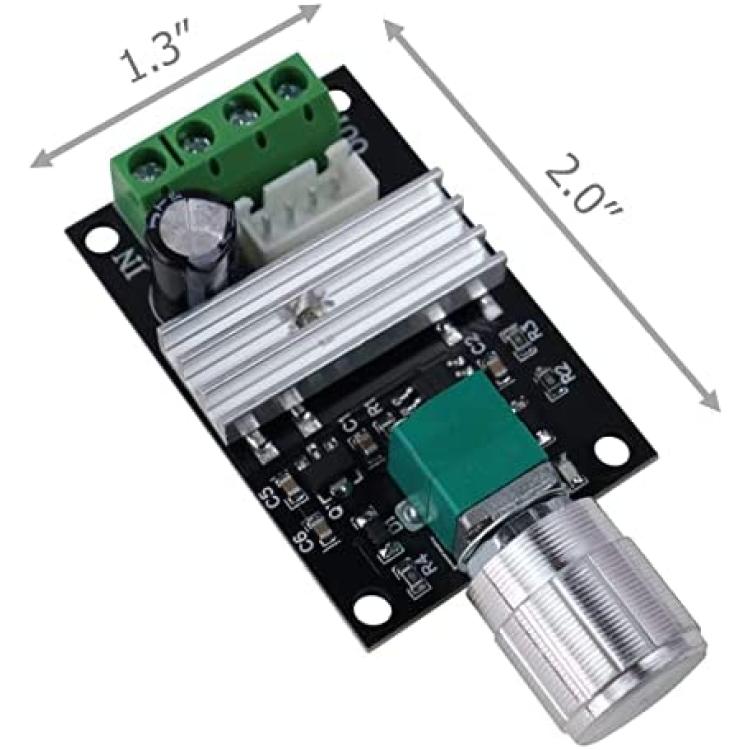

- Overall Size (L x W x H ): Approx. 73 x 60 x 27 mm
- Pin definition: (View from front) From left to right they are motor-, motor+, power+, power-
Package List:
- 1 x DC Motor Speed Controller
PLEASE NOTE:
* 1.DC power supply polarity can not be inversed, otherwise is may damage controller.

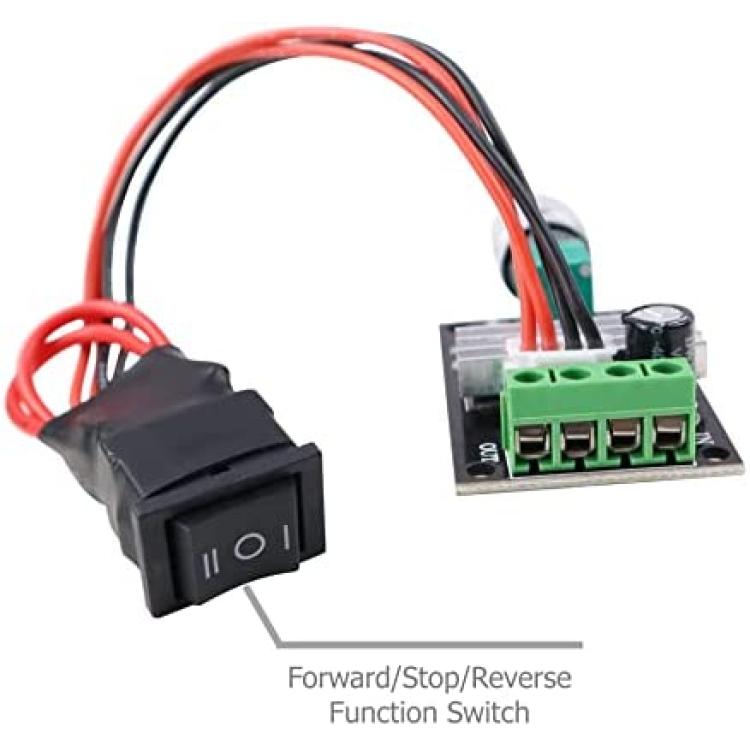

* 2.If need the forward and reverse function for the motor, change the positive and negative polarity of the motor in the controller board.
* 3.The controller is NOT reverse-polarity protected and it will be damaged if connect the supply voltage with wrong polarity. Double check all connections before applying power and always turn off the power supply before making any wiring changes.
* 4.Not suitable for AC power supply.
