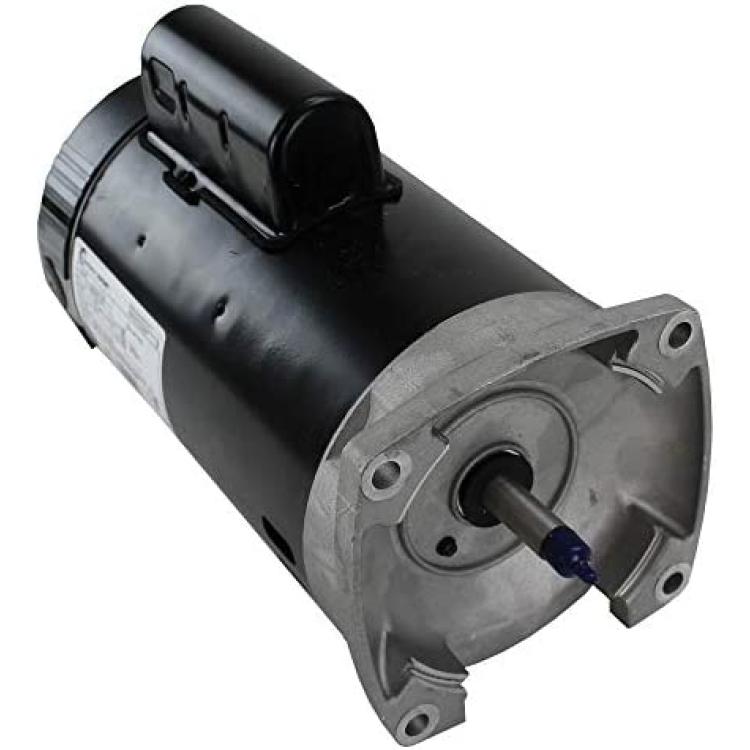

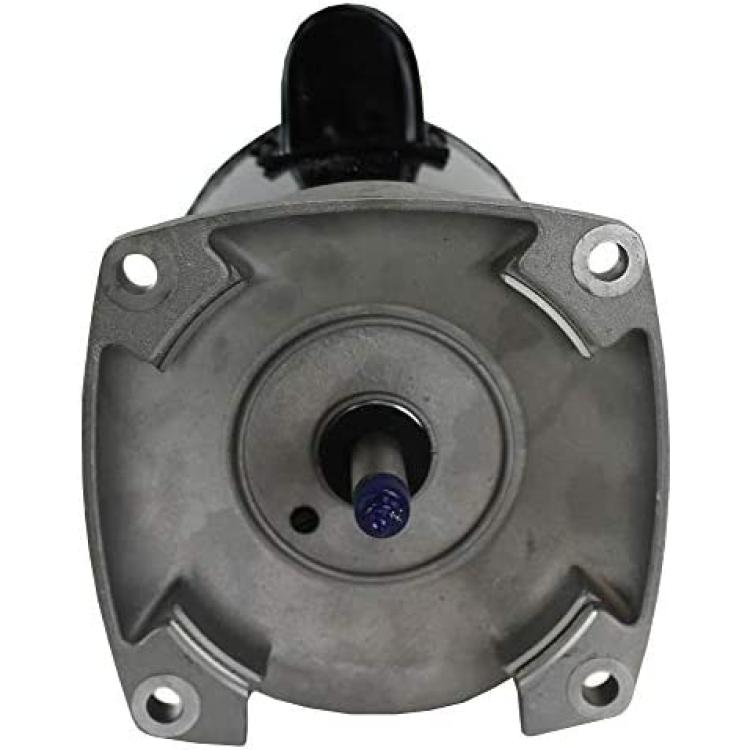

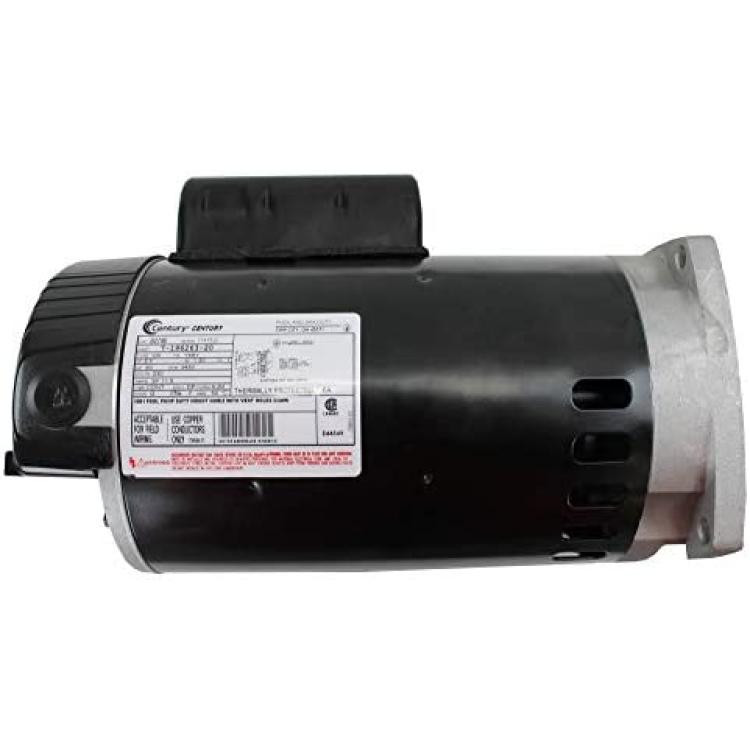

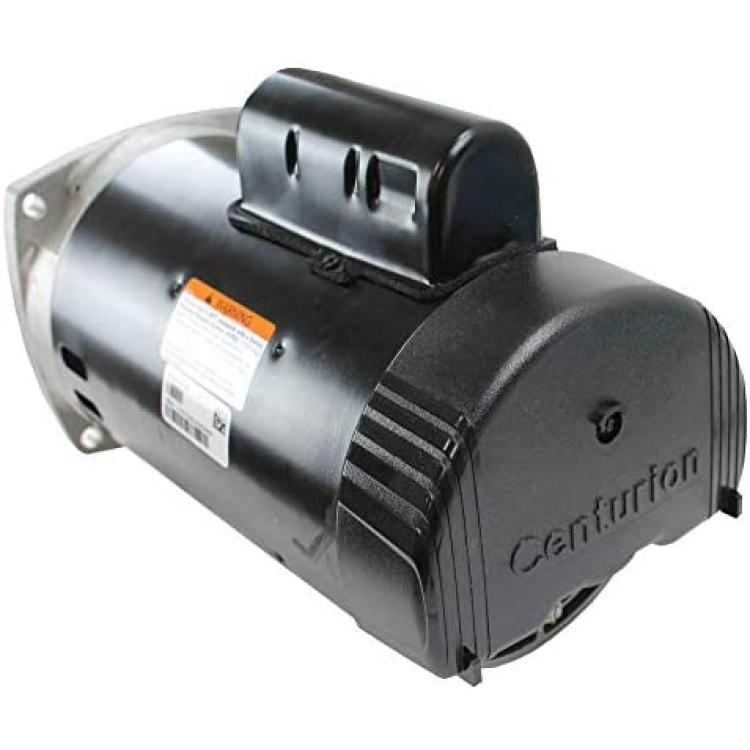

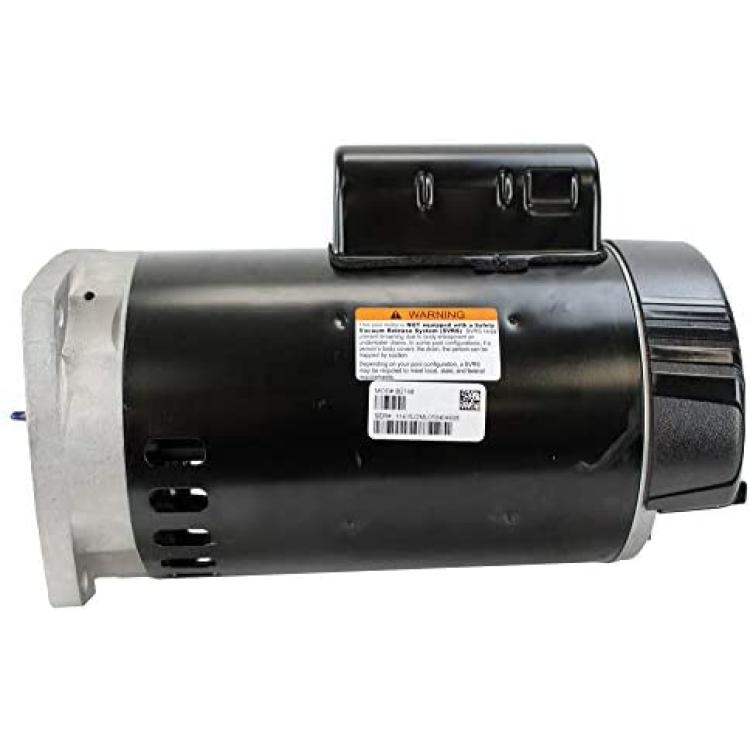

A.O Smith B2748 Single Speed Square Flange Threaded Shaft Motor for Pools, 2 HP
Brand: Century Electric/AO Smith Motors Co
Product Code: MM1044
Availability: Pre-Order, Inquiry Price
Product Code: MM1044
Availability: Pre-Order, Inquiry Price
About this product
*2 hp;threaded;230v
*Permanent split capacitor
*Switchless; auto overload protector
*Package Dimensions: 49.53 L x 23.114H x28.194Wcentimeters
*2 hp;threaded;230v
Description
2 HP;3450 RPM;230 VAC;11.5 Service Factor Amps;Service Factor 1.30;THP 2.6;56Y Frame;Threaded Shaft;Auto Overload Protector. Permanent Split Capacator;Switchless;Single Phase;Dripproof;No Base. Ball Bearings;50 Degree C Ambient;Rotation is CCW Pump End;60 HZ;Class B Insulation;Stainless Steel Shafts. Used on full rated versions (not energy efficient) of the Pentair/PacFab/Purex Challenger;SuperFlo;Ultra Flow;Whisperflo;Anthony Plastic pumps;Sta-Rite Max-E-Glas;Max-E-Pro;Dura-Glas;and Dyna-Max pumps.
