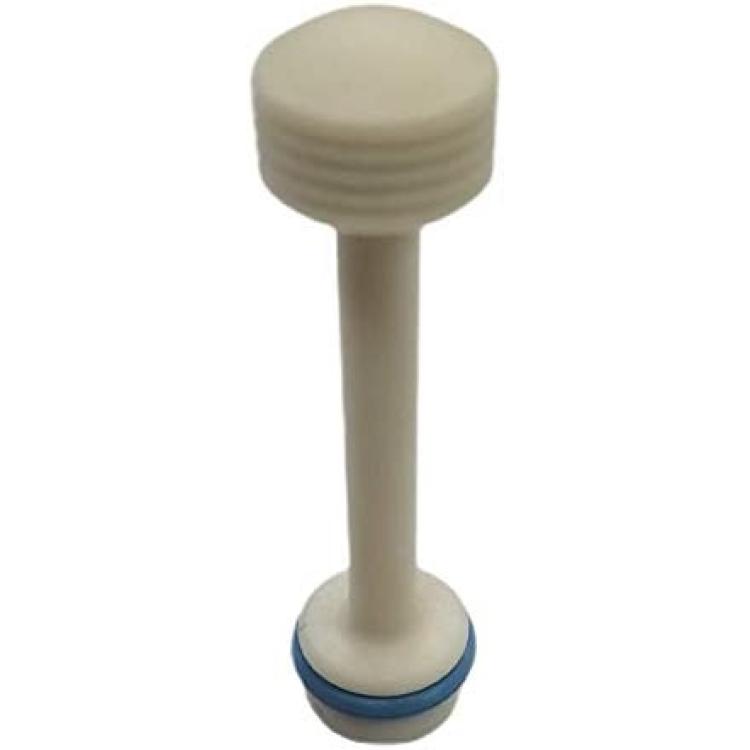

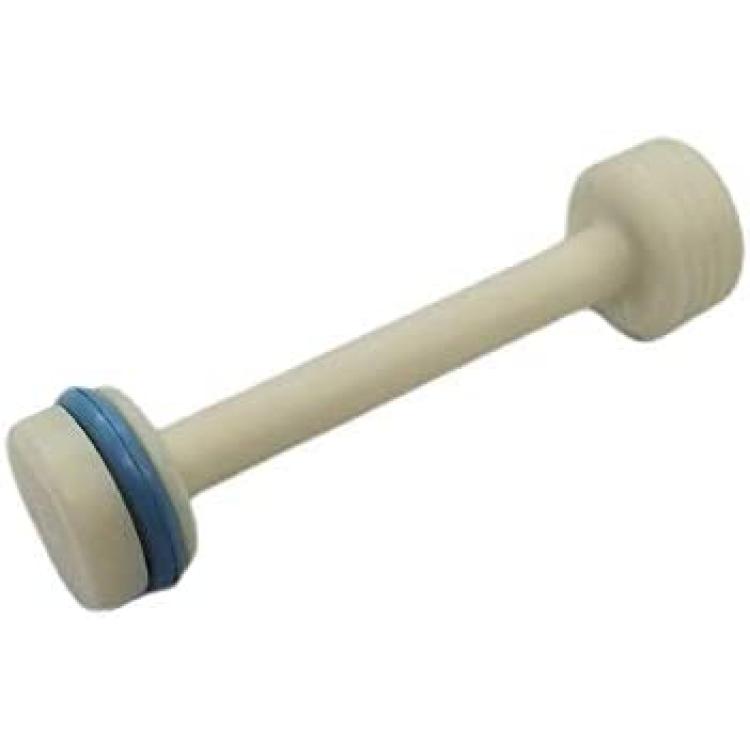

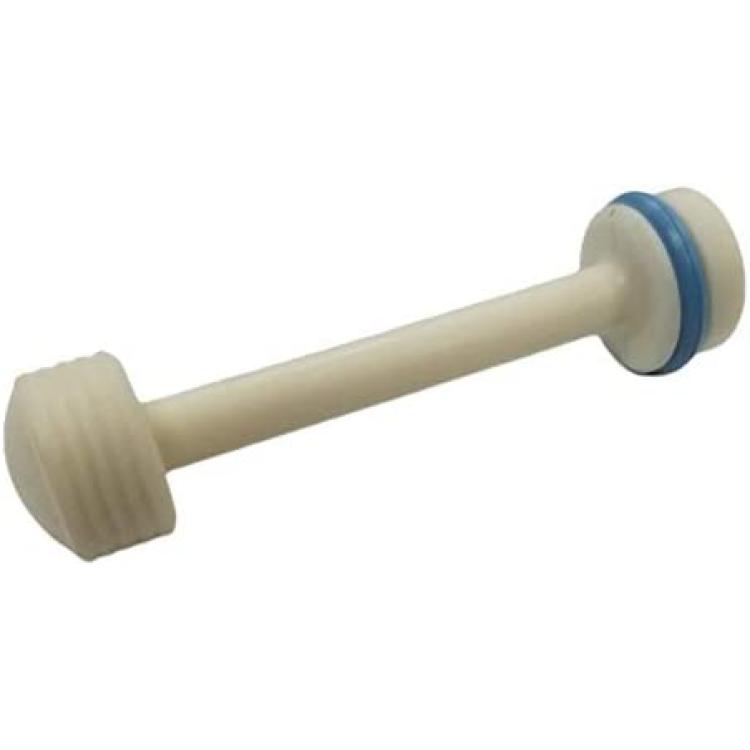

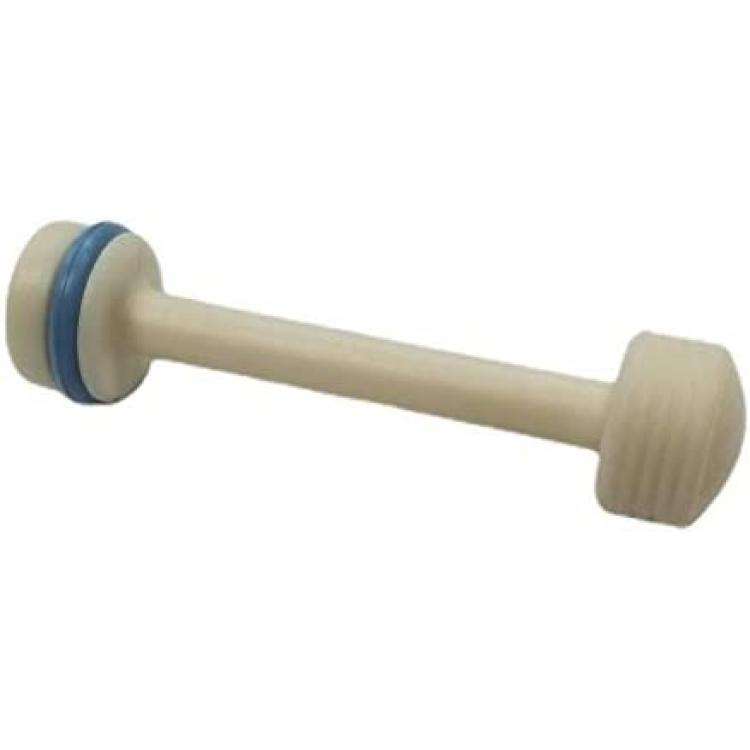

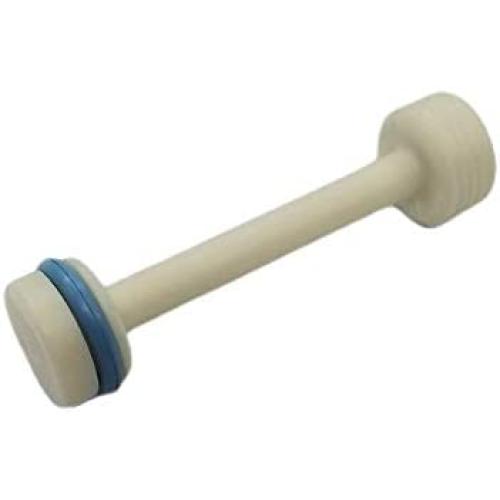

LS Oil Galley Diverter Restrictor Barbell Engine Block Plug Compatible with all GM Chevy 1997-2014 LS Series Engines LS1 LS3 LS2 LQ4 LQ9 LS6 L92 L99 L33 4.8L 5.3L 5.7L 6.0L 6.2L Vortec
About this product
*Replace your old worn-out LS Oil Passage Diverter to prevent oil seepage or oil bypassing the oil filter. This is also a part that is overlooked when reassembling an engine which will cause little to no oil pressure resulting in engine failure.
*Compatible with ALL Chevrolet GM LS Series Engines 1997-2014 (99-2013 4.8L,5.3L,6.0L,6.2L Vortec Truck Engines) LS1, LS2, LS3, LS6, LS7, LS9, GM 4.8L 5.3L 6.0L 6.2L. Also Fits LSX LM7 LR4 LQ4 LQ9 L33 LH6 L92 L76 L99 L96 L82 L83 L84 L86 L87 Engines.
*This installs in the oil galley hole behind the rear engine cover on the rear of the engine on the driver side. Non-O-ring end goes into block 1st. If you are not sure if your rebuilt or fresh rebuild with little or no oil pressure is missing this, you can remove the rear threaded oil galley plug above the oil filter location and see if you can see the shaft of this barbell through the hole. Comes with 1ea oil passage barbell.
*We are an AS9100D and ISO 9001:2015 Certified Manufacturer that produces aerospace parts for The Boeing Aircraft Company and The US Military. Parts we produce fly at 30,000 feet where failure is not an option. We put the same quality into every part we produce.
*When you purchase Z Whip Parts you will always get the highest quality for your vehicle that you rightfully deserve.
Description
Z Whip LS Oil Galley Diverter Restrictor Barbell. Replace your old worn-out LS Oil Passage Diverter to prevent oil seepage or oil bypassing the oil filter. This is also a part that is overlooked when reassembling an engine which will cause little to no oil pressure resulting in engine failure. This installs in the oil galley hole behind the rear engine cover on the driver side. Non-O-ring end goes into block 1st. If you are not sure if your rebuilt or fresh rebuild with little or no oil pressure is missing this, you can remove the rear threaded oil galley plug above the oil filter location and see if you can see the shaft of this barbell through the hole. Comes with 1ea oil passage barbell. Compatible with ALL Chevrolet GM LS Series Engines 1997-2014 (99-2013 4.8L,5.3L,6.0L,6.2L Vortec Truck Engines) LS1, LS2, LS3, LS6, LS7, LS9, GM 4.8L 5.3L 6.0L 6.2L. Also Fits LSX LM7 LR4 LQ4 LQ9 L33 LH6 L92 L76 L99 L96 L82 L83 L84 L86 L87 Engines.
