NIBBI Carburetor PWK24mm,fit 100cc—125cc Motorcycle Engine with Carb Jets for YAMAHA KAWASAKI SUZUKI Apollo Dirt Bike Mini Bike SSR TTR KYMCO SYM TAOTAO GY6 Scooter Moped

NIBBI PWK Carburetor
?For Displacement Fit on 2T or 4T 100cc to 450cc engine, 1 ,2 and 4 cylinder motor are universal.
?You can check your original carb , buy same or +/- 50cc size, will be save gasoline and qulick racing run.

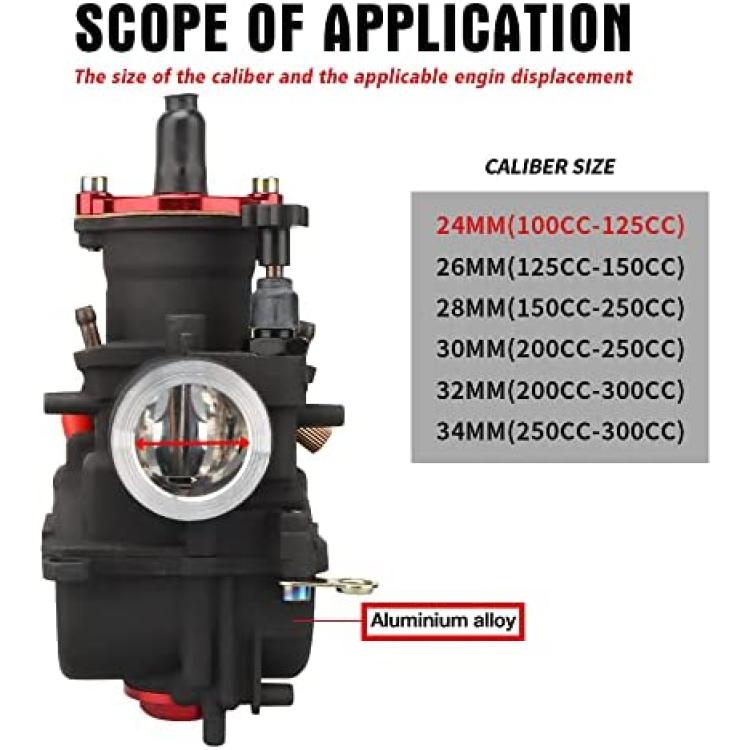

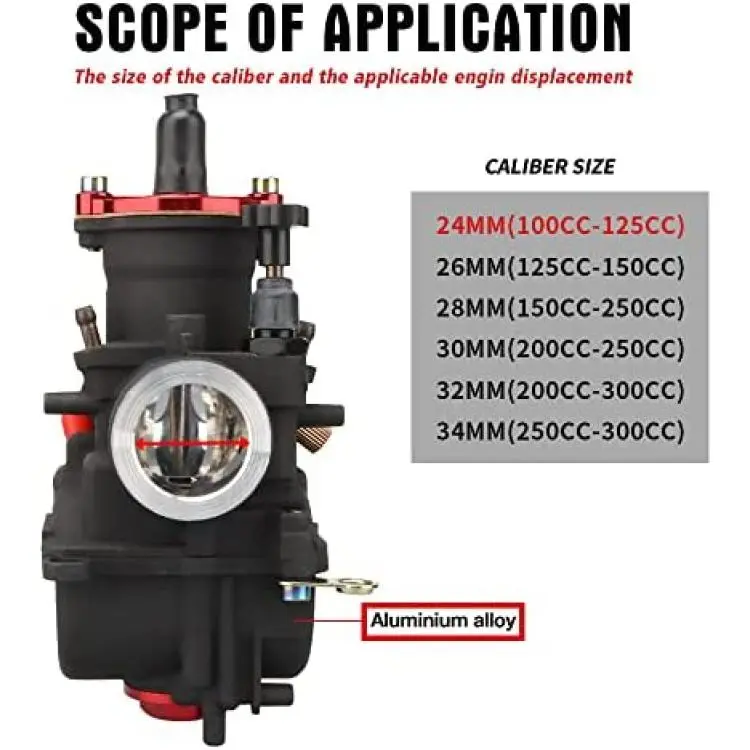

Fitment:
?PWK24mm,Intake manifold Outer Diameter: 35mm, Air filter side Outer Diameter: 50mm , fit on 100cc
to 125cc engine
?PWK26mm,Intake manifold Outer Diameter: 35mm , Air filter side Outer Diameter: 50mm , fit on 125cc
to 150cc engine
?PWK28mm,Intake manifold Outer Diameter: 35mm, Air filter side Outer Diameter: 50mm , fit on 150cc to
250cc engine
?PWK30mm, Intake manifold Outer Diameter 40mm, Air filter side Outer Diameter: 55mm , fit on 200cc to
250cc engine
?PWK32mm,Intake manifold Outer Diameter 40mm, Air filter side Outer Diameter: 55mm , fit on 200cc to
300cc engine
?PWK34mm,Intake manifold Outer Diameter 40mm, Air filter side Outer Diameter: 55mm , fit on 250cc to
300cc engine
?PWK36mm,Intake manifold Outer Diameter 46mm, Air filter side Outer Diameter: 63mm , fit on 300cc to
350cc engine
?PWK38mm,Intake manifold Outer Diameter 46mm, Air filter side Outer Diameter: 63mm , fit on 350cc to
450cc engine

Feature:
NIBBI PWK Carburetor is refined to perfection and has set the standard among scooter and motocross racing carburetors.

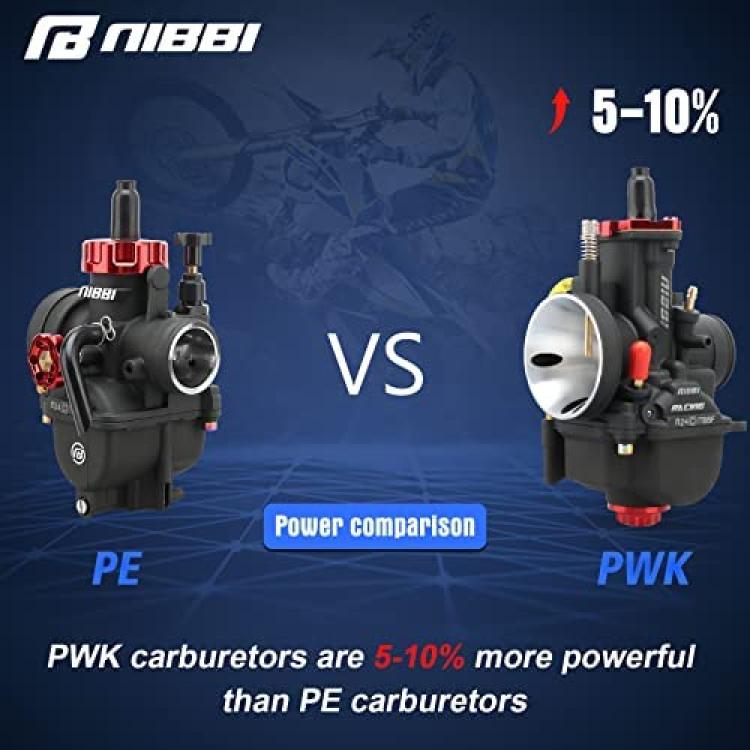

Precision machining, standard atomization, sensitive throttle response.Solve the problem of insufficient power of PZ carburetor.

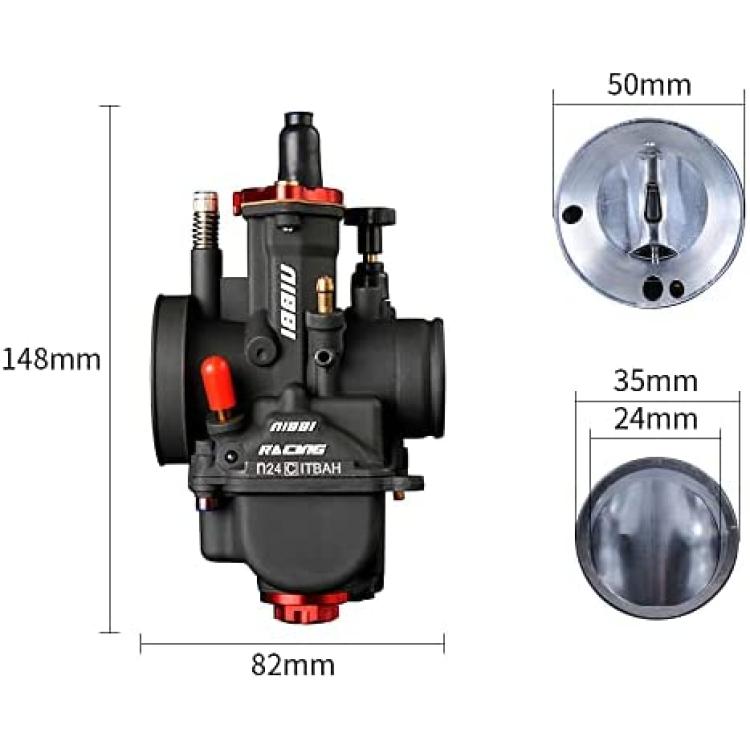

Specification:
Material :Zinc alloy
Manifold intake Inner Diameter:24mm
Manifold intake Outer Diameter:35mm
Air Filter Side Outer Diameter:50mm.

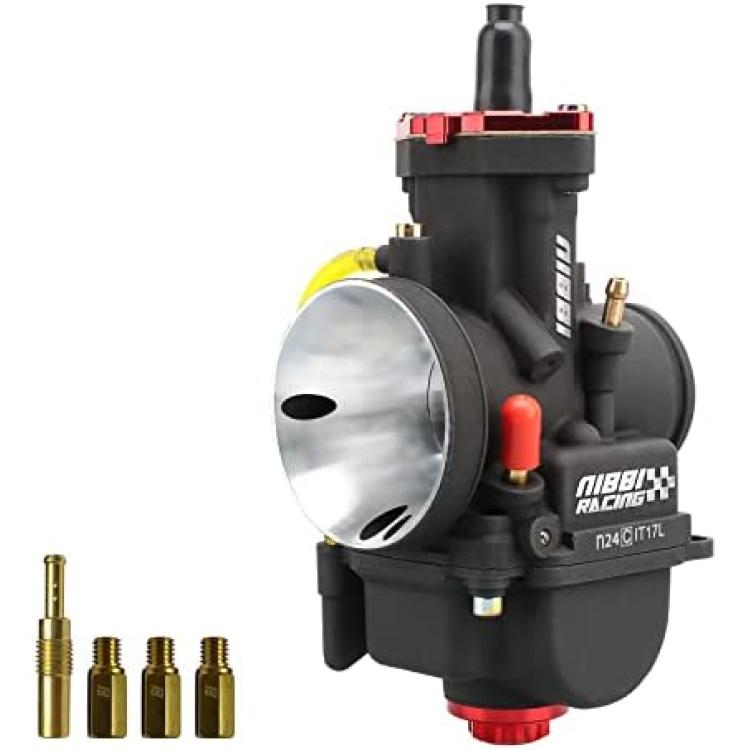

Package includes:
1 x carburetor
4 x jets
2 x sticker
1 x manual
