ViaGasaFamido Worm Gear Motor, DC High Torque Motor, Metal Reduction Gearbox Motor Reversible Electric Turbo Speed Reduction Motor with Ball Bearing 24V 8mm Shaft(100RPM)
Availability: Pre-Order, Inquiry Price
About this product

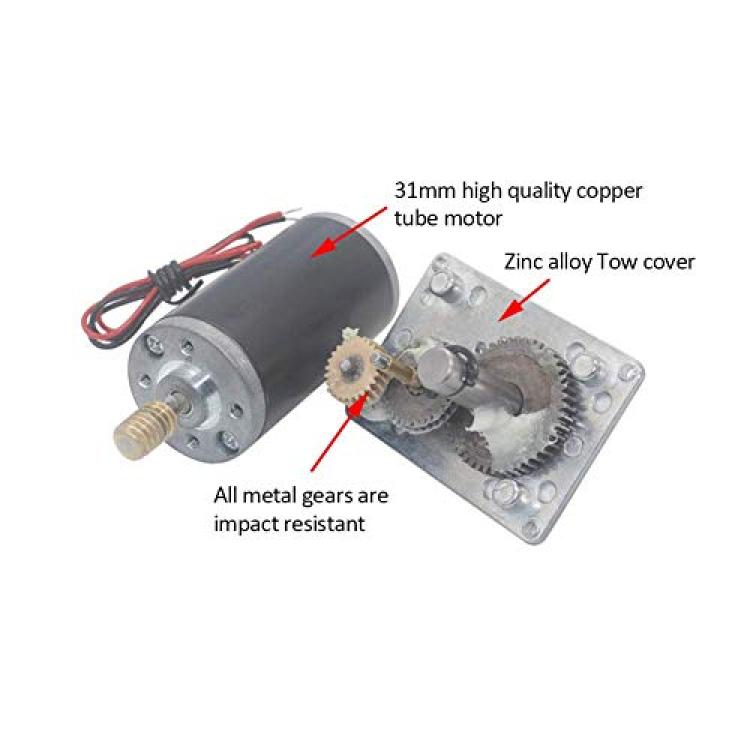

*Metal Gear:Metal gears are characterized by high precision, durability and low loss.It makes your motor perform better.

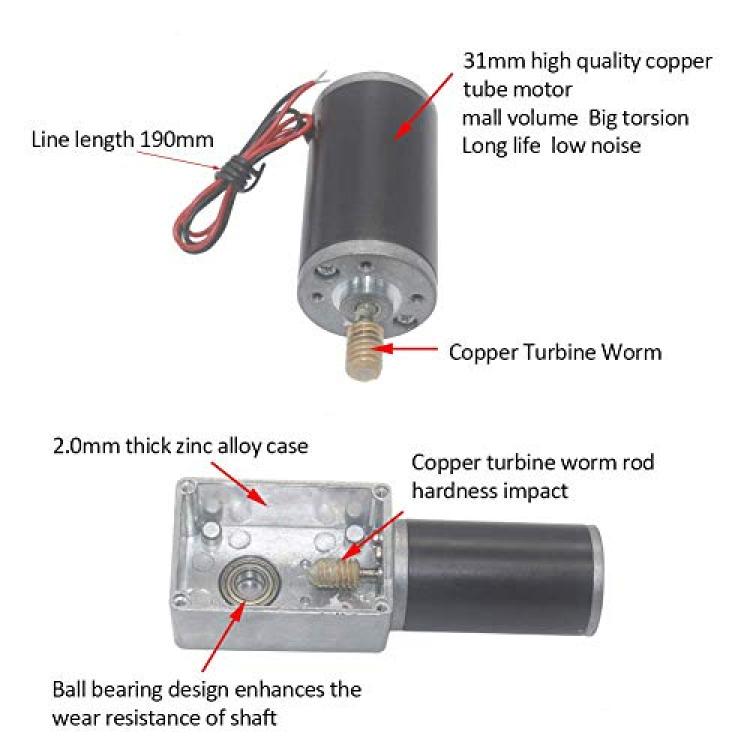

*Ball Bearing Design:This motor has ball bearings at both front and rear, which makes this motor perform better.
*Ultra Quiet Design:The sturdy metal body and quiet operating structure ensure that it produces very little noise, providing you with a quiet environment.
*High Quality Material:The worm gear motor is made of high quality material, which has good performance and stable running.
*Widely Used:The worm gear motor is usually used in curtain machines, advertising equipment, window openers and smart devices.
Description
Specification:
Condition: 100% Brand New
Voltage: 24V
Optional Style: 500RPM, 250RPM, 150RPM, 100RPM, 50RPM, 30RPM, 20RPM, 10RPM
Voltage V: 24, 24, 24, 24, 24, 24, 24, 24
Rated Speed RPM: 500, 250, 150, 100, 50, 30, 20, 10
Rated Torsion Kg.cm: 3.4, 6.2, 10, 20, 40, 60, 70, 70
Rated Current A: 1.6, 1.6, 1.6, 1.6, 1.6, 1.6, 1.6, 1.6
Maximum Torsion Kg.cm: 10, 18, 30, 60, 70, 70, 70, 70
Stop Current A: 4.5, 4.5, 4.5, 4.5, 4.5, 4.5, 4.5, 4.5
Package List:
1 * Worm Gear Motor
Instructions for Use:
1. The gear can withstand up to 70KG, it is forbidden to block, and it is easy to burn the motor after blocking for a long time.
2. The motor has a self-locking function of power-off, and the positive and negative poles of the switching motor are controlled to reverse.
