BOJACK Bathroom Vent Fan Motor 120V 60Hz 0.60A 30W Compatible with 686,687,8870,M686 YJF6158
Availability: Pre-Order, Inquiry Price
About this product
*Bathroom exhaust fan replacement: 0.60 AMP, 3500 RPM, 120 volt, 60 Hz,30 W
*Wire length = 6.496" with 2-prong plug
*They have passed UL/CSA certified, stable and durable
*Mounting studs 1.882" on center

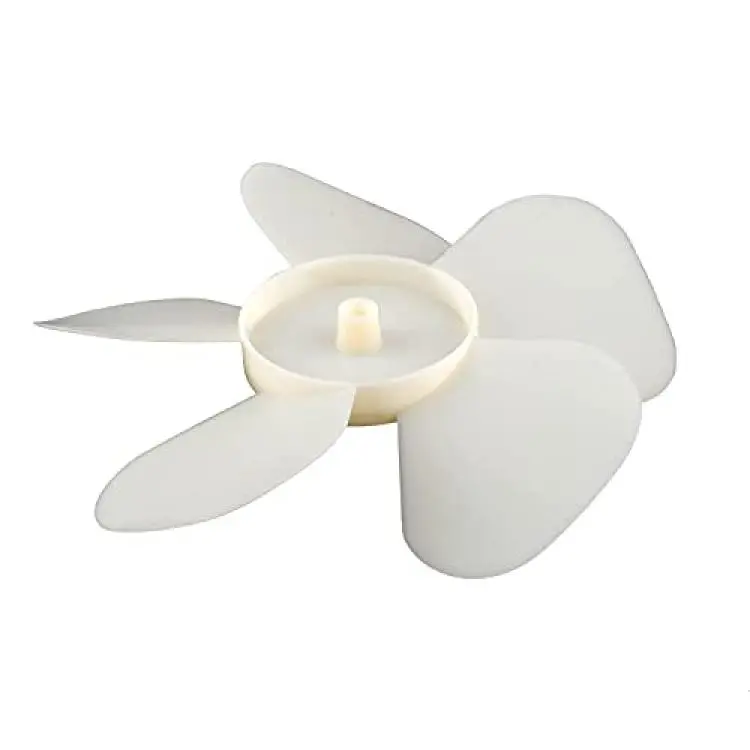

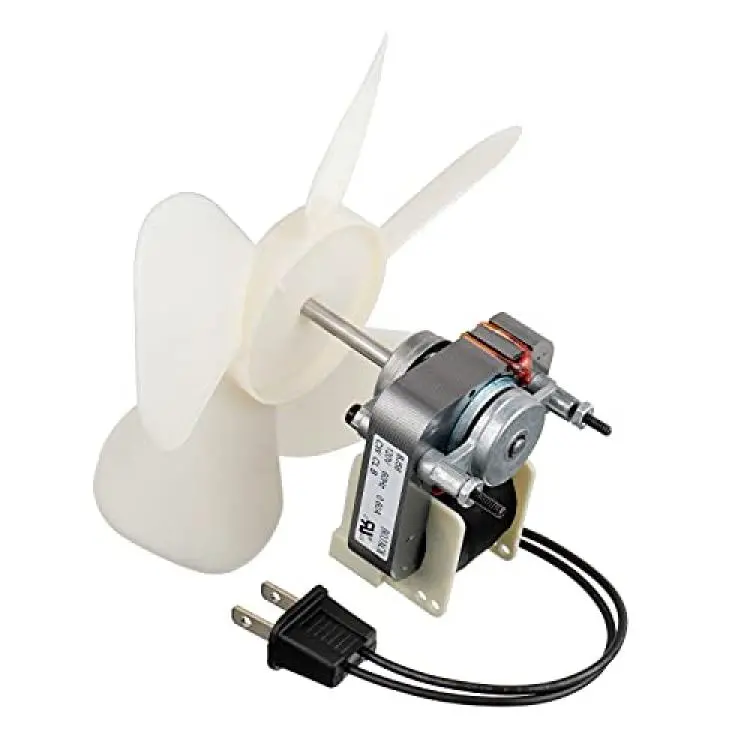

*Kit contains: 1 x motor, 1 x fan = 6.6" (flat/paddle style)，Replacement for motors : 686,687,8870,M686.
Description

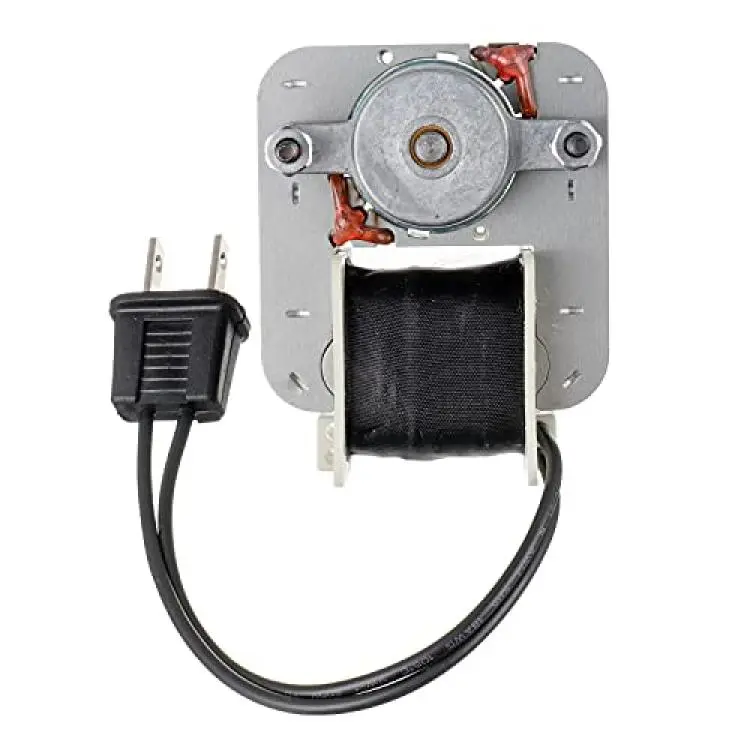

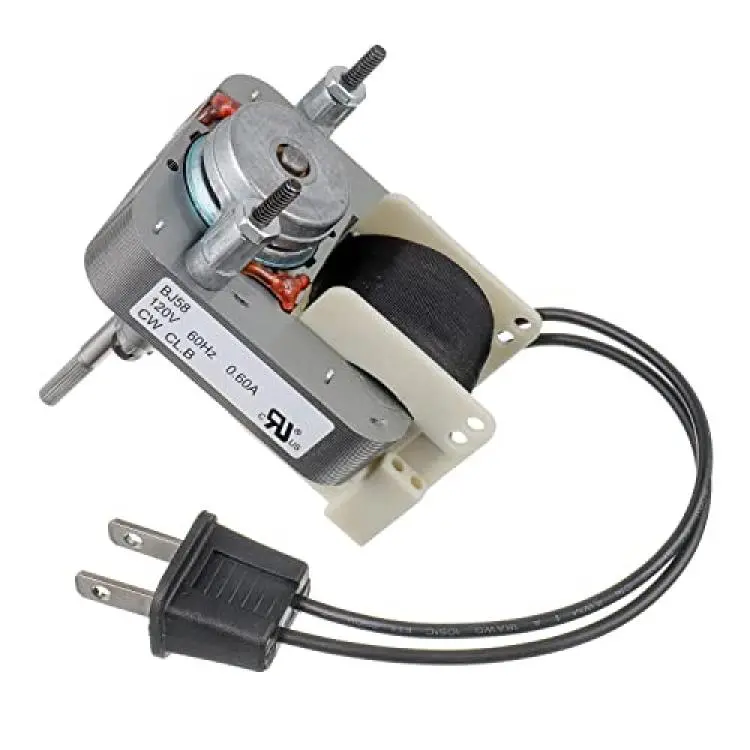

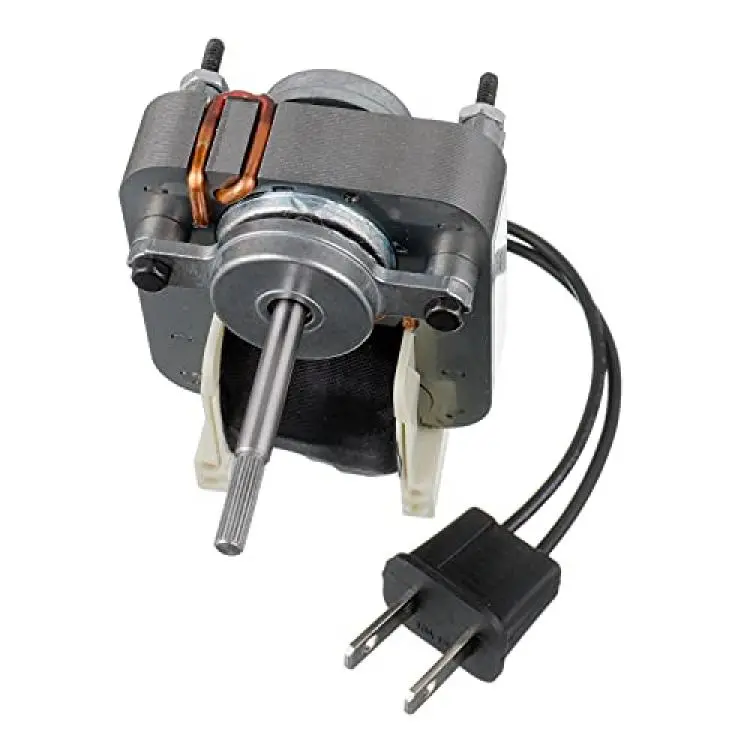

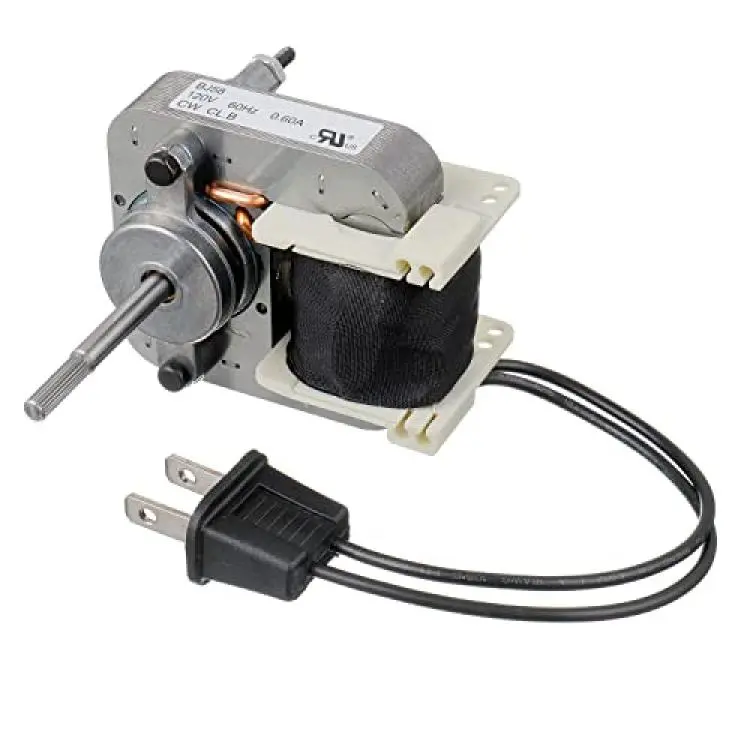

BOJACK Universal Bathroom Vent Fan Motor

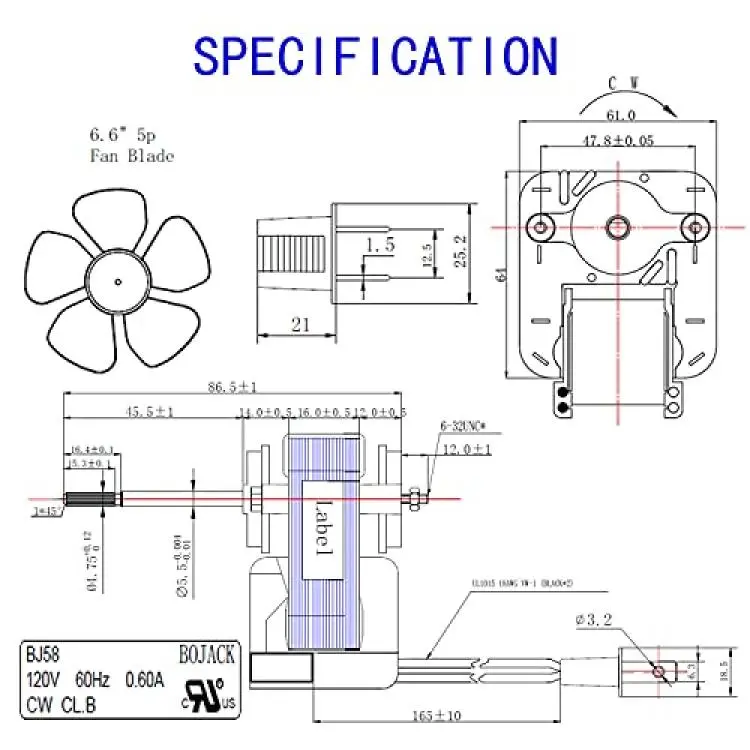

Electric Specification:
0.60 amp, 3500 rpm, 120 volt, 60 Hz,30 W
wire length = 6.496" with 2-prong plug
Mounting studs 1-7/8" on center
Direction of rotation: seeing from the shaft driving side, the motor rotates in CW(clockwise) when is powered on.
The axial gap: 0.118" -0.315"
Acceptance standard Rated voltage /frequency: AC 120V/60Hz
Insulation class: B
Temperature rise: ?85K,(120V/60Hz/1.06 times of voltage)
The inter-turn test: 1800V/1S, should no abnormal waveform
The dielectric strength:AC1800V/1mA/1S, should be no flashing or breakdown phenomenon;
No-load low voltage star-up: ?72V, load low voltage star-up: ?90V.
This is a Electric Motors Replacement Kit with Fan, 120V Fan kit is designed to replace most repair projects.
Continuous duty, Air Over.

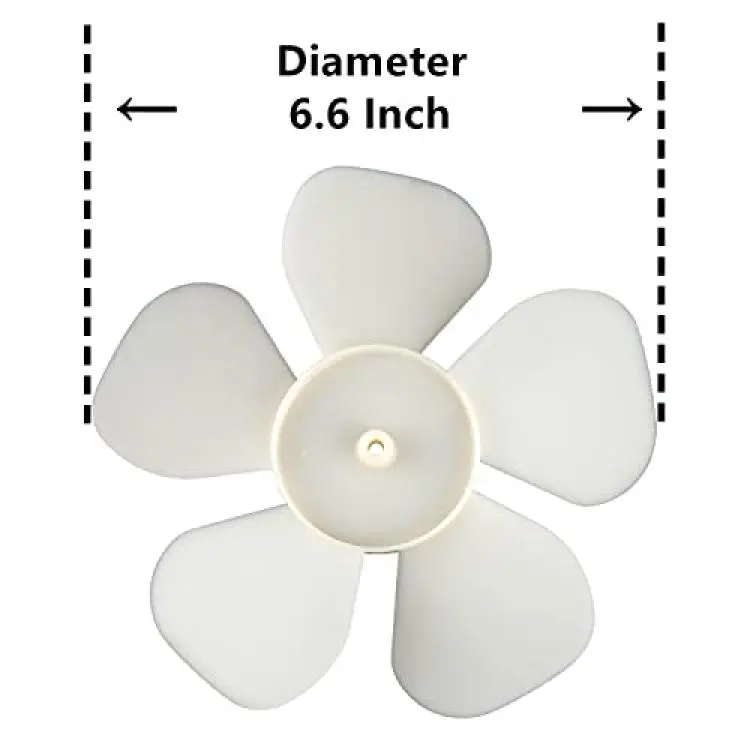

Kit contains Motor, 1 fan = 6.6"(flat/paddle style).
Replacement for motors 686,687,8870,M686.
Packing includes:
1 x Bathroom motor
1 x Bathroom fan
