MARKGOO 67F-W0078-00-00 Water Pump Impeller Repair Kit for Yamaha Outboard 4 stroke 75 80 90 100 HP F75 F80 F90 F100 Boat Motor Engine Rebuild Service Parts Replacement Sierra 18-3451 67FW00780000
Description
MARKGOO 67F-W0078-00-00 Water Pump Repair Kit Replacement for Yamaha Marine Outboard Engine 75/80/90/100 Horsepower 4 Stroke Boat Motor Rebuild Service Parts Sierra 18-3451 18-3409
The Part number is replaced by 67F-W0078-00 67FW007800.

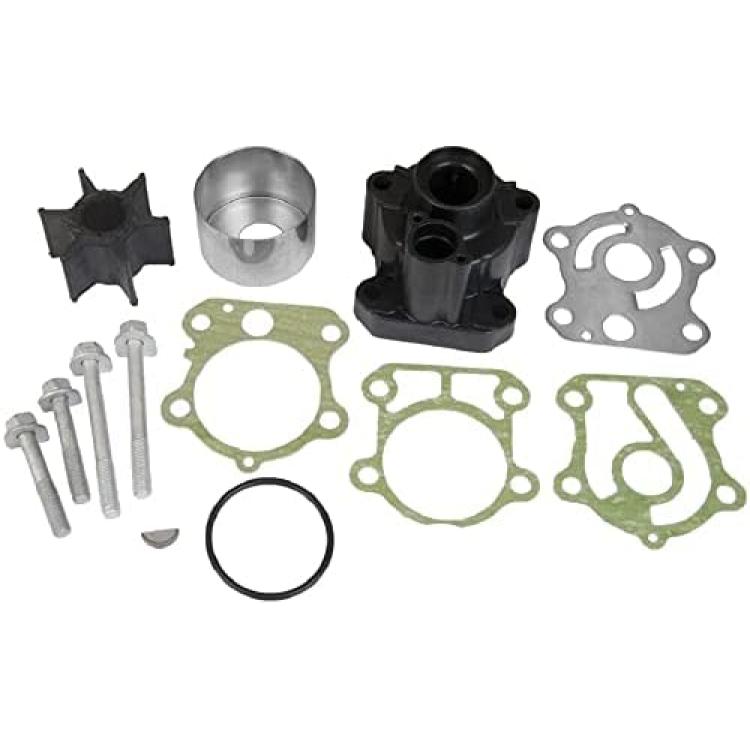

The water pump kit includes Water Pump Impeller, Drive Key, Gasket, Wear Plate, Cartridge Insert, O-ring, Bolts and washers.Â
It makes repair and maintenance of water pumps easy. Lubricate with silicone grease, glycerin or dish soap when installing (not included).
See your owner's manual for replacement schedule. See your service manual for installation instructions.
Materials: the strongest marine and chemical corrosion resistant metal alloy and scientifically engineered high performance neoprene rubber.
APPLICATION:Â This guide is for reference only.
4-Stroke:
Yamaha 75 HP F75A 2003-2017
Yamaha 80 HP F80 1999-2003
Yamaha 90 HP F90 2003-2011
Yamaha 90 HP F90A 2012-2017
Yamaha 100 HP F100Â 1999-2003Â Â
PACKAGE INCLUDED:
1X Water Pump Impeller 67F-44352-00-00
1X Woodruff Key Driveshaft 90280-04M04-00Â
1X Water Pump Gasket 688-44315-A0-00Â Â
1X Water Pump Gasket 688-44316-A0-00Â Â
1X Cartridge Gasket 688-44324-A0-00Â Â
1X Cartridge Insert 67F-44322-00-00Â Â
1X Cartridge Outer Plate 67F-44323-00-00Â
1X O-Ring 93210-46044-00
2X Bolt With Washer 90119-08M87-00Â Â
2X Bolt With Washer 90119-08M13-00Â Â
NOTE:
It is VERY IMPORTANT to check outboard model, serial number, year and horsepower before purchase. Ask us any questions if you are not sure, we are pleasure to help you.
