X AUTOHAUX Windshield Washer Pump Motor for SAAB 9-3 12826943 2004-2012

Description:

How to Replace FYI: 1. apply parking brake, turn the front wheel all the way to the left, turn off vehicle and remove keys from ignition 2. remove Phillips screws in wheel well lagging to get access to washer tank 3. took an old plastic cutting board (thin flexible plastic) and fold into a U shape and place under washer pump/tank area, other end in bucket. If the tank is not drained, all but an inch of fluid will drain out when you pull the pump. 4. disconnect electrical connector, tuck out of the way. 5. tilt pump forward to free it from the top clip and pull it upwards out of the tank. you may have to pull the grommet to remove; washer fluid from tank ran down through "U" catch and into bucket. 6. remove hose from old pump, snip off 1/4 inch of the end that is deformed and brittle and attached to new pump. 7. insert new pump into washer tank and wipe up any fluid drips on / around tank. 8. attach electrical connector 9. turned on car, test pump; turn off car, remove keys from ignition. 10. replace wheel well lagging and Phillips screws. 11. refill washer tank, clean up work area. Specification:

Package Included:

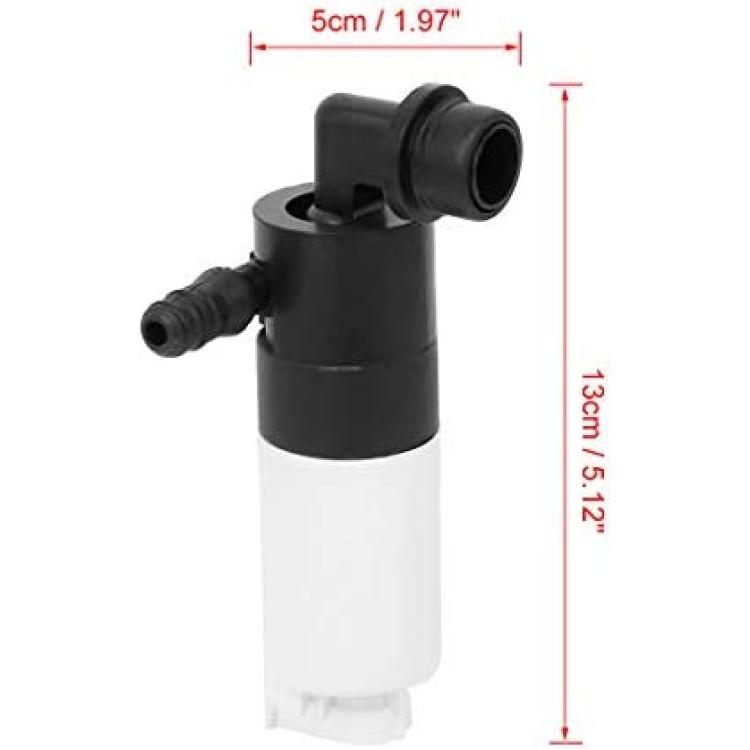

Fit the line to the washer nozzles (the discharge line).Great Replacement for Failed Pump - to give the needed power to bring the windshield fluid to the windowTo push fluid through the washer nozzle out onto your windshield to wash away the dirtThis is non-OEM product.Color: Black,WhiteMaterial: PlasticPart Number: 12826943Size: 13x5x6cm / 5.12"x1.97"x2.36"(L*W*H)Pin Number: 21 x Windscreen Washer Pump
