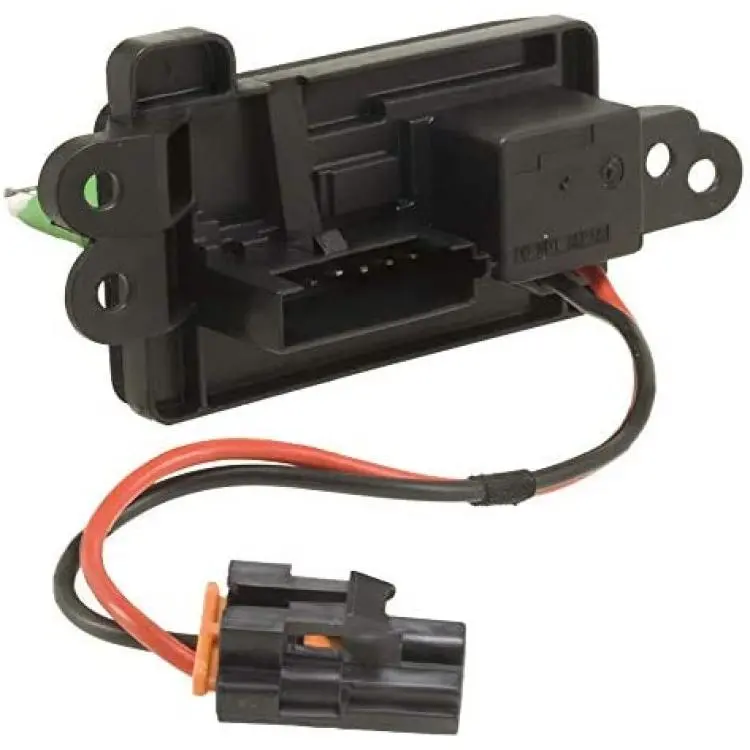

Manual Temp Control Blower Motor Resistor Compatible with Chevy 03-06 Avalanche Silverado Suburban 1500 2500 3500 - Sierra 1500 2500 3500 / Yukon XL 1500 973009 973405 15305077

Fits the following:

Fits the following:

This bulletin describes common blower motor resistor failures including inspection and testing to ensure proper operation

STETIG offers many aftermarket replacement electrical connectors. We receive numerous questions concerning proper wire orientation. On many of our aftermarket replacement electrical connectors the wire color will may not match the wire color of the connector it is taking the place of. The color of the wire and connector is irrelevant, but the gauge thickness is critical. A smaller gauge wire will not be able to handle the load that a larger gauge wire can and may lead to an overheat condition and possible fire. When installing a new connector, it must be wired in the same manner as the OE connector. To correctly install the new product, cut one wire at a time matching the new connector cavity to the old to ensure the proper circuits are being connected.

In cases that the old connector is damaged to the point that you cannot tell what cavity a certain terminal was originally installed, a factory service manual with connector views or schematics will need to be obtained.

For example, in the picture below the orange wire could be identified as the numbe-r one cavity and should match the location on the new electrical connector.To install the new connector, it is important to cut one wire at a time in a staggered length pattern. The staggered length pattern will allow the wire harness to lay flat and not have a mass of repairs in one area which will allow a cleaner looking repair and prevent possible interference with items around it.

Solder and shrink tube are the best repair choice, but a crimp style butt connector is an acceptable alternative when used with shrink tubing to protect the connection. A wire nut, blade style or scotch lock are never a recommended choice to make a clean permanent connection. Attaching the new connector to the old harness should be done by stripping the insulation away on both wires you will be connecting, this will allow you to use a solder iron and solder to permanently bond the two wires while making a lasting, low resistance connection. Shrink tubing over the newly bonded wires is required to prevent a short circuit and to prevent corrosion. Remember to install the shrink tube before the wires are soldered together.

Provider of HVAC Blower Motor Resistor products to the worldwide OEM market and aftermarket.STETIG offers complete HVAC Blower Motor Resistor coverage for Asian, Domestic and European vehicles,Top brand awareness and unsurpassed quality.2003-2006 Chevrolet Avalanche 15002003-2006 Chevrolet Avalanche 25002003-2006 Chevrolet Silverado 15002007-2007 Chevrolet Silverado 1500 Classic2003,2005-2006 Chevrolet Silverado 1500 HD2007-2007 Chevrolet Silverado 1500 HD Classic2003-2004 Chevrolet Silverado 25002003-2006 Chevrolet Silverado 2500 HD2007-2007 Chevrolet Silverado 2500 HD Classic2003-2006 Chevrolet Silverado 35002007-2007 Chevrolet Silverado 3500 Classic2003-2006 Chevrolet Suburban 15002003-2006 Chevrolet Suburban 25002003-2006 Chevrolet Tahoe2003-2006 GMC Sierra 15002007-2007 GMC Sierra 1500 Classic2003-2003 GMC Sierra 1500 HD2007-2007 GMC Sierra 1500 HD Classic2003-2004 GMC Sierra 25002003-2006 GMC Sierra 2500 HD2007-2007 GMC Sierra 2500 HD Classic2003-2006 GMC Sierra 35002007-2007 GMC Sierra 3500 Classic2003-2005 GMC Yukon2003-2006 GMC Yukon XL 1500
