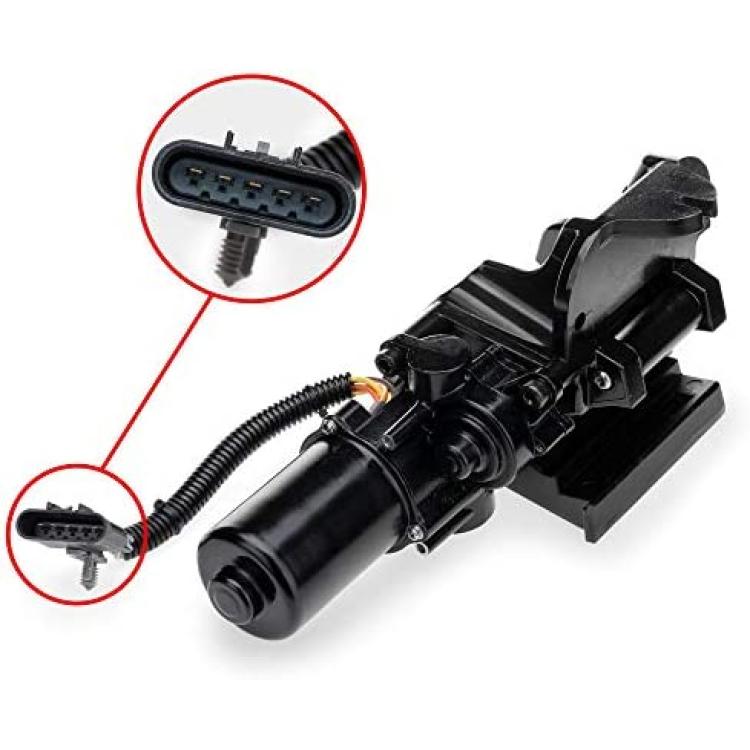

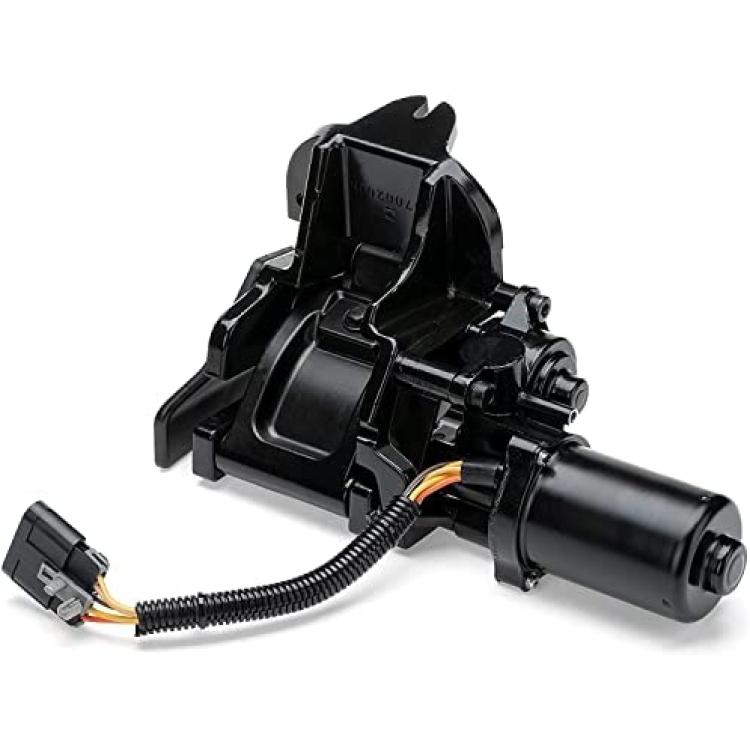

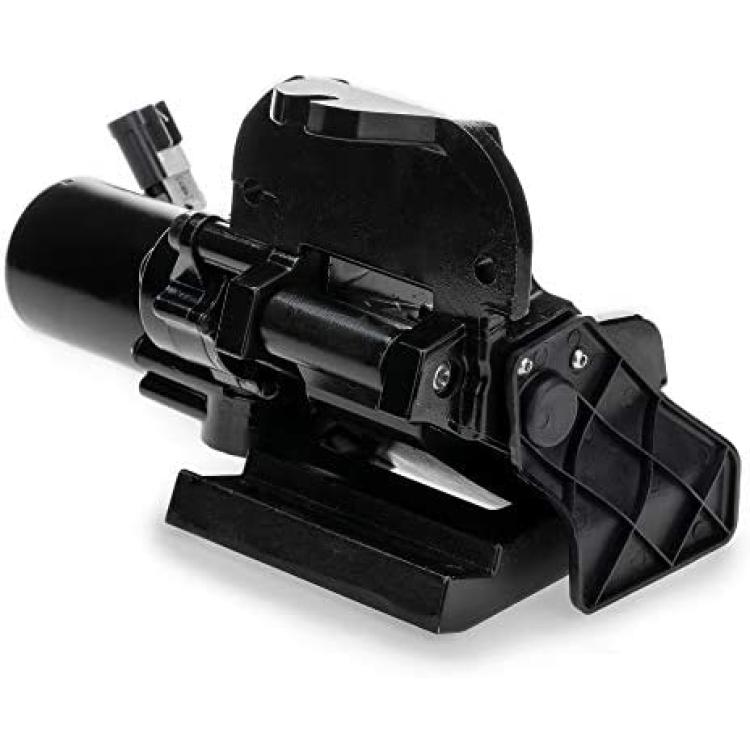

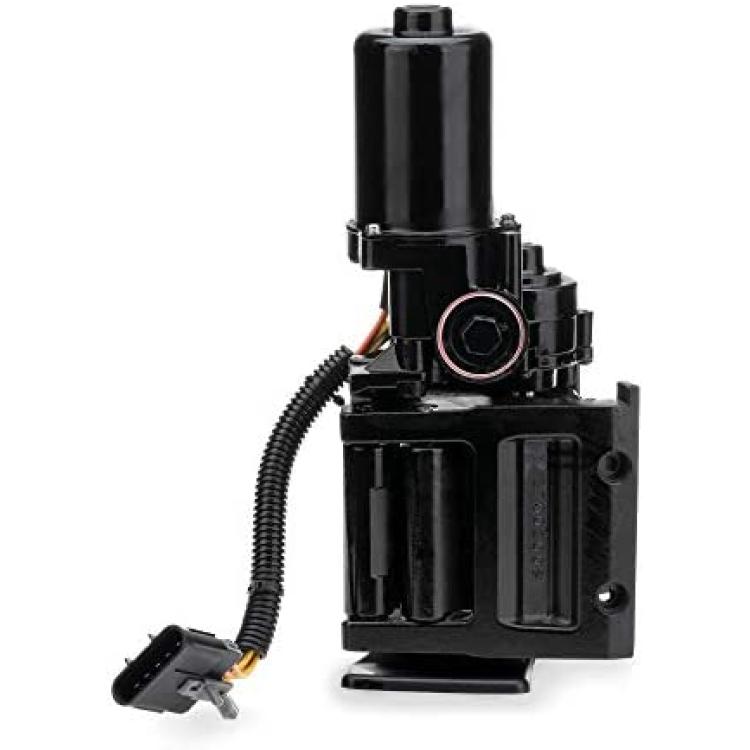

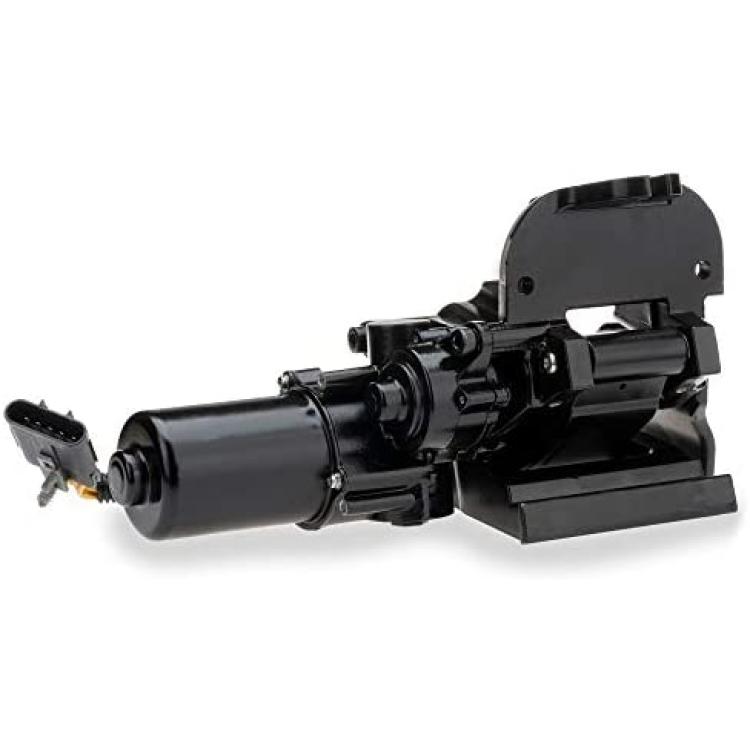

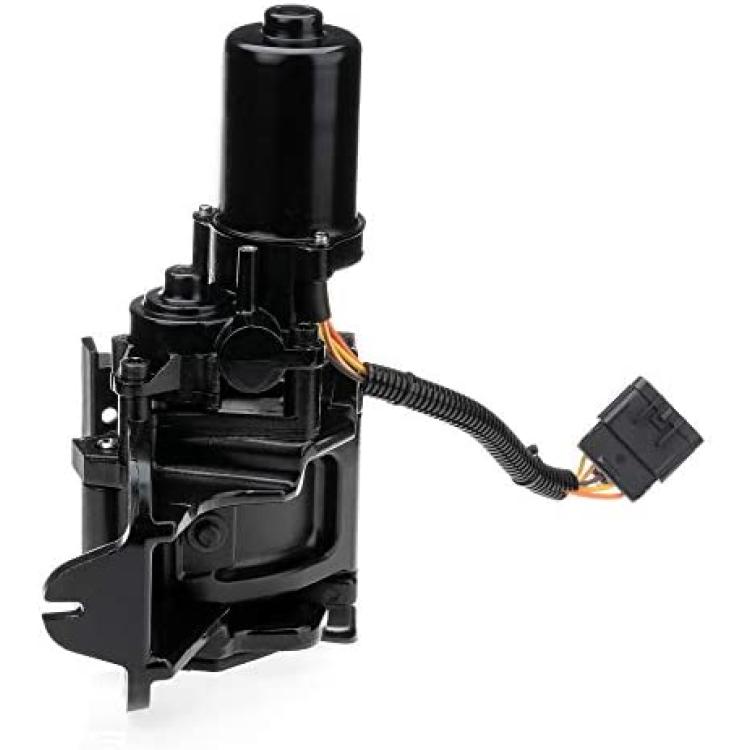

Power Running Board Motors Right Passenger Side Compatible with Cadillac Escalade, Chevy Avalanche, Tahoe, Chevy Suburban, GMC, Yukon 2007-2014 OE 19303236 25822018

11.If step 10 improves the operation of the hinges, possibly your motor is OK, and you can re-assemble your board and re-test. Otherwise, you need to replace the motor. 12.Re-assembly is simply the above procedure in reverse. Ensure that the running board is in the same position as when you started. Otherwise you may end up with the boards working in reverse - i.e. retracting instead of deploying, and deploying instead of retracting.

Compatible with Chevy Suburban 1500 2007-2014Compatible with Chevy Suburban 2500 2007-2014Compatible with Chevy Avalanche 2007-2013Compatible with Chevy Tahoe 2007-2014Compatible with GMC Yukon 2007-2014Compatible with GMC Yukon XL 1500 2007-2014Compatible with Cadillac Esealade ESV 2007-2014Compatible with Cadillac Esealade EXT 2007-2013 19303236 25822018 25971283 22778157 Disconnect the motor loom plug.Undo the four nuts and two bolts holding the two brackets.Remove the running board from the vehicle.Remove the plastic end shield.Remove the motor end cover - screws. Take care not to lose any shims.Spin the armature until it stops. Then you can see the wedge bolt.Remove the wedge bolt.Knock out aluminium wedge from the back.Note the orientation of the wedge, for re-assembly. Also note the position of the boards.Stand on the board and work the hinges back and forth, whilst liberally spaying all moving parts with penetrating lubricant, until moving freely.
