Electric Gear Motor, Walfront AC 220V 90W Single Phase Asynchronous Gear Motor High Torque Deceleration Adjustable Speed 5K/10K/20K/50K/100K RPM Optional(100k)
About this product
*►REDUCE SPEED & CREATES MORE FORCE -- Gear motors are primarily used to reduce speed in a series of gears, which in turn creates more moment of force.
*►REDUCE SPEED & CREATES MORE FORCE -- Gear motors are primarily used to reduce speed in a series of gears, which in turn creates more moment of force.
*►SINGLE PHASE ASYNCHRONOUS MOTOR -- AC 220V 90W high moment of force, reversible and adjustable speed. Product Type: Single phase asynchronous motor.
*►HIGH-TEMPERATURE RESISTANCE -- Small vibration, low noise, high quality motor, high-temperature resistance, high abrasion resistance, strong load capacity.
*►HIGH VELOCITY AND ENERGY SAVING -- High velocity and energy saving, superior performance. Sturdy and durable, effectively protect the gear box motor body.
Description
Features:
1. Gear motors are primarily used to reduce speed in a series of gears, which in turn creates more moment of force.
2. AC 220V 90W high moment of force, reversible and adjustable speed.
3. Small vibration, low noise, high quality motor.
4. High velocity and energy saving, superior performance.
5. Suitable for packaging industry, machine tool industry, transport equipment, textile machinery, automatic welding machine, automobile industry, elevator machinery, etc.
Specification:
Model: M590-502
Material: Metal
Weight: 5250g/185.2oz
Product Type: Single phase asynchronous motorÂ
Pole Number: 4 polesÂ
Rated Power: 90W
Rated Voltage: 220V AC 50/60HzÂ
Gear Reduction Ratio
(Optional)
5k RPM (r / min):280; Maximum Moment of Force (N.m):2.58
10K RPM (r / min):140; Maximum Moment of Force (N.m):5.16
20K RPM (r / min):70; Maximum Moment of Force (N.m):10.3
50K RPM (r / min):28; Maximum Moment of Force (N.m):20.0
100K RPM (r / min):14; Maximum Moment of Force (N.m):20.0
Package List:

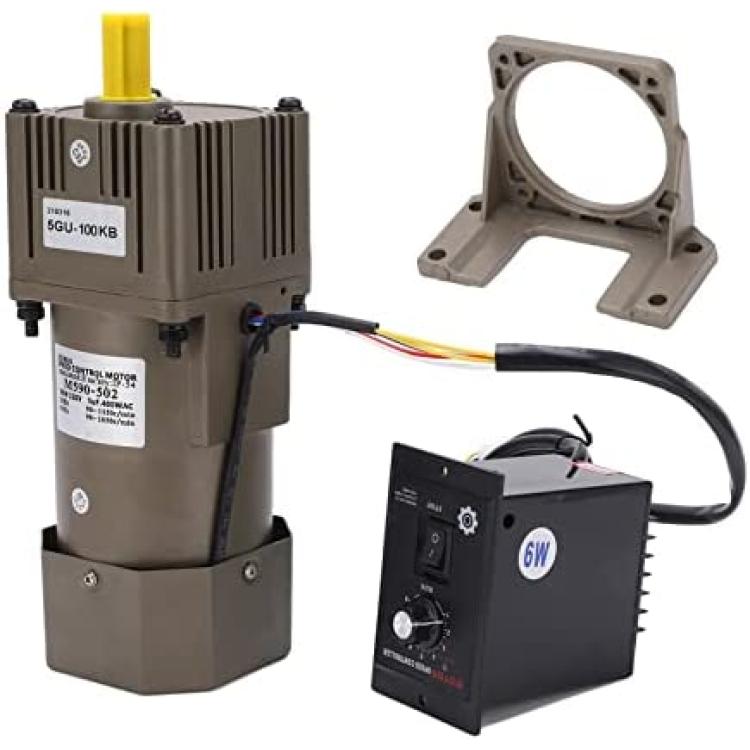

1 x 90W Retarding MachineÂ

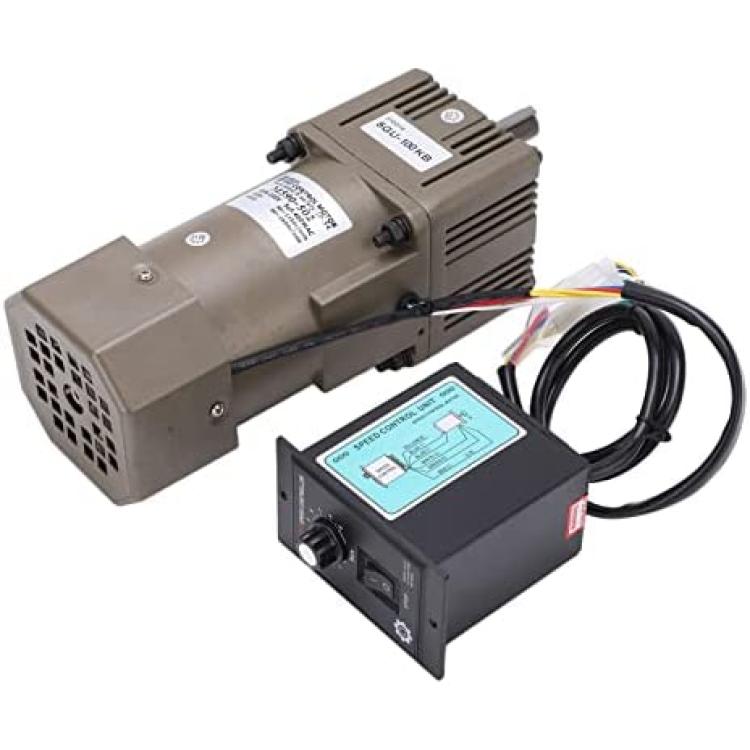

1 x Governor
