16 Inch 400MM Stroke Linear Motion Actuators (4 6 8 10 12 20 Optional) Electric Telescopic Rod DC 12V Motor 3.3MM/S 8000N 1700lb 800kg Load Heavy Duty for Automotive
Availability: In Stock
About this product

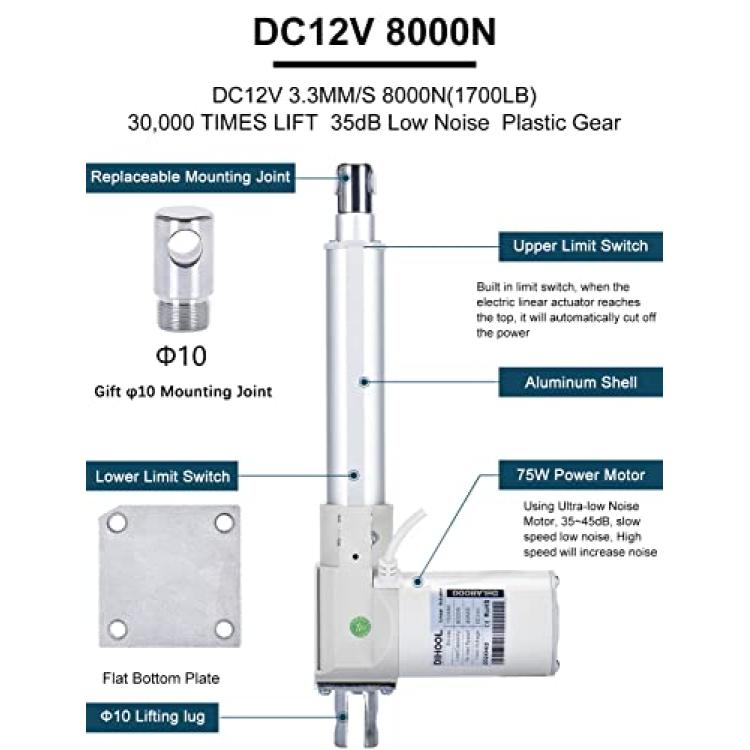

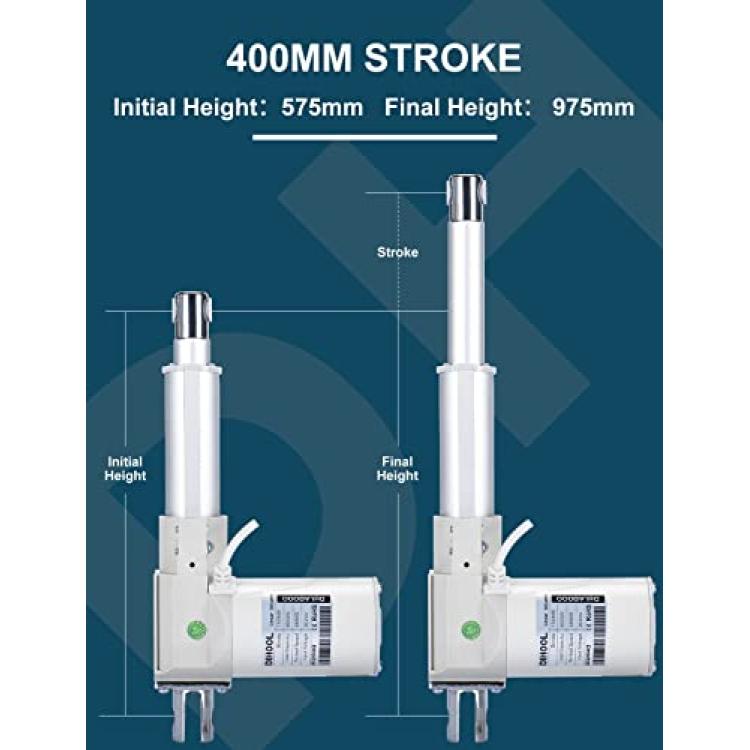

*Specification: Stroke length = 400mm(16"); Retracted length = 585mm(23"); Extended Length=985mm(38.78") ； Input: DC12V-7A; Maximum Load = 8000N(1700LB); Stable performance,with 3.3mm/s speed.DC 12V electric motor, this linear actuator can provide max.8000N pushing force and 8000N pulling force, and Self-locking force 8000N ,easily to lift up or down beds, industrial equipment.
*Material: High quality aluminum alloy material, sturdy enough and with fashion look, High performance motor ,Built-in high quality limit switch

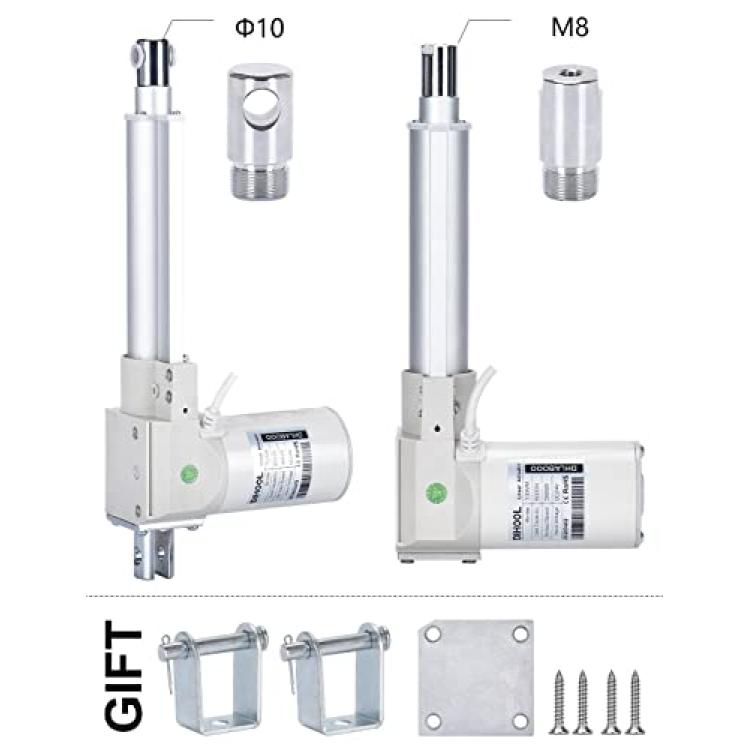

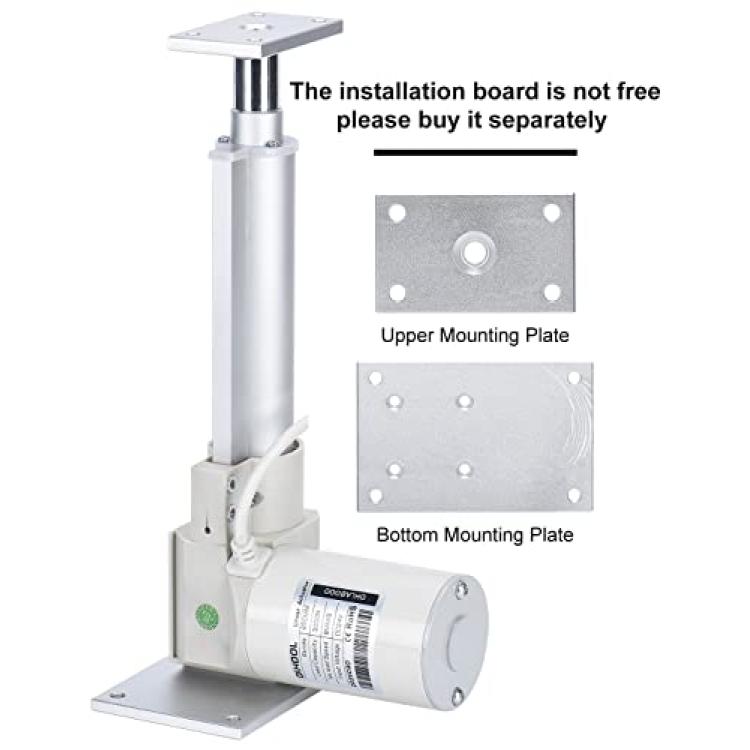

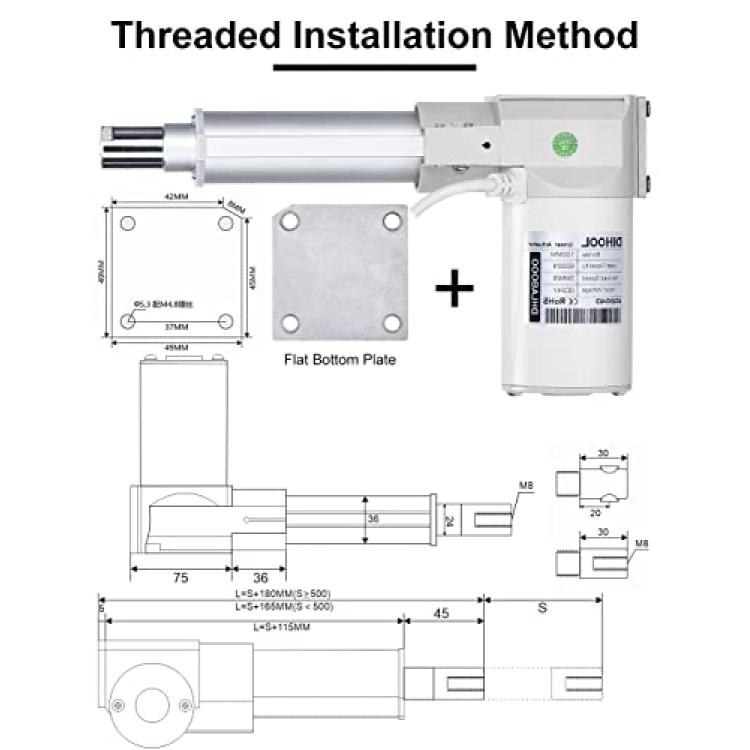

*Installation method,Two replaceable installation methods at top and bottom,apply to various scenarios.
*IP43 rated: (Indoor Use Only). Commonly Used In Automotive, Medical Devices and Engineering Industry, massage sofa, recliner, TV lifter, lifting table, electric window opener etc.
*Low noise: - This linear actuator works with Max.55db sound, quiet on working, not to create annoying sound.
Description
----- Product Description
DHLA8000 is an improved high-power electric linear actuator based on the DHLA6000 series. The maximum load is 8000N, and the self-locking load capacity can reach 800KG. The self-locking force of the DHLA6000 series is low, and the load force will be retracted after the upper and lower installations are powered off.
----- Technical Parameters
Input Voltage: 12V DC
Maximum Load: 8000N 1700lb
Maximum Current: DC12V 7A
Motor Power: 75W
Maximum Speed: 3.3MM/S
Stroke: 400MM 16inch
Protection Level: IP43
Working environment temperature: -10? to 55?
Color: Silver+White
Limit Switch: Built-in
Screw Type: T Type Screw Rod
Work Cycle: 10% Work System, Maximum 1 Hour Continue Working
Product Certification: CE
Mechanical Life: More than 30,000 times
Warranty: 12 Months
