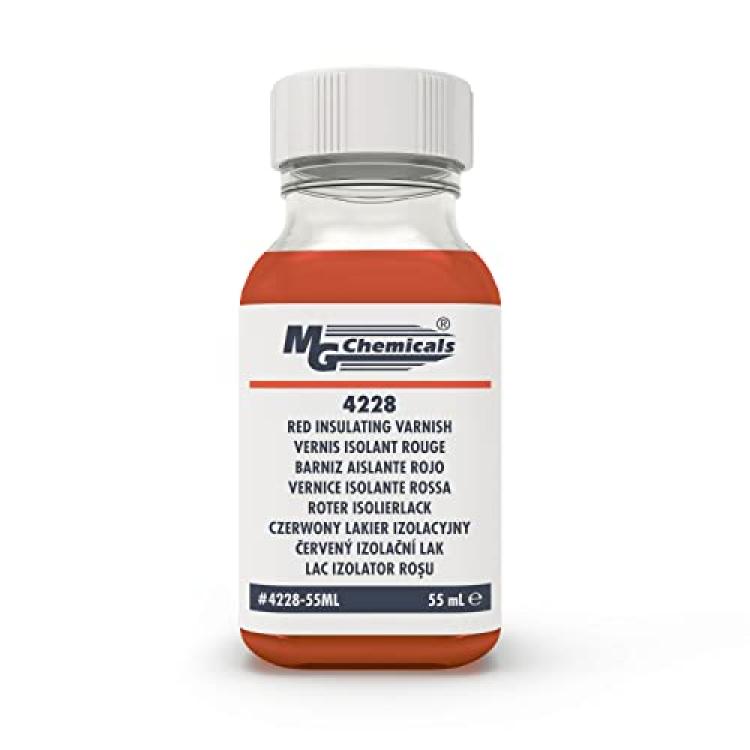

MG Chemicals 4228-55ML Red Insulating Varnish, 55 mL Bottle

MG Chemicals 4228-55ML Red Insulating Varnish, 55 mL Bottle

Name: MG Chemicals 4228-55ML Red Insulating Varnish, 55 mL Bottle
SKU: MM7520
Availability: InStock

Product Code: MM7520
Availability: Pre-Order, Inquiry Price

US$0.00

- +

For Bulk Order, Get Better Price.

About this product

*Protects and Insulates various electric parts against arc and corona

*Insulation Class H - Suitable for service up to 180 °C

*High dielectric strength - 3 000 V/mil (dry); 1 500 V/mil (wet)

*Excellent finish—tough, flexible, glossy, and durable red coat

*Good adhesion and good water and salt water resistance

Description

MG Chemicals 4228 Red GLPT insulating varnish. Protect motor windings, small dry type transformers, and coils from arcing, discharge and oxidation. Insulation Class H - Suitable for service up to 180 °C. High dielectric strength. High gloss. Dielectric strength (dry): 3000 V/mil. Phase type: Liquid Modified Alkyds. Specific gravity: 1. 06+/- 0. 2 grams per milliliters or 8. 85+/- 0. 2 pounds per gallon. Flash point: 15 degree C/59 degree F. Thinner: Xylol. Viscosity: 40-55 seconds at 25 degree C. Gloss (60 degree ): 80+. Percent non volatile by weight: 51. 8 +/- 2. 0 percent. Percent non volatile by volume: 40. 8 +/- 2. 0 percent. Recommended dry film thickness: 1. 0 mil. Coverage at 1. 0 ml DFT: 655 square feet per gallon. Volatile organic compounds (VOC): 4. 28 pounds per gallon. Medral (1/2-inch and 1/4-inch): No cracking. Application: Spray or dip. Tack free time: 10 minutes at room temperature. Wet dielectric strength: 1500 V/mil at 1. 0 mil thickness

Tags: Insulating Varnish, Red Varnish, Electrical Insulation, MG Chemicals 4228, H Class Varnish, Motor Winding Insulation, Corona Protection, Dielectric Strength, Red Epoxy Varnish, Electronics Insulation
