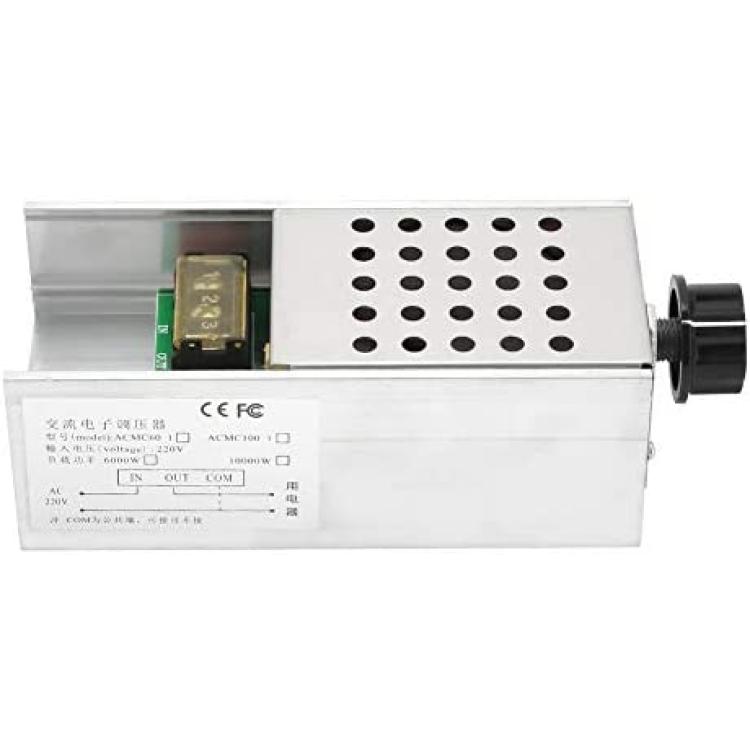

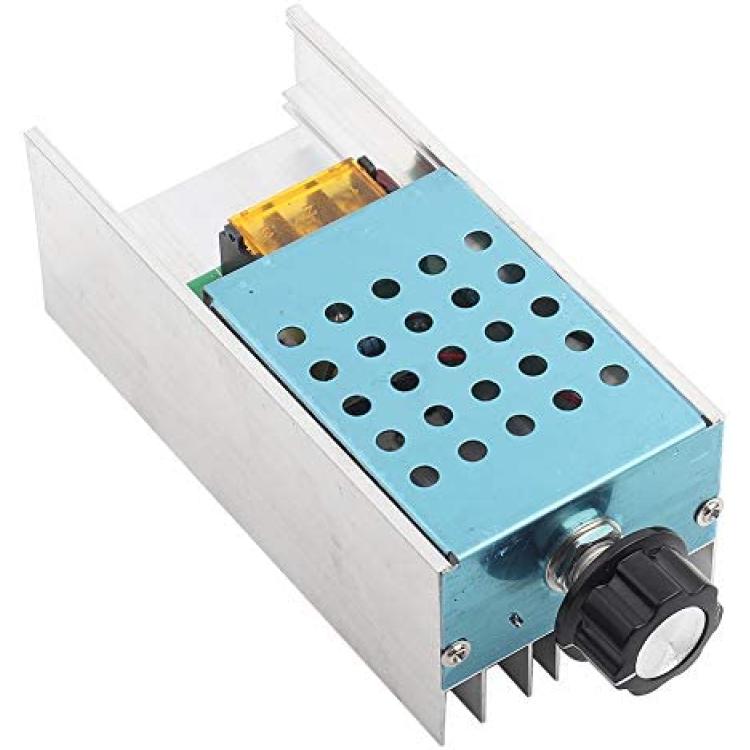

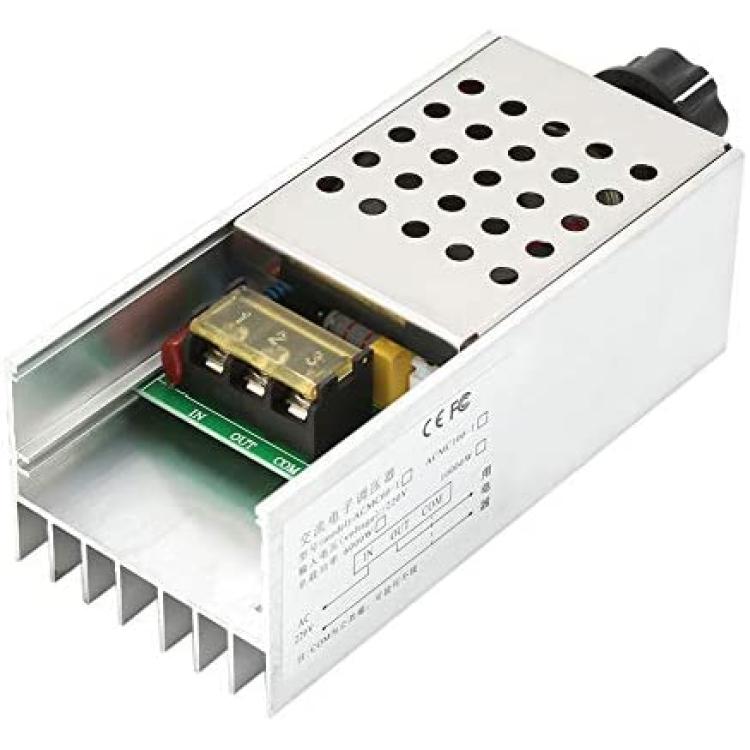

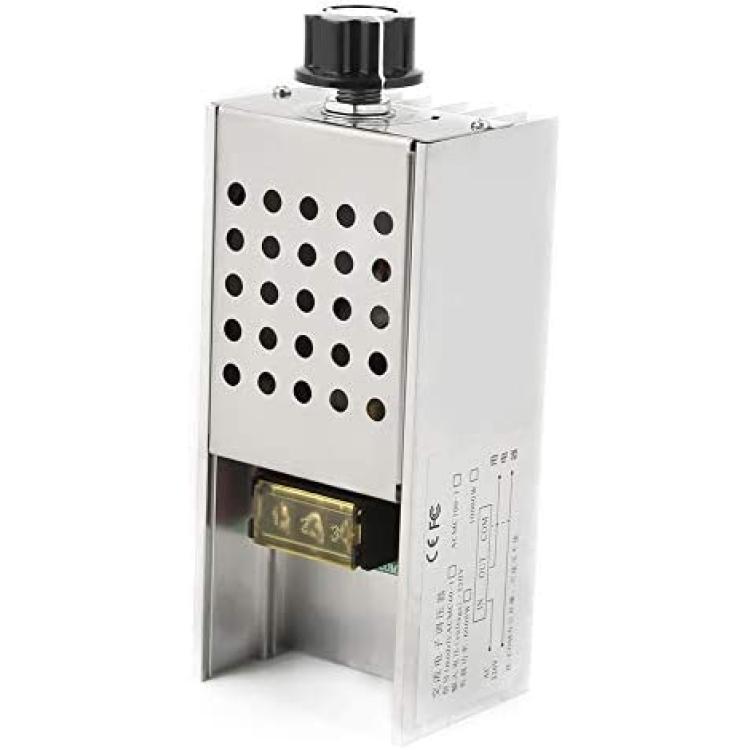

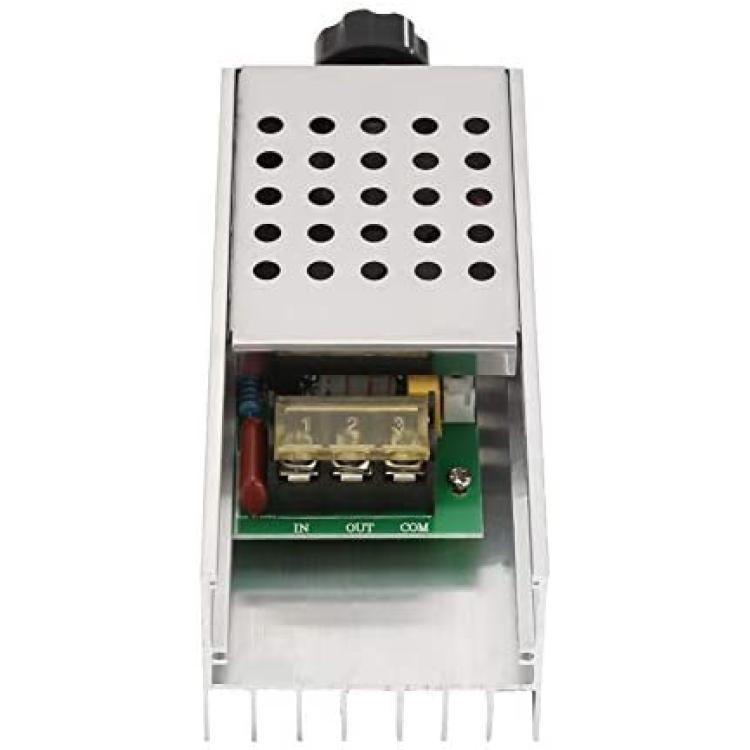

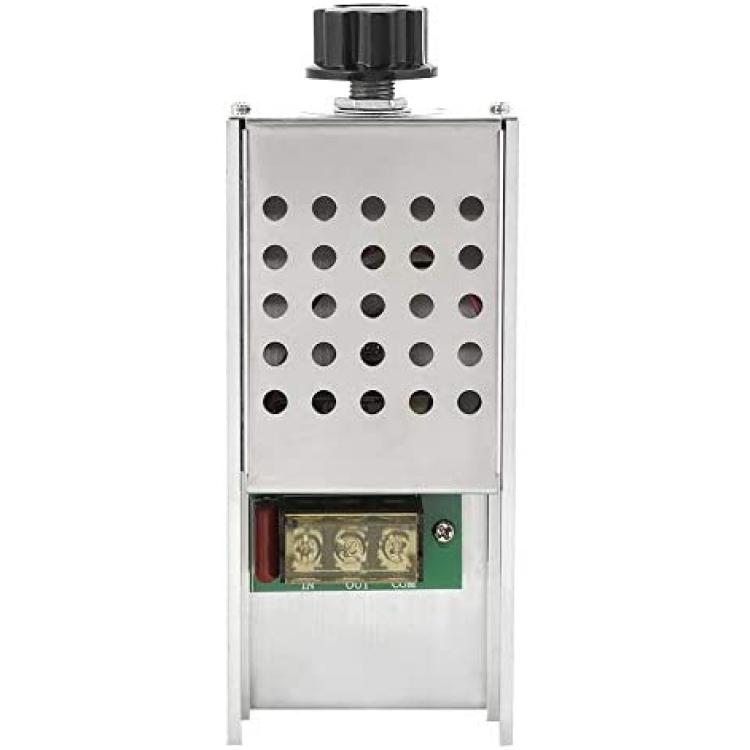

Yosoo Health Gear Motor Speed Controller, 6000W AC 220V SCR Electric Voltage Regulator Dimmer Voltage Controller, Heating Controller 6000w SCR
About this product
*[SCR Voltage Regulator]: This is an easy to use voltage regulator to control the brightness or speed of light
*[Better Heat Dissipation]: The voltage controller is designed with large heat sink for better heat dissipation
*[Speed Control Knob]: Practical to use, simple connection and rotary knob to control the voltage; The voltage regulator easy to use and no moving parts required
*[Working Performance]: The voltage regulator could control light brightness, speed, temperature, set the output voltage at will from 0-220V and power electrical equipment such as water heaters, lamps, small motors, irons, etc
*[Application]: Widely used for resistance load such as heating wire, filament lamp and most(not all) single-phase AC motors
Description
Features:
- This is a easy-to use voltage regulator for controlling light brightness, speed, temperature.
- Designed with large heat sink for better heat dissipation.
- Convenient to use, simple connection and rotate knob to control voltage.
- Widely used for resistance load such as heating wire, filament lamp and most(not all) single-phase AC motors.
Â
Specification:
SCR Model: BTA41600B
maximum. Power: 6000W (maximum. power for resistive load. For long time use, please keep it in 3000W)
Efficiency: >90%
Working Voltage: AC 220V
Adjusting Voltage: AC 0~220V (for resistive load, the voltage may not be 0V at first, you can turn it back to 0V)
Size: Approx. 130 x 60 x 47mm / 5.1 x 2.4 x 1.9in
Weight: 195g / 6.9oz (approx.)
Â
Package list:
1 x Voltage Controller
Â
Note:
Please connect to load first, then adjust voltage.
