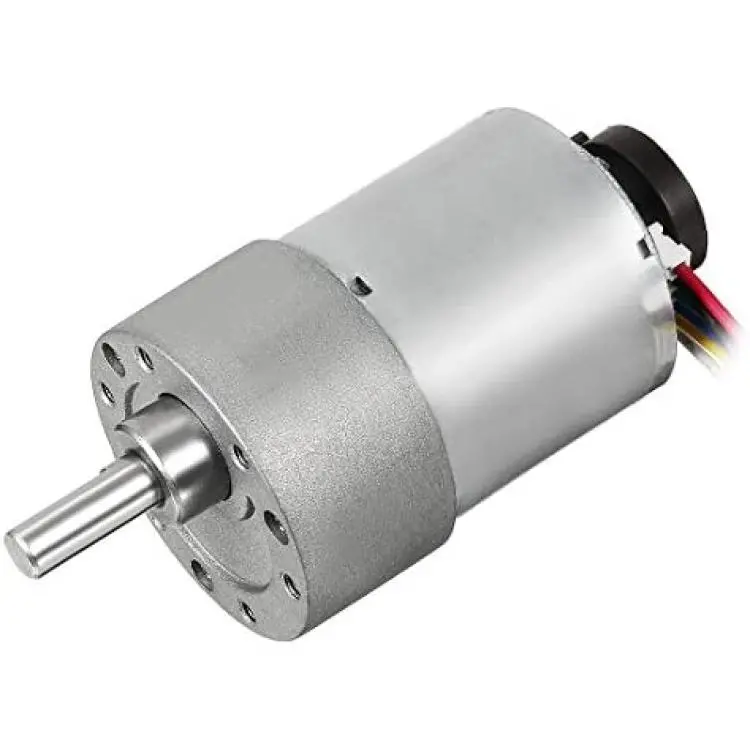

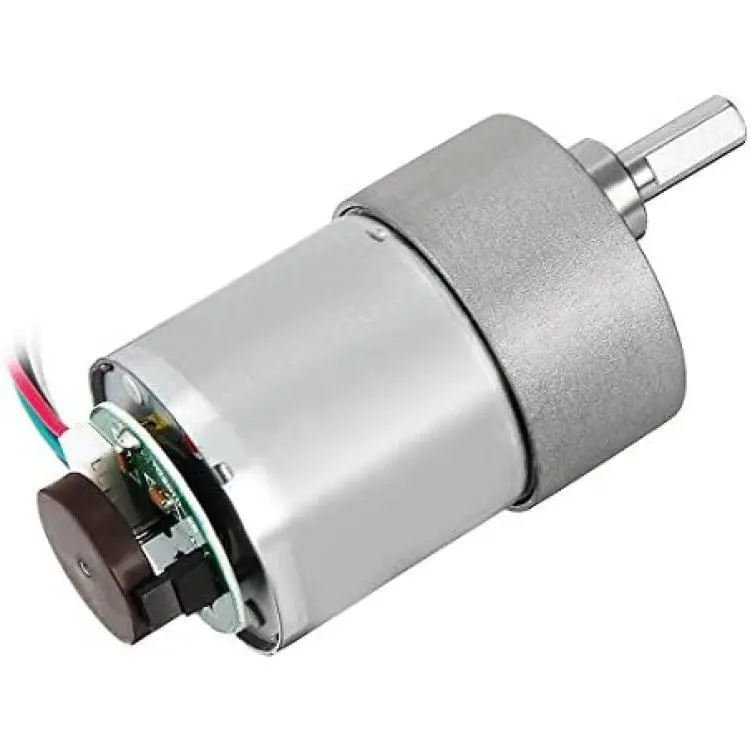

uxcell Gear Motor with Encoder DC 24V 530RPM Gear Ratio 18.8:1 D Shaft Metal Encoder Gear Motor Silver 37Dx52L mm for Robot RC Model DIY Engine
About this product
*Rated Voltage: 24V; Using Range: 6-24V; Speed: 530RPM
*Gearbox Size(D*L): 1.46x0.87inch; Motor Size(D*L): 1.36x1.18inch
*D-shape Shaft Size(D*L): 0.24x0.61inch; Mounting Hole Size: M3
*The encoder has 6 color-coded, 7.87" (20 cm) leads terminated by a 6 female header with a 0.1" pitch.
*Great for robot or other items which need to change directions.
Description
Specifications:
Material: Metal
Color: Silver
Rated Voltage: 24V
Voltage Range: 6-24V
No-load Speed: 530RPM
Load Spee: 430RPM
No-load Current: 90mA
Load Current: 480mA
Stall Current:2.5A
Torque: 3.2kg.cm
Reduction Ratio: 18.8:1

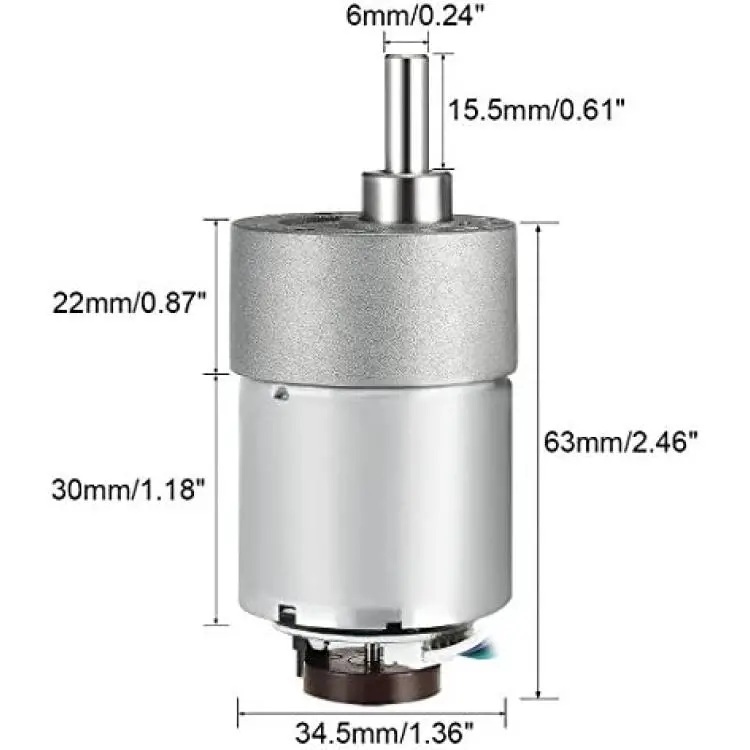

Gearbox Size(D*L): 37x22mm/1.46x0.87inch
Motor Size(D*L): 34.5x30mm/1.36x1.18inch
Shaft Size(D*L): 6x15.5mm/0.24x0.61inch
Encoder Cable Length: 20cm/7.87inch
Gross Weight: Approx. 190g
Features:

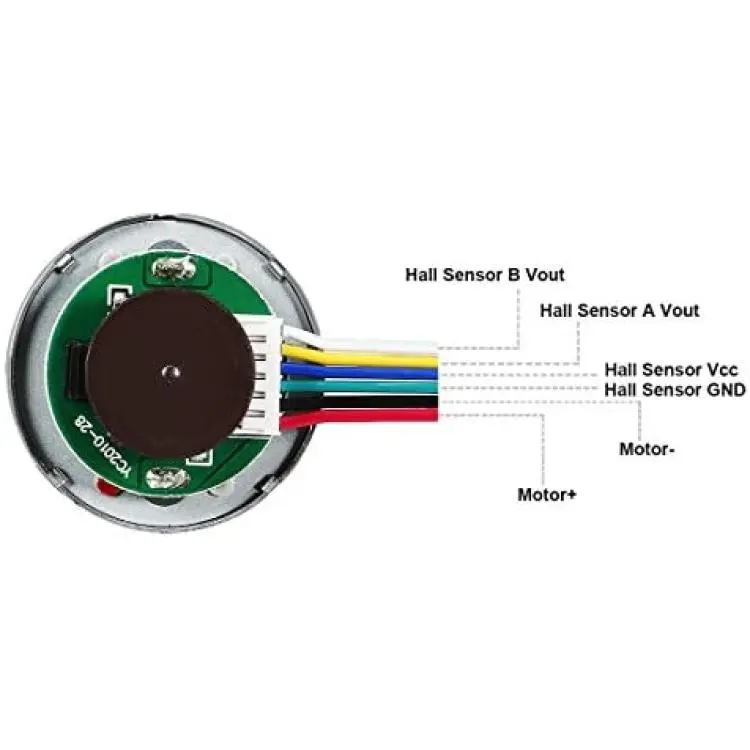

The encoder has 6 color-coded, 7.87" (20 cm) leads terminated by a 6 female header with a 0.1" pitch.
The A and B outputs of the hall sensor are square waves from 0 V to Vcc approximately 90° out of phase.
The face plate has 6 mounting holes evenly spaced around the outer edge threaded for M3 screws;
These mounting holes form a regular hexagon and the centers of neighboring holes are 15.5 mm apart.
Package Includes:
1 X DC 24V 530RPM Gear Motor with Encoder
