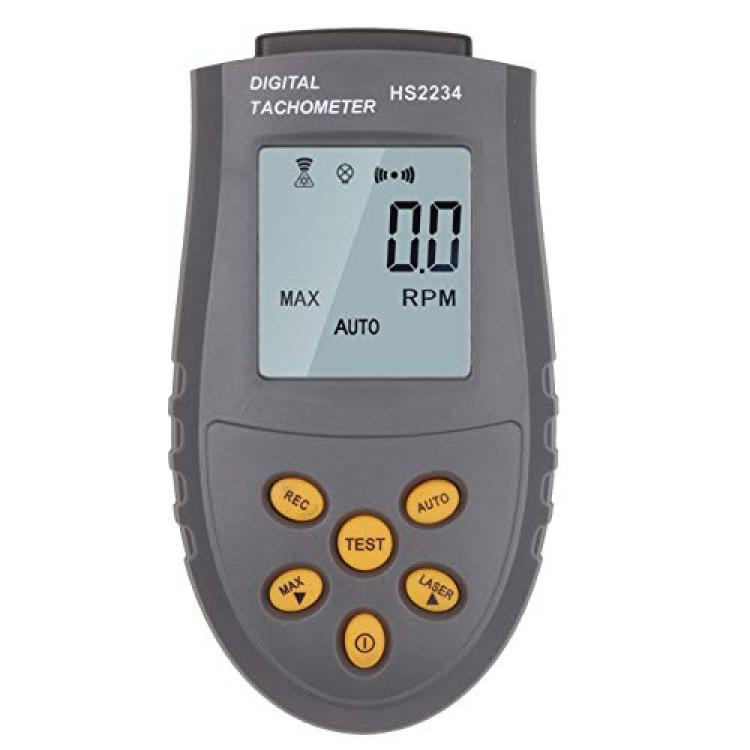

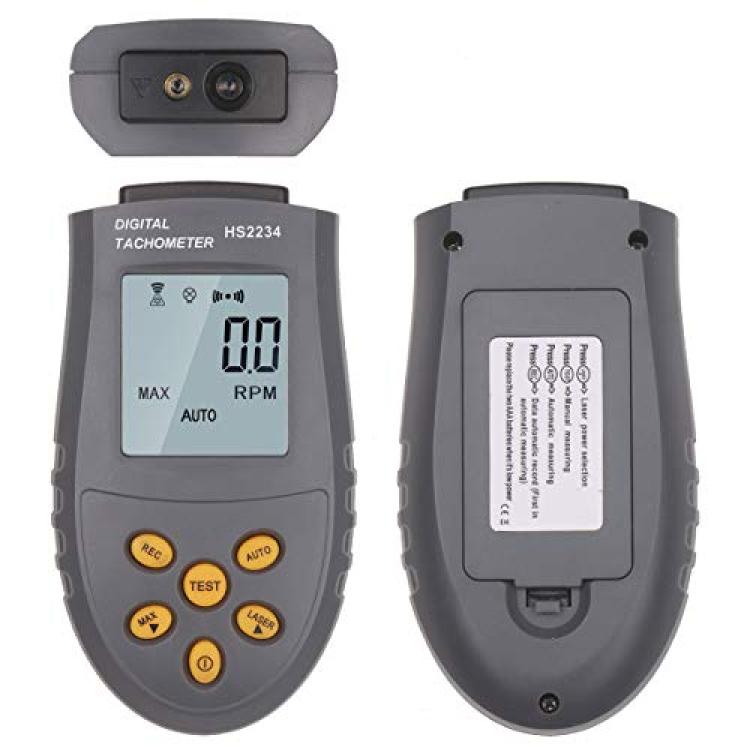

Geevorks Digital Tachometer, Photo Tachometer Non-Contact RPM Tach Manual/Automatic Measurement 2.5~99999RPM, Tachometer Gauge for Motor/Wheels/Lathe/Electrical Fan/Car
Share Facebook Twitter Pinterest Email

Geevorks Digital Tachometer, Photo Tachometer Non-Contact RPM Tach Manual/Automatic Measurement 2.5~99999RPM, Tachometer Gauge for Motor/Wheels/Lathe/Electrical Fan/Car

Product Code: MM7134
Availability: Pre-Order, Inquiry Price
US$0.00
- +

About this product

*Package Dimensions ‏ : ‎ 7.72 x 5.16 x 1.81 inches; 5.19 Ounces

*Date First Available ‏ : ‎ March 25, 2022

*Manufacturer ‏ : ‎ Geevorks

Description

Features:

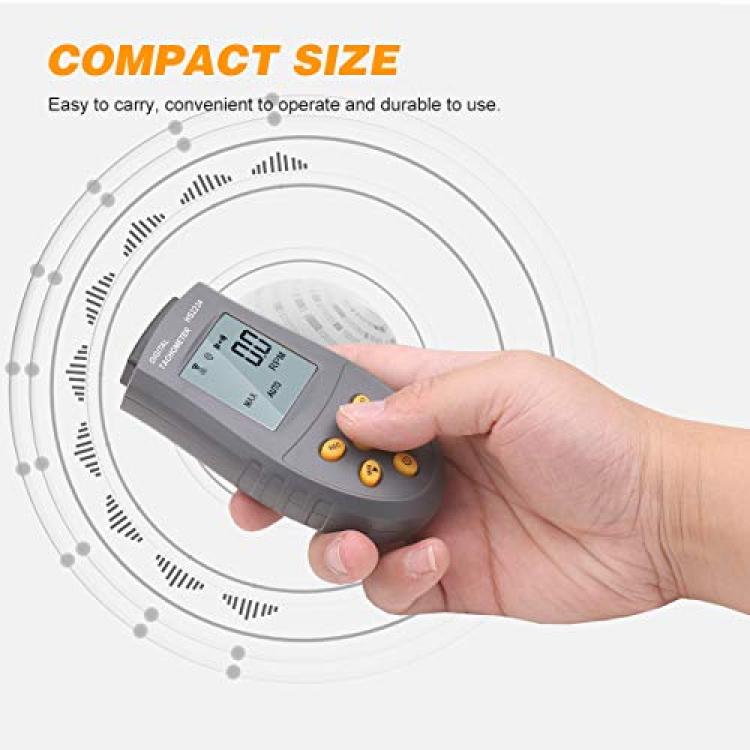

[Compact Size] Easy to carry, convenient to operate and durable to use.
[LCD Display] 5-digit LCD clear display with backlight, 99999 maximum reading, not dazzling in grey font, visible in low luminance environment.
[Non-contact Measurement] Based on embedded MCU, optoelectronic technology and semiconductor technology, this tachometer realizes accurate non-contact measurement.

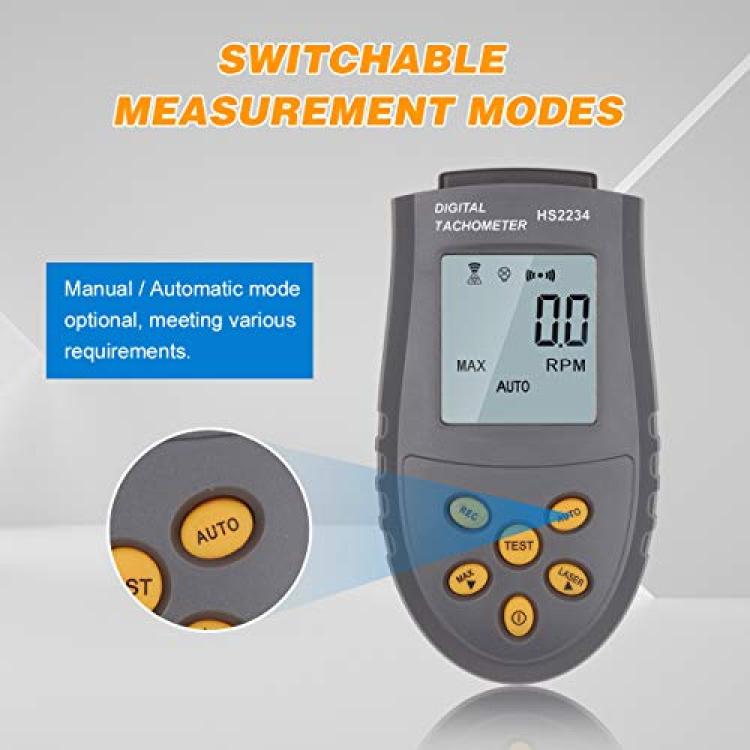

[Switchable Measurement Modes] Manual / Automatic mode optional, meeting various requirements.
[Automatic Record] Automatically recording 50 sets of data, and the sampling interval time could be reset to meet different needs.
[Automatic Shutdown] Automatic shutdown in 30 seconds without operation.

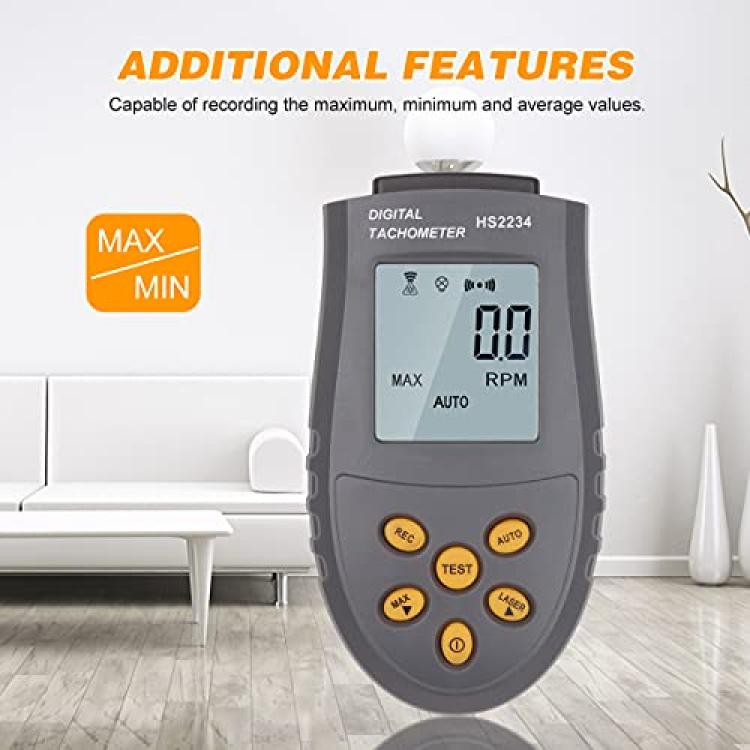

[Additional Features] Capable of recording the maximum, minimum and average values.

Specifications:
Material: ABS
Color: Grey
Power Supply: 2 * AAA battery (NOT included)
Power Consumption: 25mA (low power), 40mA (high power)
Operating Temperature: 0~50?
Storage Temperature: -20~60?
Display: 5-digit LCD, Max. 99999
Available Distance: 50mm~500mm
Sample Time: 0.5s (over 120RPM)
Measuring Range: 2.5RPM~99999RPM
Resolution: 0.1RPM (2.5RPM~999.9RPM), 1RPM (1000RPM~99999RPM)
Accuracy: ±0.05%rdg + 1digtal
Item Size: Approx. 11*6*2.5cm / 4.33*2.36*0.98in
Item Weight: Approx. 72g / 2.54oz
Package Size: Approx. 19.3*12.5*4.5cm / 7.6*4.92*1.77in
Package Weight: Approx. 143g / 5.04oz

Note:
Please read the Users Manual before use.

Packing List:
1 * Digital Tachometer
3 * Reflecting Tape Mark
1 * Users Manual(English)
