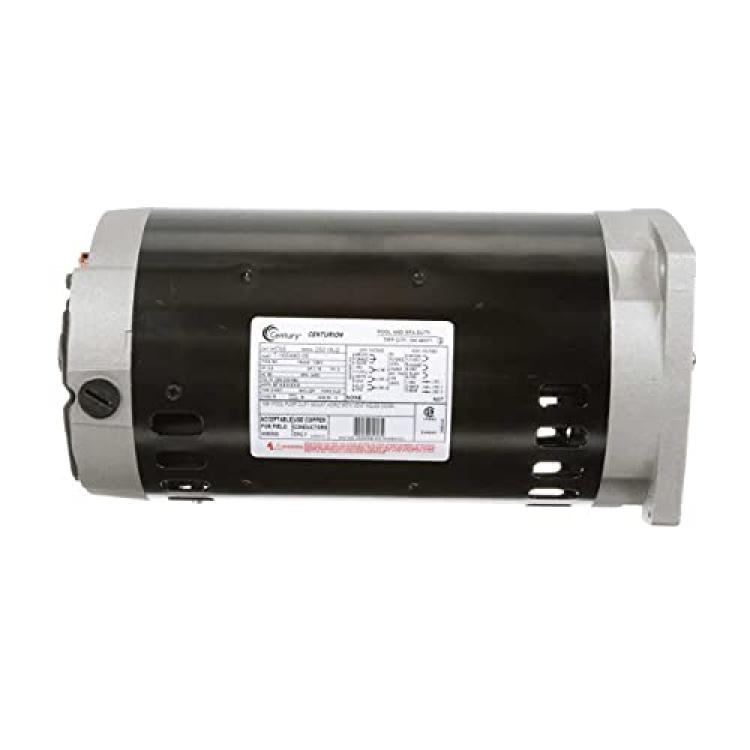

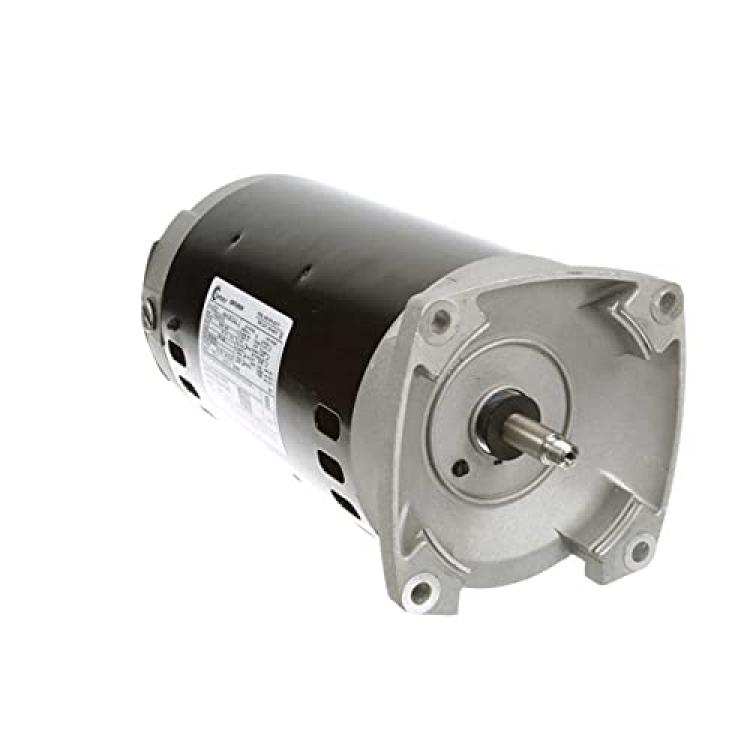

Pump Motor, 3 HP, 3450,208-230/460 V, 56Y

About this product

*Price For: Each Voltage Compatibility: 208, 230, 240, 460, 208-220/440, 208-230, 208-230/460, 208-240, 220/460, 220-230/460, 230/460 Hz: 60 Motor Design: 3-Phase HP: 3 Motor Efficiency Group: Standard Efficient Full Load Amps: 9.8-9.6/4.8 Item: Square Flange Pool Pump Motor Ins. Class: B Shaft Material: 303 Stainless Steel Phase: 3 RPM Range: 3001-3600 Shaft Dia.: 5/8"

*Motor Service Factor: 1.15 Max. Ambient Temp.: 50 Degrees C Standards: UL Recognized (E44549), CSA Certified (LR4642) Nameplate RPM: 3450 Frame: 56Y Motor Mounting Type: Face Motor Shaft Rotation: CW/CCW Design: Two Compartment Motor Enclosure Design: Open Dripproof Motor Sub Application: Pool and Spa Pump Shaft: Threaded 1/2-20 UNF-2A RH and 1/4-20 UNC-2B LH Motor Thermal Protection: None

*Voltage: 208-230/460 Motor Application: Pump Country of Origin (subject to change): Mexico
