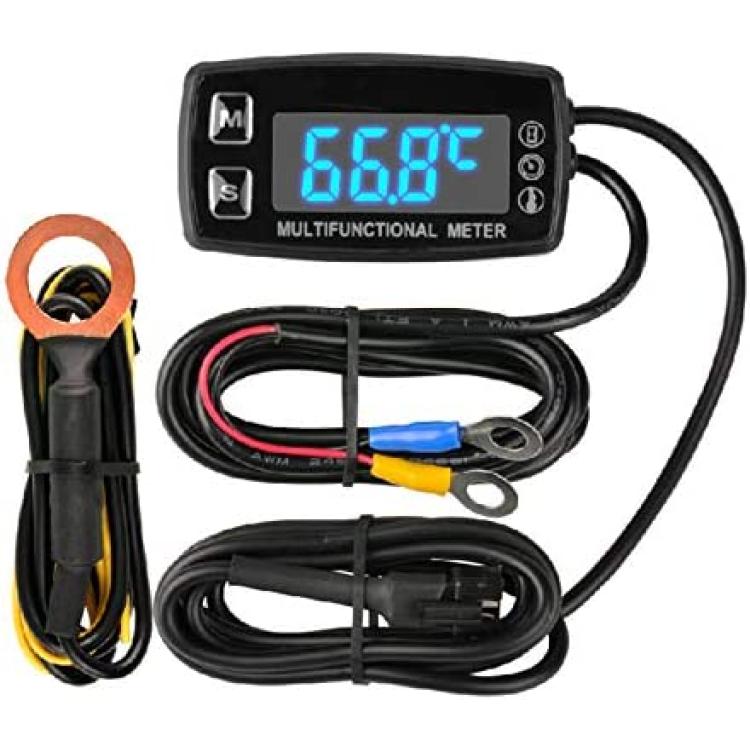

Runleader Digital LED Engine Hour Meter,RPM &Temperature Display,Maintenance Reminder,External Powered Operating for Lawn Mower Generator Dirtbike Paramotor Outboard Motor Marine Compressor
Share Facebook Twitter Pinterest Email

Runleader Digital LED Engine Hour Meter,RPM &Temperature Display,Maintenance Reminder,External Powered Operating for Lawn Mower Generator Dirtbike Paramotor Outboard Motor Marine Compressor

Brand: ‎Ningbo Jiangbei Run Leader Electronics Co., Ltd
Product Code: MM6533
Availability: Pre-Order, Inquiry Price
US$0.00
- +

About this product

*TACH/HOUR METER----It is a multifunctional meter include functions Engine temperature meter gauge,TOT hours,JOB timer,Maintenance service timer,Tachometer.

*TEMP METER GAUGE----Use the temperature sensor to measure engine real-time temperature value;Programmable over-temperature alert reminder;Maximum temperature value is viewable and resettable.

*HOUR MERER----TOT hours help you to track how many hours are the engine/machine working;TOT hours are non-resettable;JOB timer is used to measure the time of a particular work job such as change oil, it is resettable;Maintenance timer is countdown tracking, remind the arrived status by red light and waring icon.

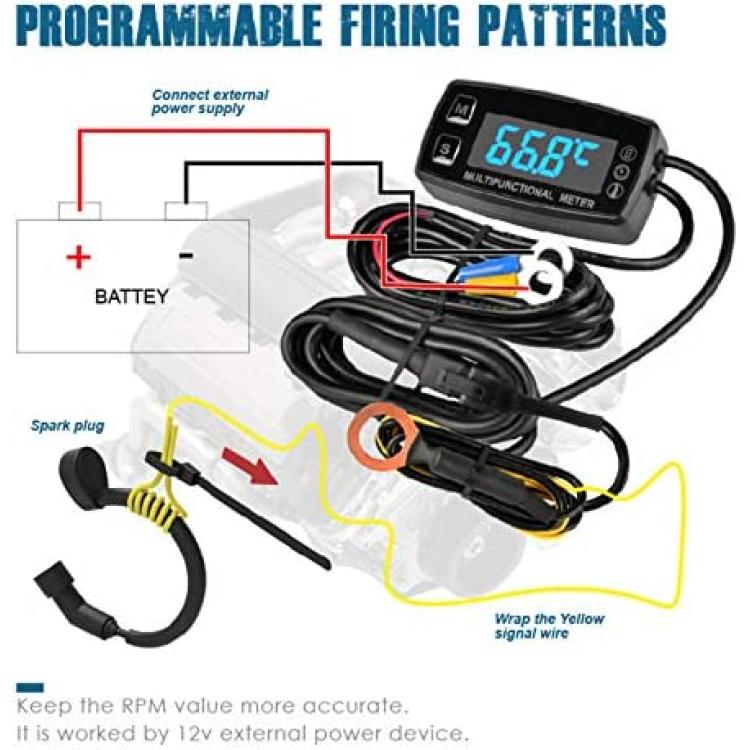

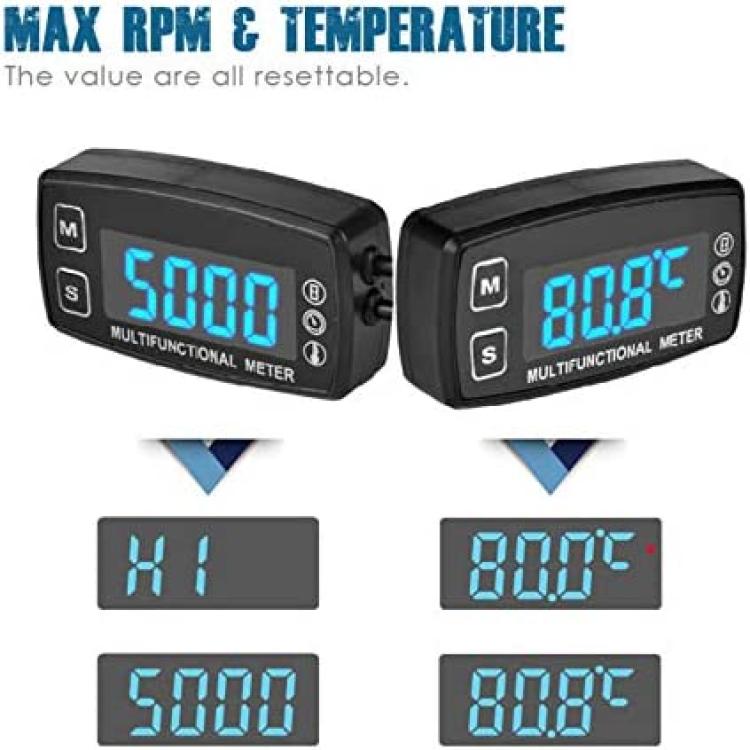

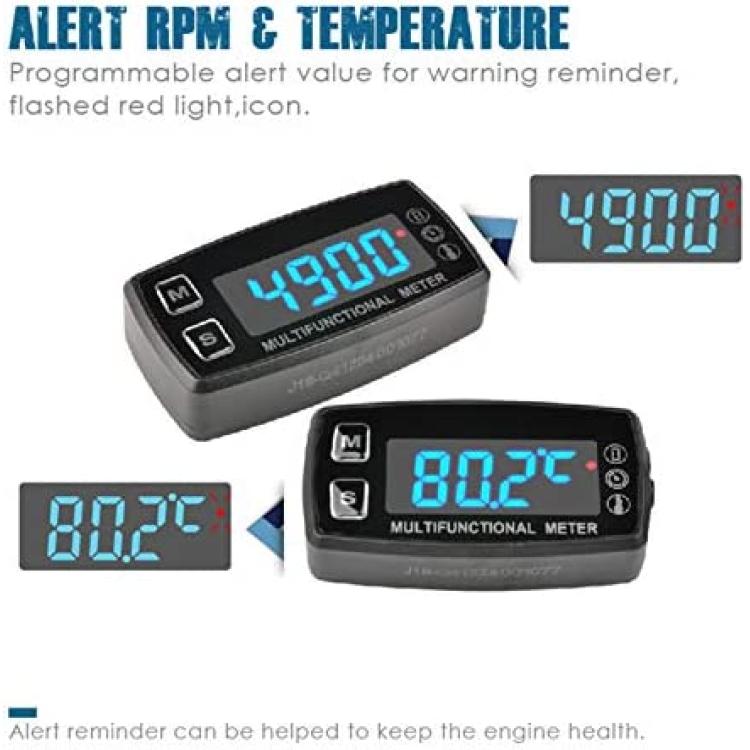

*TACHOMETER----Record the real-time RPM value when engine is on, help to adjust engine idle;Programmable engine firing patterns to keep the RPM value more accurate;Flashed red light & warning icon for Alert RPM;Recording and recall engine MAX RPM;

*OTHER ----Easy to install;Blue LED digits display;12V External power supply operation;Data retained when engine /machine shutdown;Waterproof rate: IP65; CE RoHS certification;2 years warranty.

Description

Runleader RL-HM035LT Digital LED Engine Hour Meter,RPM &Temperature Display,Maintenance Reminder,External Powered Operating,MAX RPM Recall,Different firing patterns programmed,Waterproof Design.

Product Features:

1 Temperature Meter Gauge---- Record the real-time temperature of engine

2 Hour Meter (TOT) Features---- Help to track how many hours are the engine working.

3 Service timers (SVC) Features---- Countdown tracking time, Maintenance Reminder, such as change air filter.

4 JOB timer (JOB) Features---- Used to measure the time of a particular work job,such as change oil.

5 Tachometer Features---- Display real-time RPM value, Alert RPM reminder and Max RPM recall.

6 Other Features

7 Works on:

Suitable for all types of gasoline engines:

? 2 Stroke 1 cylinder/2 stroke 2 cylinder/2 stroke 3 cylinder Gas engines.

? 4 stroke 1 cylinder/ 4 stroke 2 cylinder/4 stroke 3 cylinder/4 stroke 4 cylinder/4 stroke 5 cylinder/4 stroke 6 cylinder/4 stroke 8 cylinder/ 4 stroke 12 cylinder/4 stroke 16 cylinder Gas engines.

8 Applications:

This hour meter suitable for Outdoor Power Equipment,Generators,Agriculture,Construction Machinery,Vehicles,Boats etc... such as:Lawn Mower Garden Tractor Riding mower Leaf Blower Pressure washer chainsaw Snowblower Brush Mower Line Trimmer string trimmer Pressure Washer Portable inverter generator Motorcycle Dirtbike ATV UTV Scooter Paramotor Harley dual-sport bike Golf cart Outboard Jetski Pontoon boat Mercury Raceboat Hovercraft etc...

Connect with attached TS002 temperature sensor to measure the real-time value of engine/machine.Programmable over-temperature alert,remind by red light and flashed icon when exceed.Max temperature value is viewable and resettable.Temperature range: -40 to -+300 degree(-4 to -+572 Fahrenheit)When engine is off, display shows total run time of engine and remains visible.Total Hours reading displays from 0 to 19999 Hours,0.1H/1H precision.TOT hours are non-resettable.When TOT hours exceed 19999 hours,total running hours will be restared from 0.Programmable maintenance interval time from 0-1000 hours,default value 20 hours.Once maintenance time arrived, the service warning icon and red light will be flashed to remind.To operate related button, you can check the JOB timer easily.JOB timer read from 0 to 19999 hours.JOB timer is resettable.Record the real-time RPM value when engine is on.Various of engine firing patterns can be programmaed, keep the RPM more accurate.Tachometer displays from 0-19990RPM with 10 RPM resolution.Record and recall engine MAX RPM.Programmable RPM Alert, default value 8500RPM,range 1000-19900RPM,warning icon and red light will be flashed to remind engine RPM value exceed.Operate by external power device, data retained when engine/machine is off.LED Screen size 41mm×17mm with blue digits.Product dimension:69x37x18mmStandard inductive wire length is 1.1m+0.6m, functions are workable when the wire is shorten or extend.Easy to install, including Velcro,cable tie,Screws,Inductive wire, temp senor TS002, User manual.CE RoHS certification.Waterproof rate: IP65.
