Dasbecan LS Standalone Wiring Harness Compatible with 1999-2006 GM DBC LS1 Swap Vortec 4.8 5.3 6.0 Engine Stand Alone Wire Harness with 4L60E Drive by Cable, 60A Relay, EV1 Fuel Injector Connector
About this product
*Complete wiring harness kit for fuel injection system on GM 1999-2006 Vortec engines, includes a variety of connectors in the engine, and installation instructions are provided.
*Comaptible with: 1999-2006 GM LS1 Vortec Engine W/4L60E 4.8 5.3 6.0 DBC 4l60e, 4l80e ( Need to purchase 4L60E to 4L80E adapter ).
*High quality: A grommet is installed on the wiring harness, including wires and the design of the sliding bellows sealing ring, improves the durability of the wiring harness and allows professional leak proof installation!
*installation: please go for user’s manual for more details. It included many different wires and plugs, We suggest you have a professional to install, make sure its installed correctly.
Description
This harness is designed to be a complete wiring harness for fuel injection system on GM 1999 and 2006 Vortec engines with Drive by cable throttle body and 4l60e transmissions or 4l80e transmissions. ( if your car engine with bl80e transmissions, you need to purchase 4L60E to 4L80E adapter, Purchase link we provide in product description)
The wiring harness is designed to mount under the dash or in the kick panel on the right side of the vehicle.
Compatibility:
GM LS1 Vortec 1999-2006 4.8 5.3 6.0 engine with 4l60e or 4l80e( with adapter)

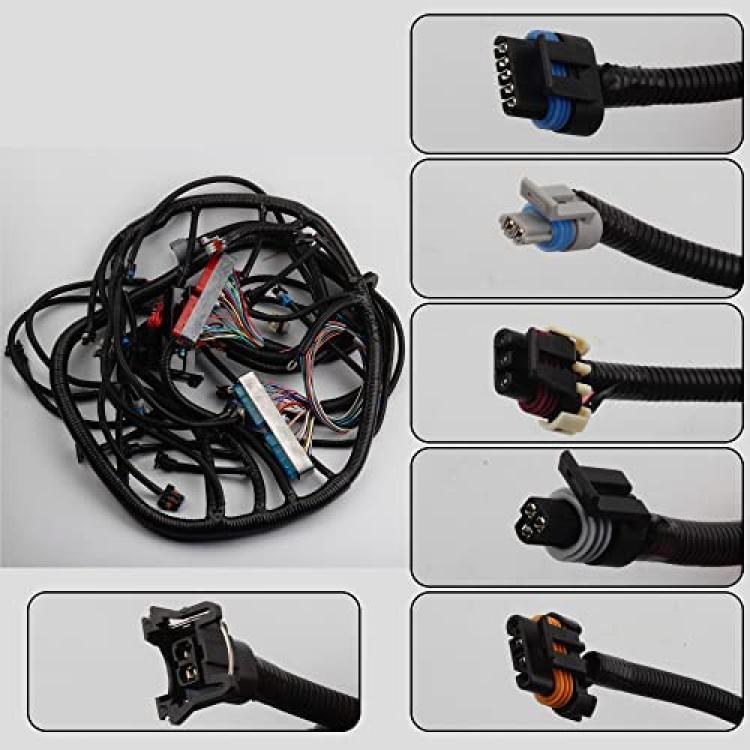

Connections Included in this Standalone Harness &Part Number:
Package list:
Tools Required:
Requirements:
Main Computer(RED/BLUE PCM): GM 9354896, 12200411Manifold Absolute Pressure(MAP): GM 16212460, DELCO 12614970Engine Coolant Temp Sensor(ECT): GM 15326388, DELCO 213-953Oil Pressure Sensor: GM 12562267Ignition Coil: GM 12558948, TSP 81015-8Oxygen Sensor(O2): GM 25161131, DELCO AFS123Throttle Position Sensor(TPS): GM 17123852, DELCO 213-912Mass Air Flow Sensor(MAF): GM 25168491, DELCO # 213-3641 x Engine Wiring Harness1 x Instruction ManualTerminal Crimping ToolWire StrippersElectric Drill2" Hole Saw (for rubber grommet for the firewall)All Vortec engines require VATS to be removed from the PCM.Vortec harness utilize two sensors on each side of the engine, one before and after the catalytic converter. The rear O2 sensors (after the catalytic converter) are NOT used.All Vortec engines utilize an EGR, Air Pump, and CCP features for emission control, this harness doesnt include provisions for EGR, Air Pump, and CCP are not necessary for engine operation. PCM programing may be necessary to avoid storing a Diagnostic Trouble Codes (DTC) for the absence of emission equipment.When using 4L60E or 4L80E transmission you Must have a two-position brake switch. These are necessary to allow proper function of the TCC. The brake switch should be closed (not electronically connected) when brakes are not being applied and open (not electronically connected) when brakes are being applied. This is the opposite of a standard brake switch.
