Dynamic Torque Sensor,DYN-200 100N.M Power Torsion Speed Torque Rotating Sensor Measuring Instrument,Torque Power Tester for Motor Speed Measurement
Availability: Pre-Order, Inquiry Price
About this product
*【 COMES WITH DISPLAY】Can directly calculate the current power value.The sensor comes with display with a resolution of 128x64.
*【 HIGH ACCURACY】The accuracy achieves an accuracy of 1/1000 or more, and excellent zero-point stability.Non-contact, no maintenance, no wearing parts, no life limit.
*【SUPPORT】Support RS485 communication, support active upload protocol, communication rate up to 500 times per second .Support simultaneous output of transmission current and transmission voltage.

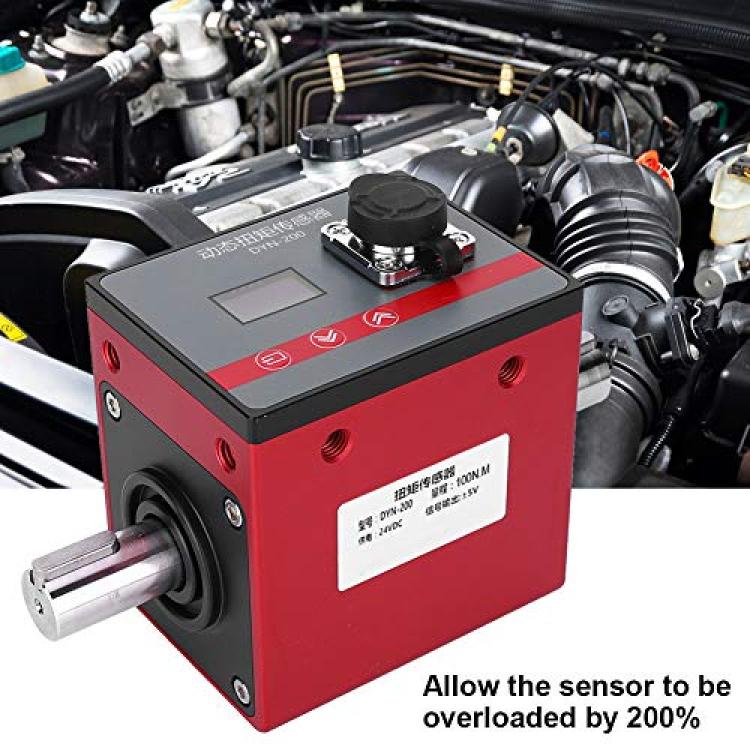

*【 OPERATIONS】Can perform simple calibration, clearing, filtering and other operations. Allow the sensor to be overloaded by 200%.
*【SUITABLE】Suitable for real-time display of the current measured torsion value and speed value.
Description

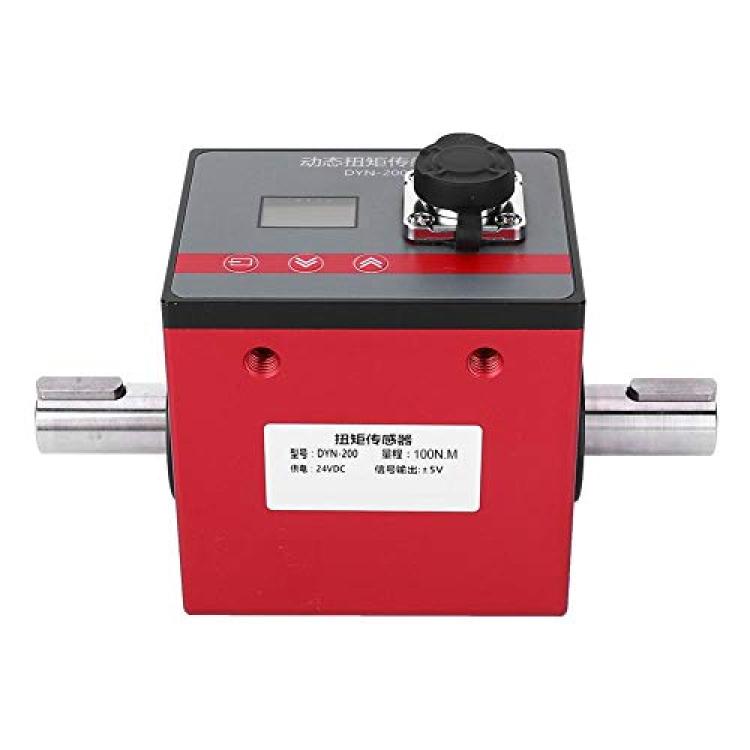

DYN-200 Dynamic Torque Sensor With Display,100N.m High Accuracy Power Torque Sensor, Torque Power Tester ,Motor Speed Measurement Tool,Directly Calculate The Current Power Value

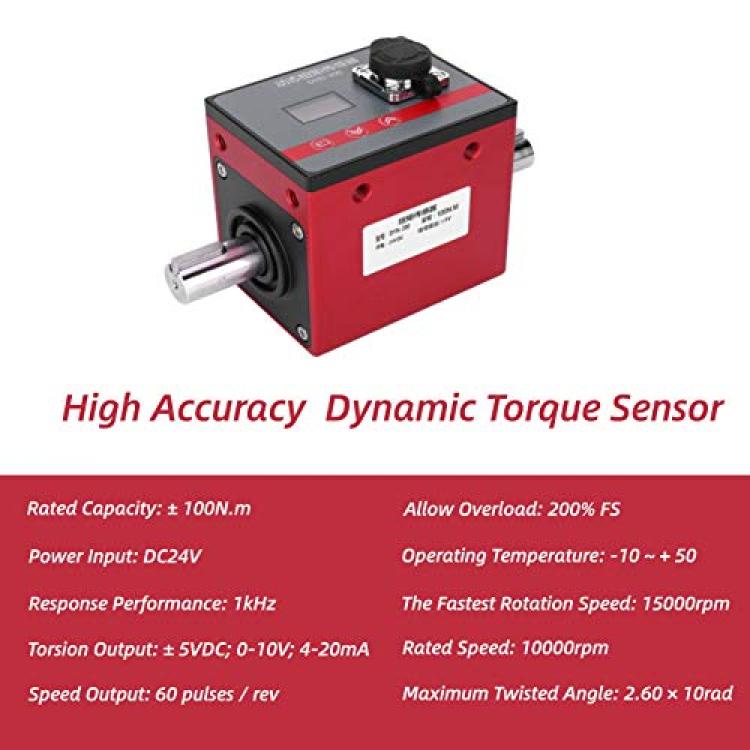

Specification:
Item Type: Dynamic Torsion Sensor
Rated Capacity: ± 100N.m
Power Input: DC24V
Current Consumption: Below 150mA
Torsion Output: ± 5VDC; 0-10V; 4-20mA
Speed Output: 60 pulses / rev
Response Performance: 1kHz
Load Resistance: 2k? or more
Signal Delay: 0.6ms (50% response)
Allow Overload: 200% FS
Operating Temperature Range: -10 ~ + 50 ?
Non-linearity: 0.1% FS
Repeatability: 0.03% FS
Lag: 0.03%
Temperature Effect Of Zero Point: 0.01% FS / C
Temperature Effect Of Output: 0.01% FS / C
Rated Speed: 10000rpm
The Fastest Rotation Speed: 15000rpm
Maximum Twisted Angle: 2.60 × 10rad (0.149 °)
Moment Of Inertia: 0.38kgcm
Vibration Natural Frequency (rotor Part): 19.4kHz
Torsion Constant: 3.85 × 10Nm / rad

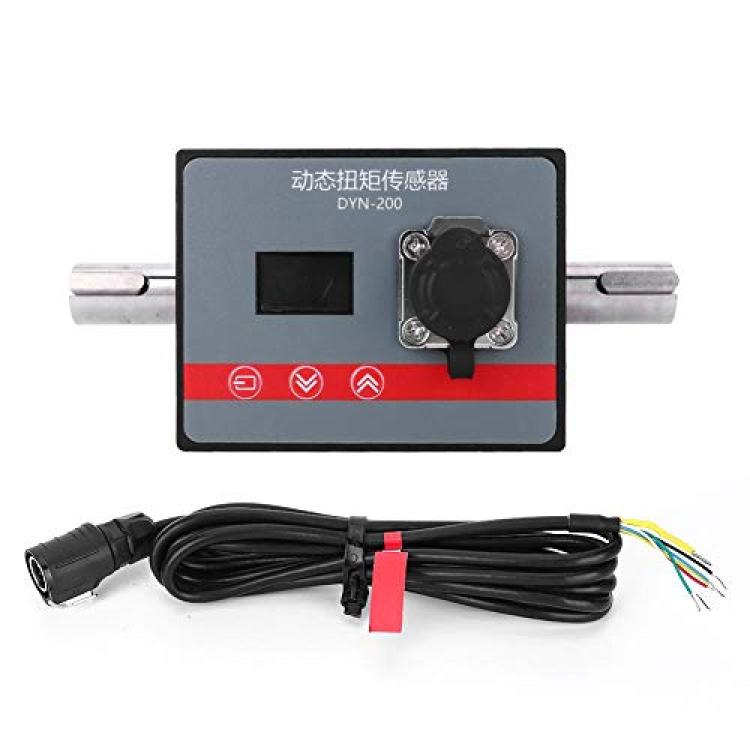

Package List:
1 x Sensor Â
1 x LineÂ
