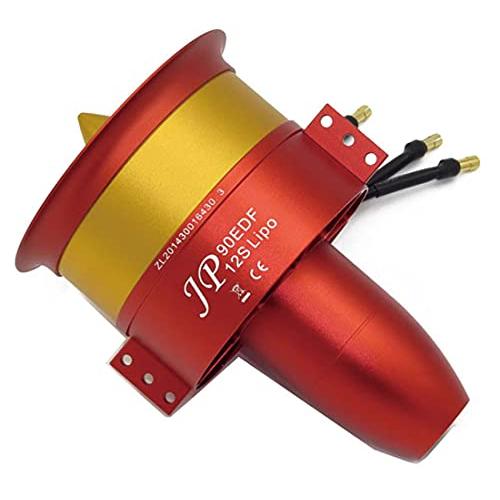

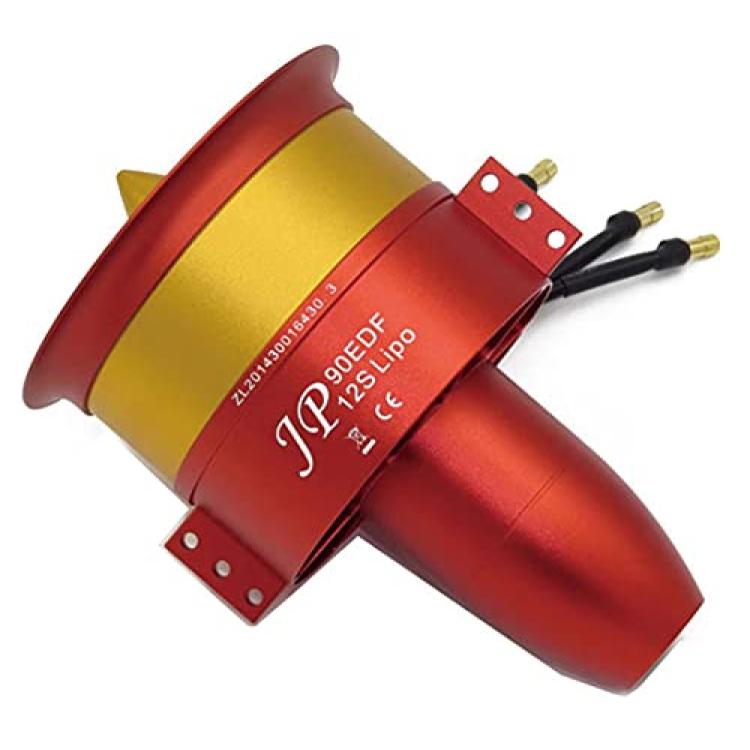

JP 90mm 12S EDF Full Metal Ducted Fan with RC Brushless Motor 4250 KV1080 for EDF 12S RC Jet Airplane(CCW)
Availability: Pre-Order, Inquiry Price
About this product
*100% CNC aluminium JP Hobby EDF unit (shroud and rotor) for 12s. The V2 version offers an exceptional reduced gap of 0.25mm between each blade edge and the EDF shroud for more efficiency.
*The shroud acts as a heat sink, removing heat from the motor. This design creates a more efficiently running motor and will provide peak performance while extending the lifespan of the motor.
*The highly rigid structure design is capable of running up to 88,000 RPM to produce extremely high efflux velocity for maximum speed and efficiency.
*Each metal blade is precisely made of High Grade Aluminum alloy to generate jet airflow. Every blade has been tested for 8 hours of metal fatigue test as well as in the dynamic balance machine for calibration, making it bring a better and safer user experience for every RC fan.
*You could assemble our EDF system with any other motor without losing dynamic balance effect.
Description
Size:90 | Style:CCW
Length (mm): 74.12mm (without motor / Cone)

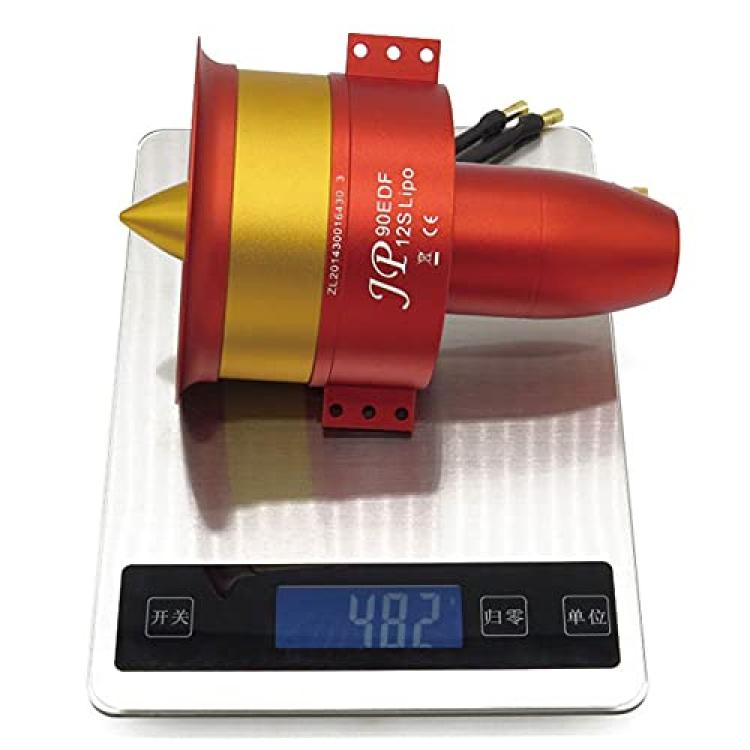

Weight (gr): 459 gr
EDF Diameter Class (mm):90
EDF Outside Diameter (mm):94.5 mm
EDF Inner Diameter (mm) :90.5 mm
Rotor Diameter (mm): 90 mm
Stators: 8
Motor Type: Out-Runner
Blades: 12
Working voltage (Volts/LiPo Cells): 12s
Turns/min/Volt (Kv):1080 Kv
Motor Diameter (mm):42.65 mm
Shaft diameter (mm):5
Connection: Pk 5mm
