Calvert win 50 Amp Circuit Breaker with Manual Reset for Car Marine Trolling Motors Boat ATV Manual Power Protect for Audio System Fuse, 12V-48VDC, Waterproof (50A)
Availability: Pre-Order, Inquiry Price
About this product
*【Wide Application】: Mainly used for car audio and Amps protection and in trucks, boat, RVs , marine, buses ect; also used in battery charges and DC sound system.
*【Function】: Compact and lightweight design,Protects your trolling motor from electrical damage, prevents excessive current and stops power surges from damaging Amps.
*【Specification】:50A circuit breaker, Voltage 12-48V DC,red manual reset button, 50A 60A 80A 150A 200A 250A available.
*【Resettable】: Manual reset button, manual control and easy to operate with manual reset arm, also can be used as a Kill Switch.
*【Installation】: Surface Mount, mount on panel or firewall. Water resistant housing, protective stud insulator included, splash & dust Proof.
Description
Color:50Amp
This is 12-48V DC, 50/60/80/150/200/250 Amp Circuit Breaker, has been designed to end the struggle of blowing fuses, and hassle of having to install more. A red arm will deploy when the circuit is tripped, then just simply reset the circuit
Protects your trolling motor from electrical damage, prevents excessive current and stops power surges from damaging Amps
Rated current: 50/60/80/150/200/250 Amp
Rated voltage: 12-48VDC Maximum
Breaking capacity: 3000A @ 48 Vdc
Ambient temperature: '-32 ° c to 82 ° c (-25 ° f to 180 ° f)

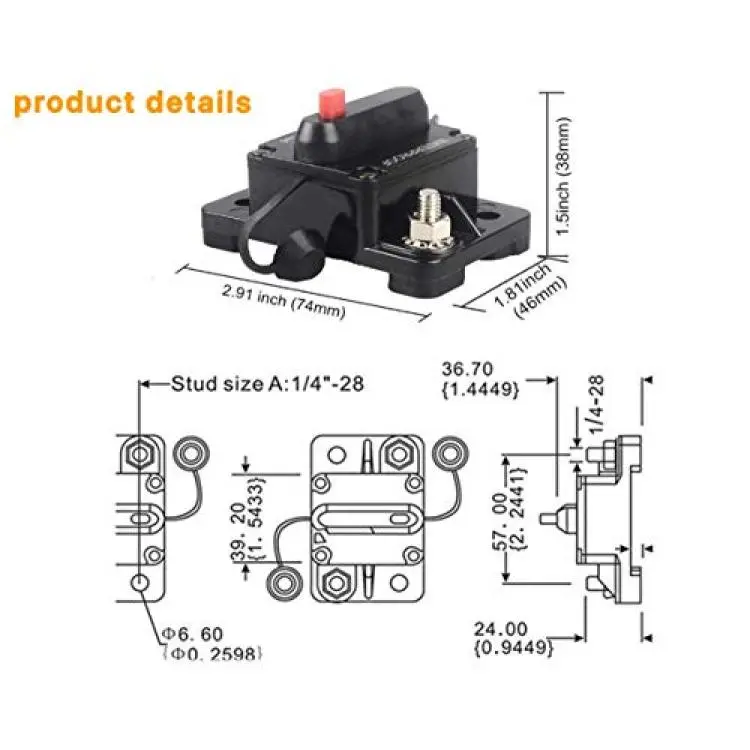

Size: (LxWxH) 74 x 49 x 44 mm /2.9 x 1.9 x1.7 inch

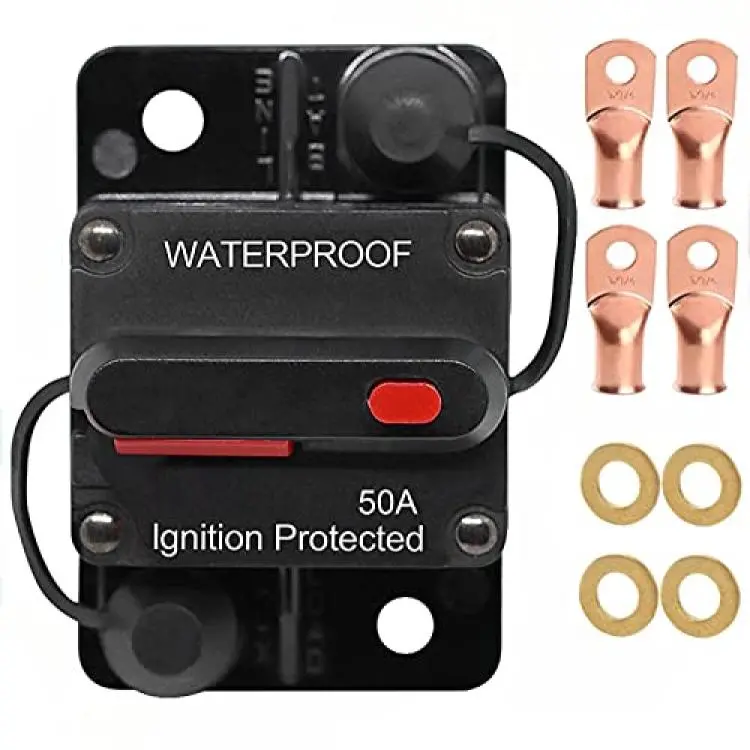

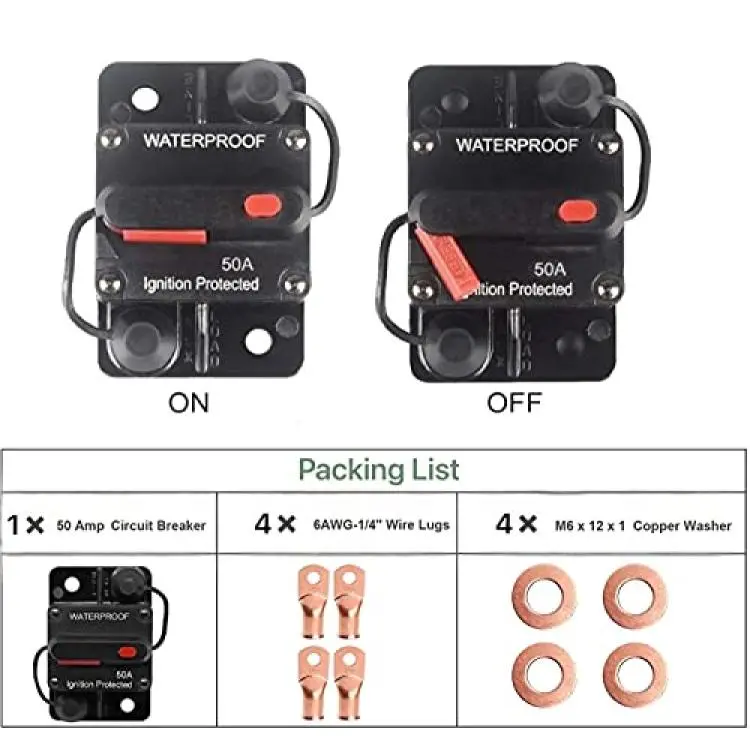

Package Includes:
1 x 50A Circuit Breaker with Manual Reset
4 x 6AWG-1/4'' Wire Lugs
4 x M6 Copper Washers
