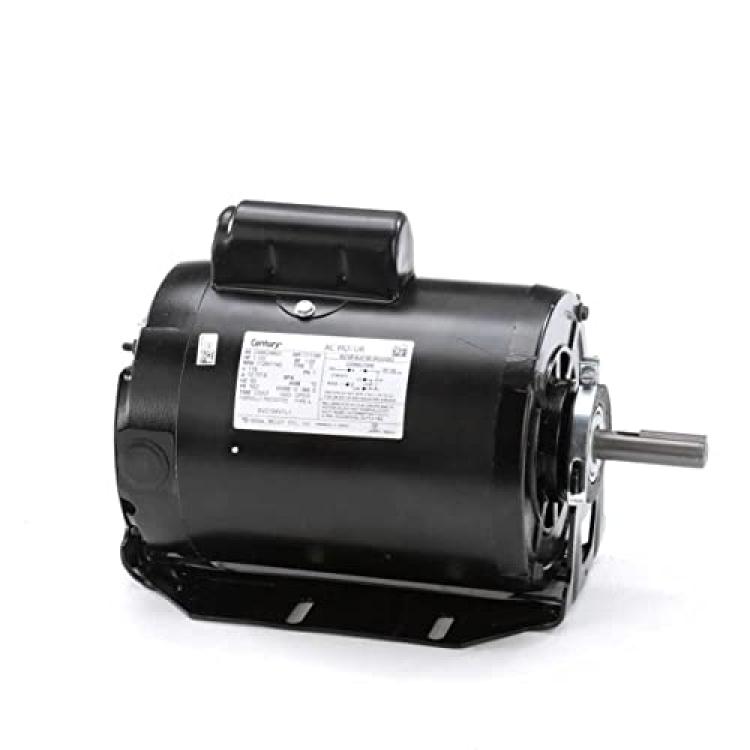

Evap Cooler Motor, 1 HP, 115V, 2 Speed
Availability: Pre-Order, Inquiry Price
About this product
*Price For: Each Phase: 1 Ins. Class: B Motor Mounting Type: Cradle Base Max. Ambient Temp.: 40 Degrees C Motor Sub Application: Evaporator Cooler Motor Application: HVAC/R Item: Evaporative Cooler Motor Motor Thermal Protection: Auto Motor Design: Capacitor-Start Voltage Compatibility: 115, 120, 115/208-230, 115/230, 120/240 Shaft Dia.: 5/8 Full Load Amps: 12.7/7.6
*Frame: 56Z Motor Service Factor: 1.00 Motor Bearings: Sleeve Voltage: 115 Motor Shaft Rotation: CCWLE Shaft Length: 2-1/8 Motor Enclosure Design: Open No. of Speeds: 2 Hz: 60 Nameplate RPM: 1725/1140 HP: 1 Country of Origin (subject to change): Mexico
*Price For: Each Phase: 1 Ins. Class: B Motor Mounting Type: Cradle Base Max. Ambient Temp.: 40 Degrees C Motor Sub Application: Evaporator Cooler Motor Application: HVAC/R Item: Evaporative Cooler Motor Motor Thermal Protection: Auto Motor Design: Capacitor-Start Voltage Compatibility: 115, 120, 115/208-230, 115/230, 120/240 Shaft Dia.: 5/8 Full Load Amps: 12.7/7.6
*Frame: 56Z Motor Service Factor: 1.00 Motor Bearings: Sleeve Voltage: 115 Motor Shaft Rotation: CCWLE Shaft Length: 2-1/8 Motor Enclosure Design: Open No. of Speeds: 2 Hz: 60 Nameplate RPM: 1725/1140 HP: 1 Country of Origin (subject to change): Mexico
*Product Dimensions : 17 x 11 x 11 inches; 32 Pounds
Description
' Evaporative Cooler Motor, Motor Type Capacitor-Start, Enclosure Open, HP Cradle Base, Number of Speeds 2, Nameplate RPM 1725/1140, Voltage 115, 60 Hz, 1 Phase, 12.7/7.6 Full Load Amps, Mounting Cradle Base, Thermal Protection Auto, Insulation Class B, Service Factor 1.0, Bearings Sleeve, Rotation CCWLE, Shaft Dia. 5/8, Shaft Length 2-1/8 '
