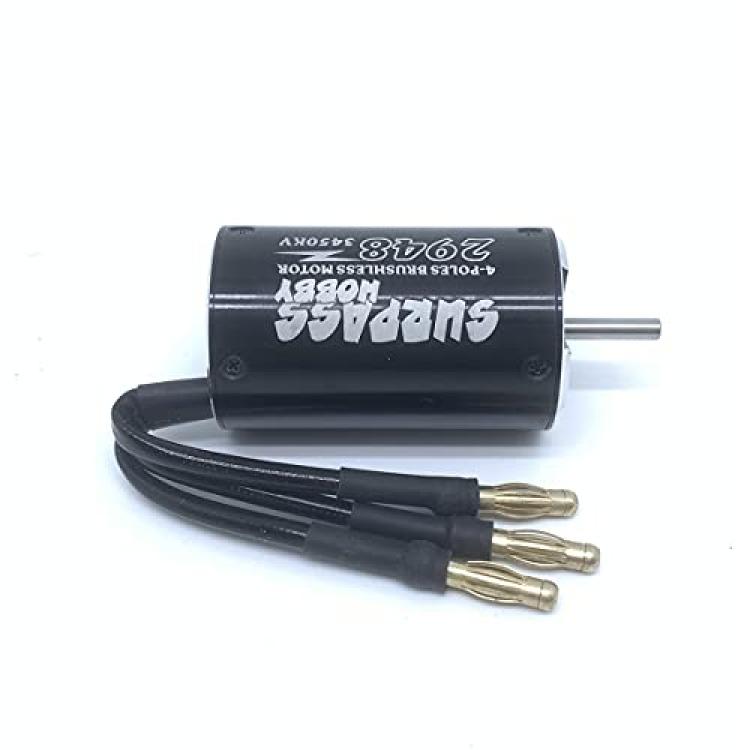

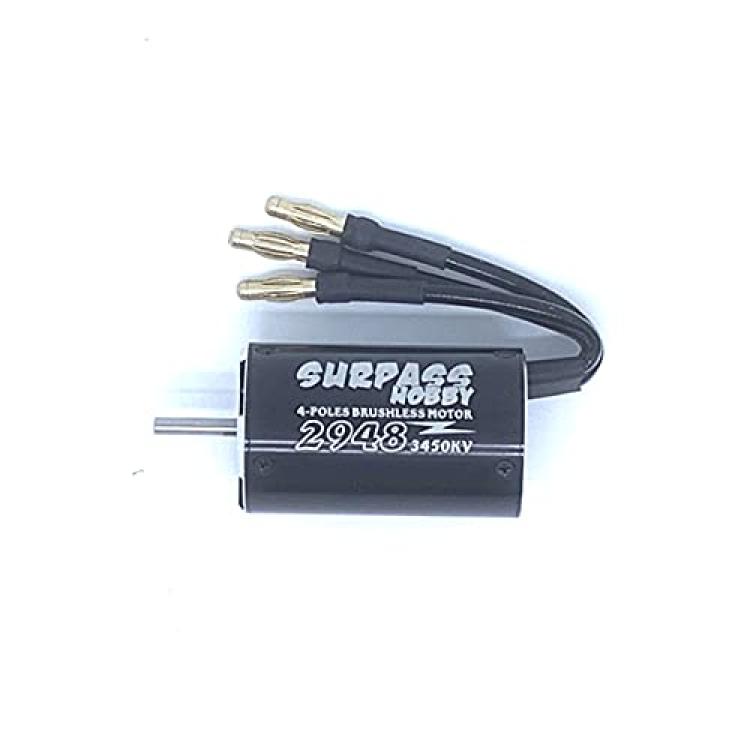

SURPASS HOBBY 2948 3450KV Brushless Motor Shaft 3.175mm with Water Cooling Jacket for RC Boat
Availability: Pre-Order, Inquiry Price
About this product
*4 Pole 12 Slot Hi-torque Motor Design
*CNC Machined 6061 T6 Billet Aluminum Heatsink Can
*High Purity Copper Windings Maximizes Efficiency
*High RPM ABEC5 Oversized Bearings
*Precision balanced rotor,smoothness for best reliability and maximum RPM
Description
Features:
? 4 Pole 12 Slot Hi-torque Motor Design
? CNC Machined 6061 T6 Billet Aluminum Heatsink Can
? High Purity Copper Windings Maximizes Efficiency
? High RPM ABEC5 Oversized Bearings
? Precision balanced rotor,smoothness for best reliability and maximum RPM
? Stator - Super Thin (0.2mm) Laminations
? Removable/Replaceable Rotor
? Precision Engineered for Maximum Energy Conversion
Specifications:
Brand name: Surpass Hobby
RPM: 60000
Watt: 1000W
D&L: 29*48mm
Shaft diameter: 3.175mm
Connector: 4mm golden banana connector
Weight: 145g
Item No.: 2948 3450KV Motor for RC Boat
Max current: 60A
Max voltage: 17V
Winding Type: DELTA
Number of Turns:5T
No load current: 1.6A
Package List:
1 * Surpass Hobby 2948 Motor

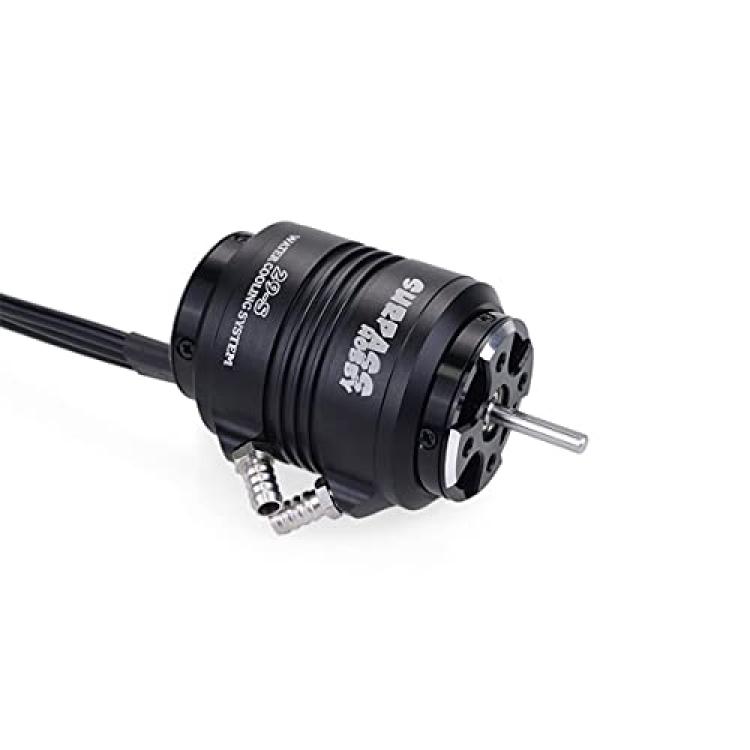

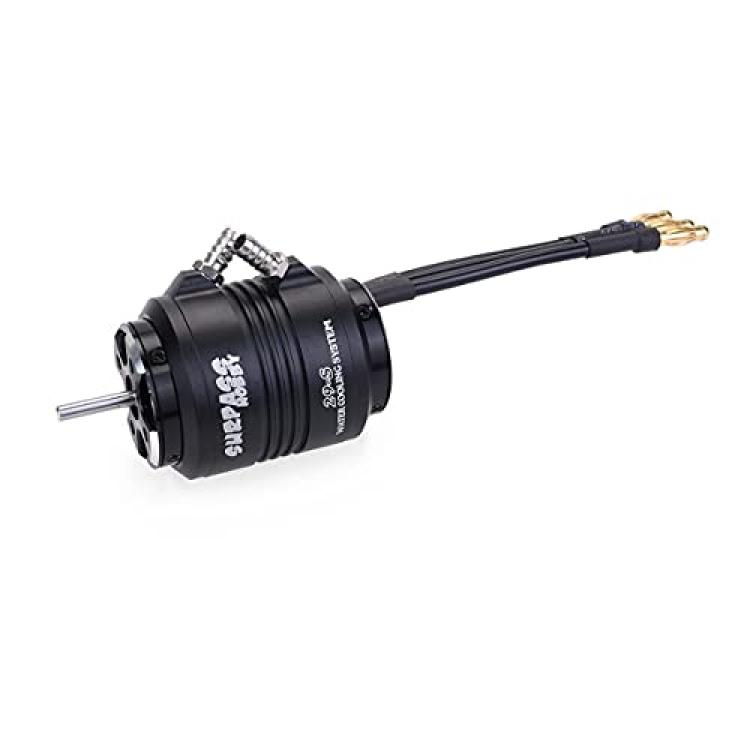

1 * Water cooling Jacket
