JMT Mini Multi-Rotor 1806 2400KV CW CCW Brushless Motor for DIY 2-3S 250 Mini Drone FPV CC3D 260 330 RC Quadcopter (2CW+2CCW+4ESC)
About this product
*Clockwise Motor CW or CCW in Silver Motor Cap
*12A ESC built in SIL F330 chip,supports 2-3S Lipo and BLHELI 14.2 Firmware.
*2400 KV Brushless Motor Support 6.5A (max.) Working current, supports 70W(max.) Power.
*Used for DIY 2-3S 250 Mini Drone FPV CC3D 260 330 RC Drone
*【What You Can Get】- 4x BLheli 12A Brushless ESC, 2x 1806 Brushless Motor (Silver Orthodontic CCW), 2x 1806 Brushless Motor (Black Orthodontic CW)
Description
Parameters:

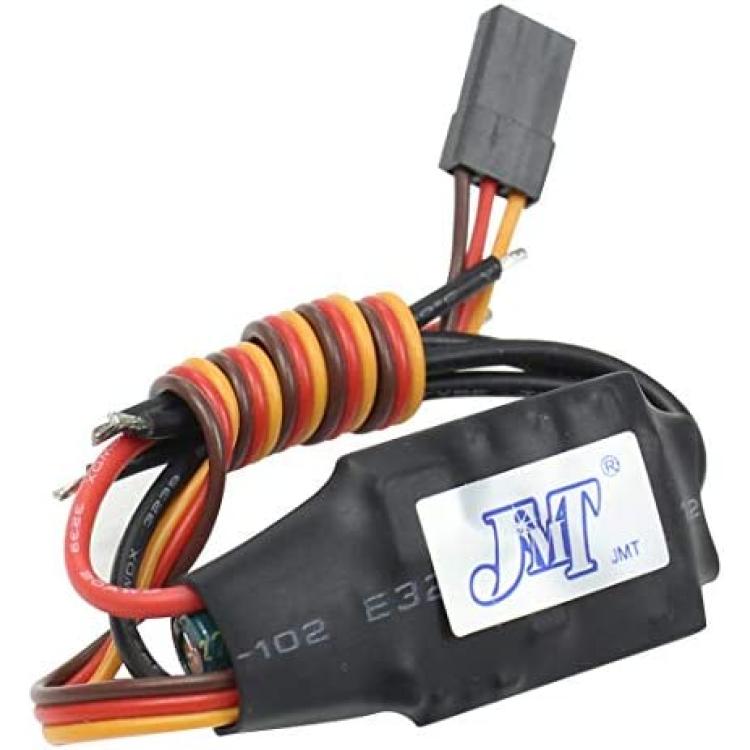

ESC:
- Continuous current: 12A
- Instantaneous current: 15A (10S)
- Input voltage: 2-3S Lipo
- BEC output: 5V1A
- Firmware: BLHELI 14.2
- Chip: SIL F330
- Size (mm): 25*20*7(L*W*H)
Motor:
- KV : 2400
- Stator diameter: ?18
- Net weight of motor: 16g without wire
- Support voltage: 2-3s
- Maximum Working current: about 6.5A
- Maximum power: about 70W
Note:

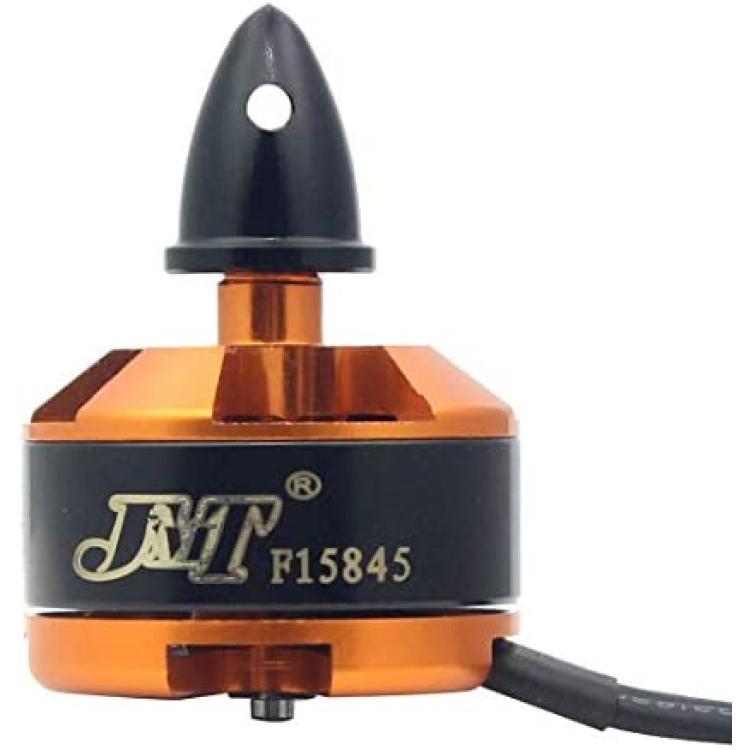

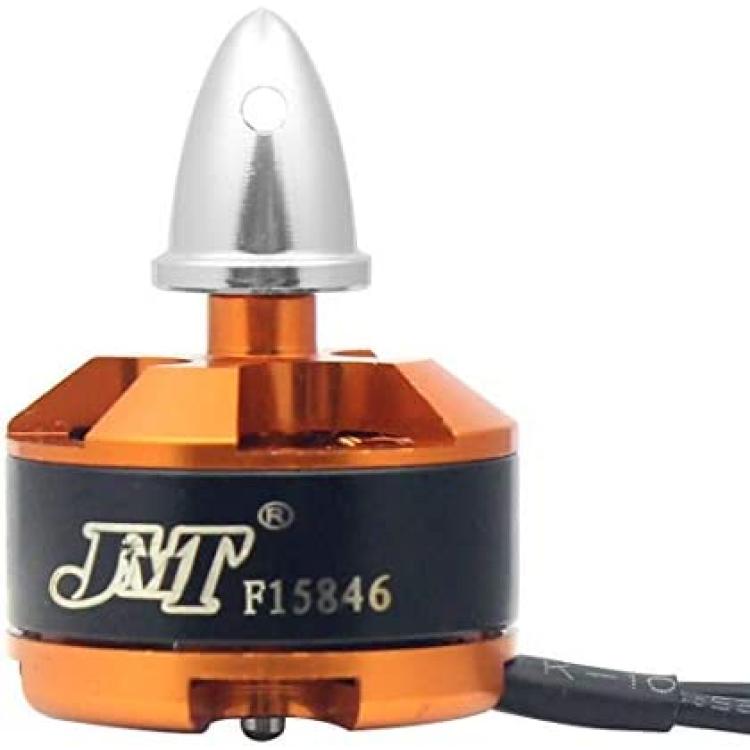

Clockwise Motor CW in Silver Motor Cap
Counterclockwise Motor CCW in Black Motor Cap

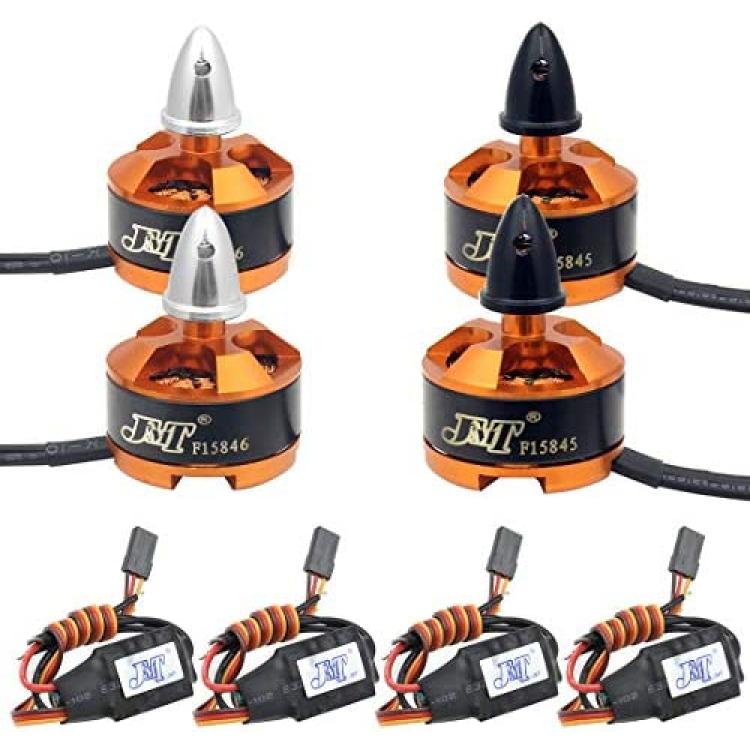

Packaging List:
- BLheli 12A Brushless ESC*4
- 1806 Brushless Motor (Silver Orthodontic CCW)*2
- 1806 Brushless Motor (Black Orthodontic CW)*2
