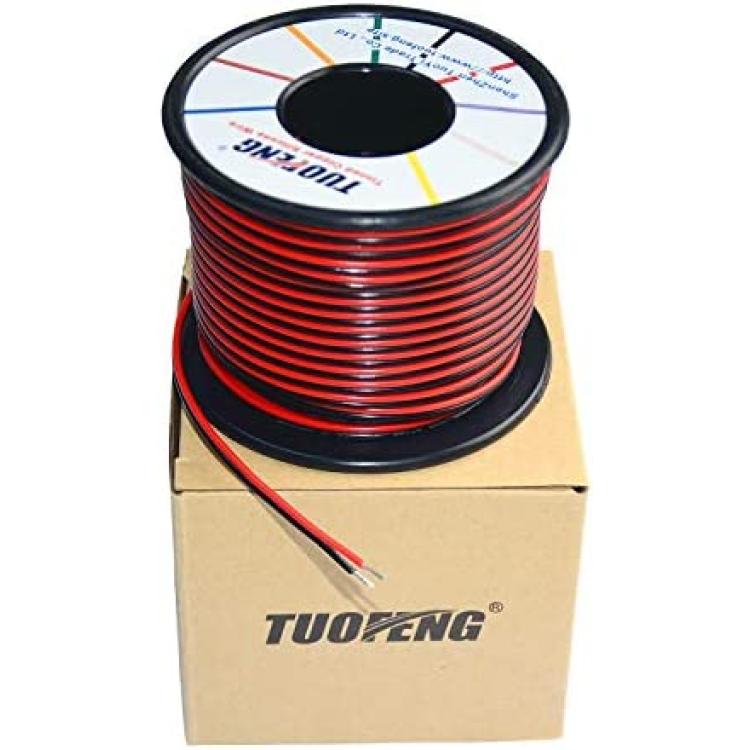

TUOFENG 66 FT 18awg Electrical Wire 2pin Red Black Cable Hookup Stranded Wire LED Strips Extension Wire 12V/24V DC Cable,18 Gauge Flexible Low Voltage Wire for LED Ribbon Lamp Tape Lighting
Share Facebook Twitter Pinterest Email

TUOFENG 66 FT 18awg Electrical Wire 2pin Red Black Cable Hookup Stranded Wire LED Strips Extension Wire 12V/24V DC Cable,18 Gauge Flexible Low Voltage Wire for LED Ribbon Lamp Tape Lighting

Product Code: MM5264
Availability: Pre-Order, Inquiry Price
US$0.00
- +

About this product

*18AWG Gauge: this stranded wire consist of 41 tiny lines which twined together, the cross-sectional area is 0.9mm2 and better than 0.85mm2, the standard of 18 Gauge. stranding structure makes it flexible and easy to install

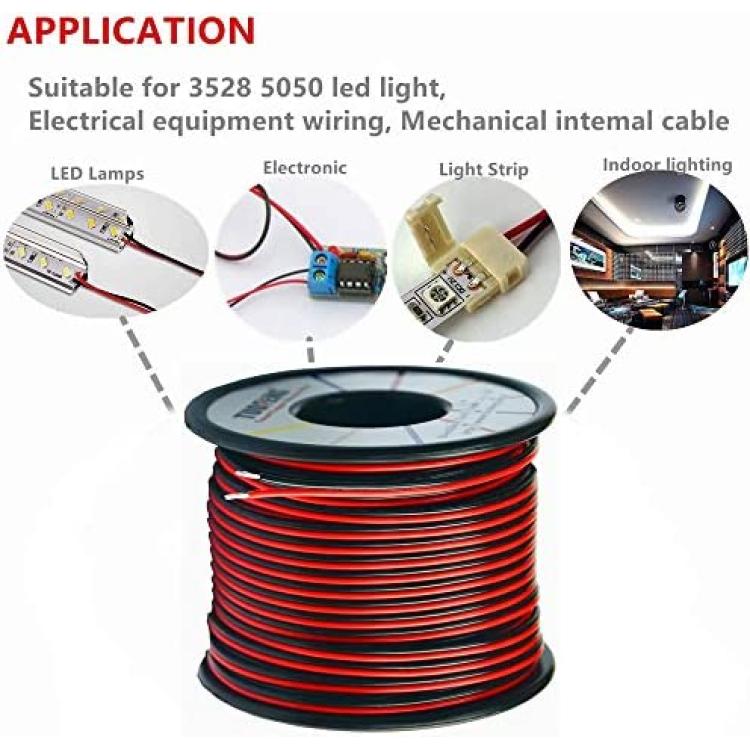

*Connection extension for 3528 5050 single color led strip,Widely used: for all single color LED strip lights, various DC electrical hookups including CB Radios, electronics, electrical appliance and equipment, transformer, motor lead wire connection, other low voltage products

*High purity oxygen-free copper with tin-plated, reduce the producing of heat, which make it more durable and eco-friendly。specification fetures high conductivity, low resistance and soft, can be bent arbitrarily.Easy cut, Welding, jointed with connectors are up to you

*High qulity UL1007 PVC, fetures flame retardant, high compressive strength adopted, anti-aging, excellent performance in corrosiveness resistance.

*Max Voltage: 300V, Max Current: 3.2A, Color: Black&Red optimum working temperature rang -20°-80°,protect your safety in the most

Description

Features:

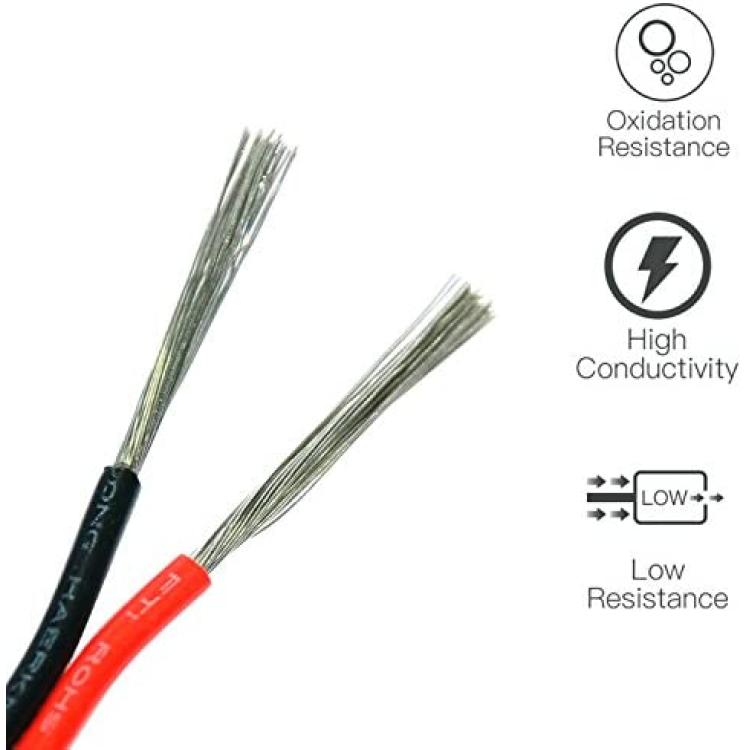

Being made of high purity oxygen-free copper with tin-plated, fetures high conductivity, Lower resistance, and anti-aging.
High qulity UL1007 PVC, fetures flame retardant, high compressive strength adopted, excellent performance in corrosiveness resistance.
Easy cut, Welding, jointed with connectors are up to you.
Max wattage up 300V, optimum working temperature range -20 Degrees Celsius to 80 Degrees Celsius protect your in the most.
Experienced thousand times harsh testing, Long lifespan and stability highlight.

Specification:
Length: 20m/66ft
Wire Guage: 18AWG
Nominal Voltage: 300V
Testing Voltage:2000V
Color: Black&Red
Copper Number/Wire Diameter:41/0.16mm
Diameter: ?1.18mm

Insulator:
Jacket Thick:0.38mm
Over Diameter:1.95mm
Flame retardant:VW-1

Electrical Characteristic:
Realst,maxCuc,c 20?: 23.2 Ohm/km
Bear Current:8.2A

Package Included :
18AWG 20m/66 Feet Black&Red Wire
