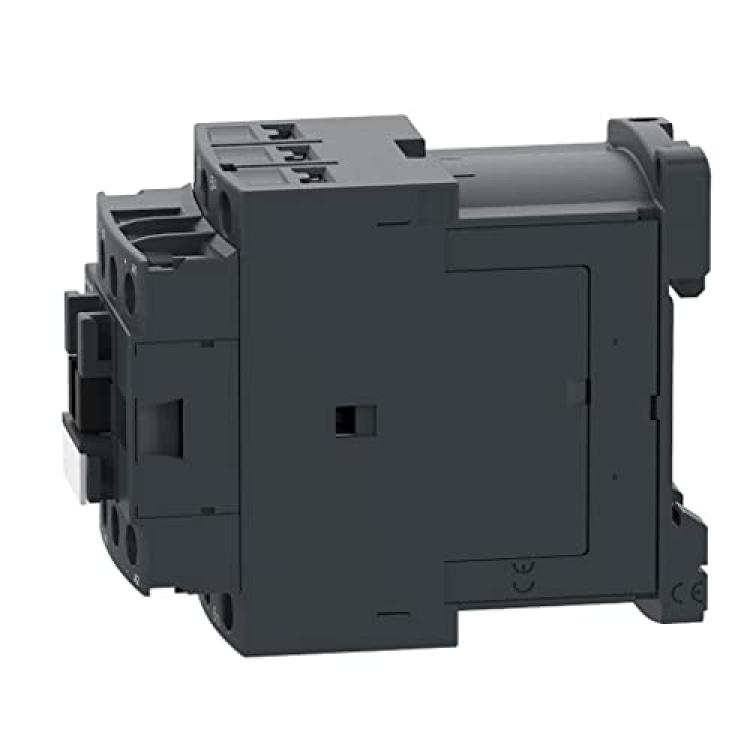

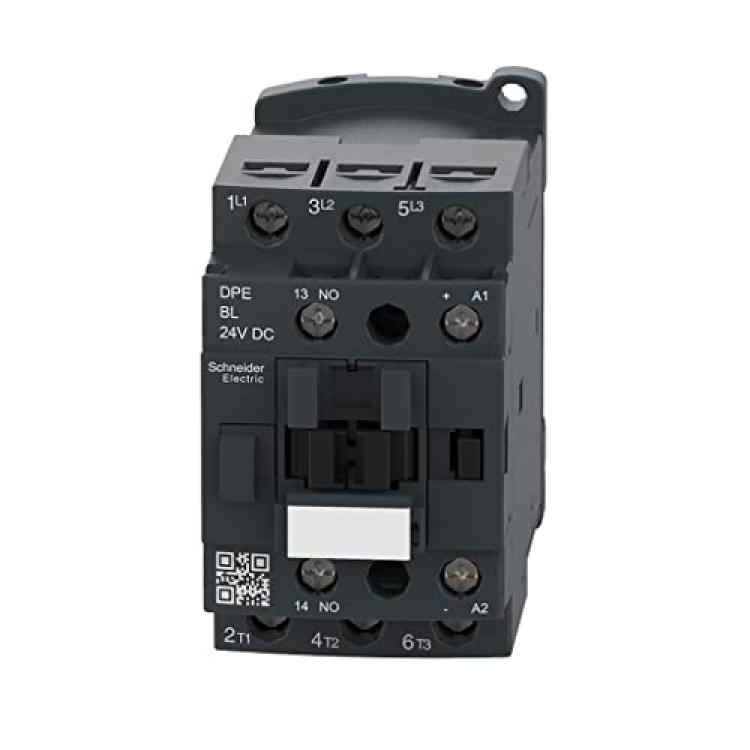

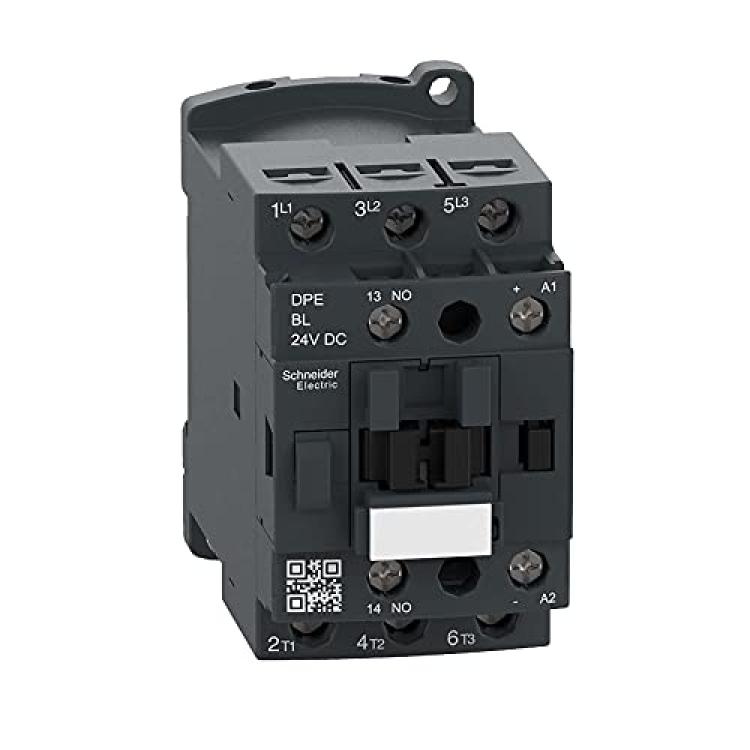

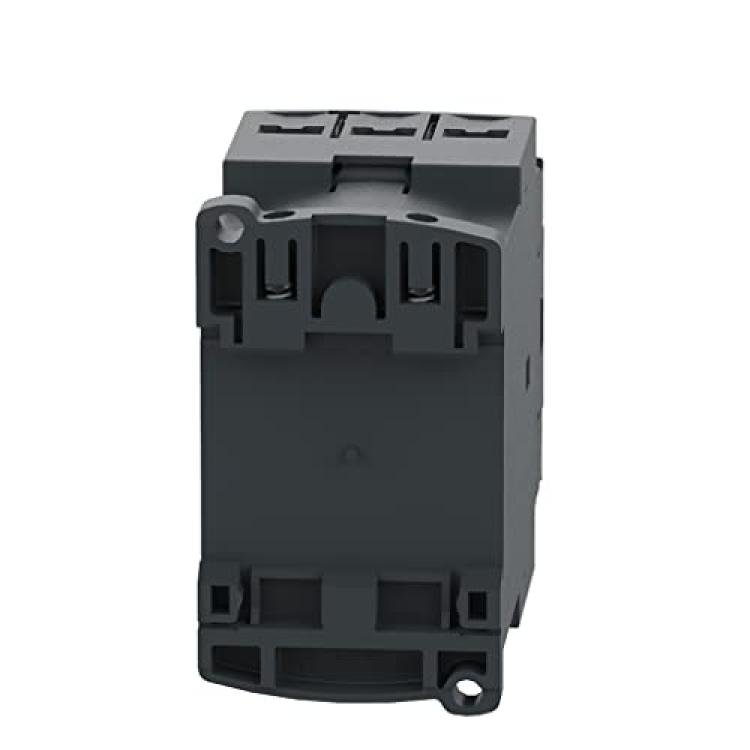

Schneider Electric - DPE25BL Easy TeSys IEC Contactor, 10HP, 480V, 24VDC Coil, Screw Clamp Terminals
Product Code: MM5252
Availability: Pre-Order, Inquiry Price
Availability: Pre-Order, Inquiry Price
About this product
*DPE contactors can offer quick simple setup, while maintaining a compact size.
*Simple to select and install at optimized budget.
*Reduced installation time.
*Robust performance for common applications.
*Flexibility to add motor disconnects to help met NEC requirements.
Description
Easy TeSys DPE IEC contactor, 3 poles (3NO), for motor control applications up to 25A/690V AC-3 (10 HP@480V). It provides a 24V DC coil, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. Multi standards certified (IEC, UL, CSA), Green Premium compliant (RoHS/REACh).
