DaFuRui 2Pack Upgraded 6V-90V 15A DC Motor Pump Speed Controller，16KHZ PWM Speed Controller Regulator Module Board with Speed Control Knob (6V-90V 15A DC Motor)
Availability: Pre-Order, Inquiry Price
About this product
*★Upgraded 6V-90V 15A DC Motor Pump PWM Speed Controller and PLC voltage can be directly controlled.
*★Its own power supply reverse polarity protection, control voltage over-voltage protection, 20A fast-blow ceramic fuse.
*★Adjust the order of the cable to change the orientation，can control motor speed to change from 0 percent to 100 percent.
*★Adjust the knob of potentiometer to change the output occupying Vacancy proportion of controller, and the motor speed will change.
*★Rated Current: 8A, Max Current: 15A, Quiescent Current: 0.005A (Standby).
Description
Specifications:
Working Voltage: DC 6V-DC 90V (Ultra wide working voltage)
Control Power: 0.01-1000W
Rated Current: 8AÂ
Maximum Current: 15AÂ
Static Current: 0.005A (Standby)
PWM Duty Cycle: 0%-100%
PWM Frequency: 16Khz
Product Size: 2.5*2.3*1.1in(64*59*28mm)
Product Weight: 80g
Resistance Value: B100K
Potentiometer: Adjust power supply output
With power reverse connection protection, has complete protection from overvoltage,20A to quickly fuse the ceramic fuse,can use PLC voltage to control directly.
Package Including:
1 x Dafurui Speed Control
1 x Dafurui Speed Control SwitchÂ
Note:Â
Make sure the connection with power supply is correct,or the speed controller will be broken.Â

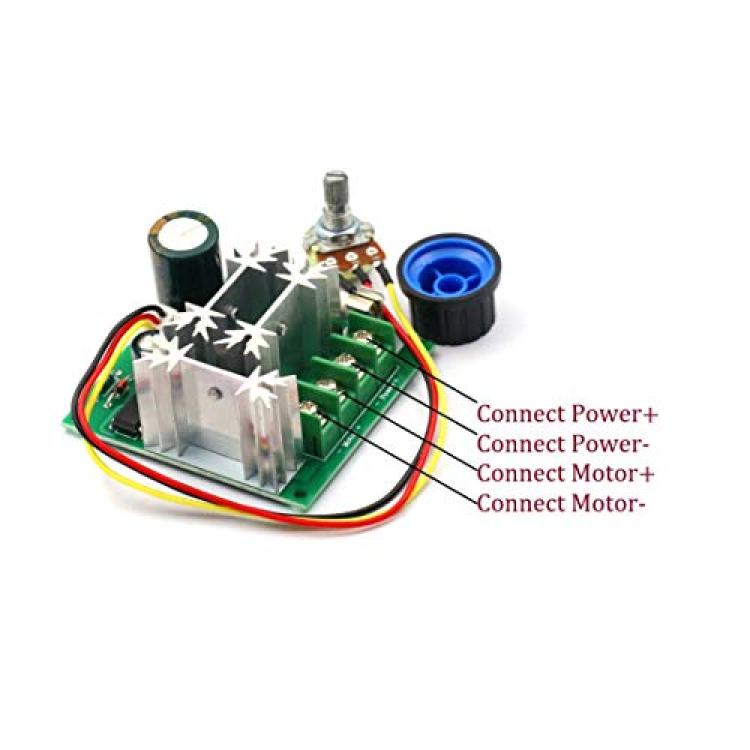

The positive and negative of motor can be ignored, when the running direction is inconsistent with the expectations, you can adjust the order of the cable to change the orientation.
If you have any questions, please feel free to contact us.
