DC 12V 200RPM Worm Gear Motor, 8mm Female Shaft High Torque Turbine Reducer
About this product
*[Turbo Worm Motor]: Output shaft diameter: 8mm; The motor is Gear DC motor with micro-turbine worm, you can change the wiring-connection to change motor rotation
*[Self-Locking]: Turbo worm geared motor with self-lock, that is, in the case of motor without electric, the output axis is fixed and self-locking
*[Material]: Very sturdy construction inside and outside; The outside shell is well build and has excellent access to mounting screws; Super quiet and smooth operation, even under maximum load; The brushes have carbon pads that last much longer life
*[Application]: Suitable for bank equipment, safe box, paper feeder, intelligent gas meter, tissue machine, accessory of automobile, ad equipment, analysis instrument, electronic game machine,electrical appliances including remote control curtains, locks, paper shredders, copying machines, and safes Inner
*[100% Satisfaction]: If you have any question about this item, please feel free to contact us, we will help you within 24 hours on week days
Description
Features:

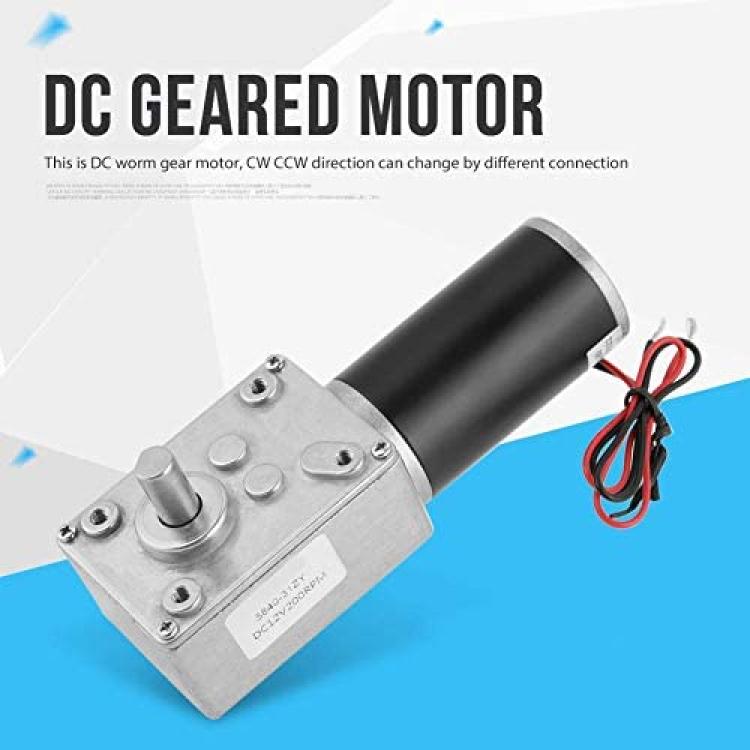

- This is DC worm gear motor, CW CCW direction can change by different connection.
- The worm gear motor with self-locking, in the case in the absence of electric motors, the output shaft is not to move, that is self-locking.
- The output shaft direction vertically with motor shaft, so the entire body is very short, widely used by which installation dimensions have strictly required.
- Used in electrical appliances including remote control curtains, paper shredders and copying machines.
Â
Specifications:
Model: 5840-31ZY
Rated power: 21W
Rated voltage: 12V
Rated current: 2A
Rated speed: 200 RPM
Rated moment of force: 7NM
Wiring method:
CW: Red: "+", Black: "-"
CCW: Red: "-", Black: "+"
Efficiency: 80%

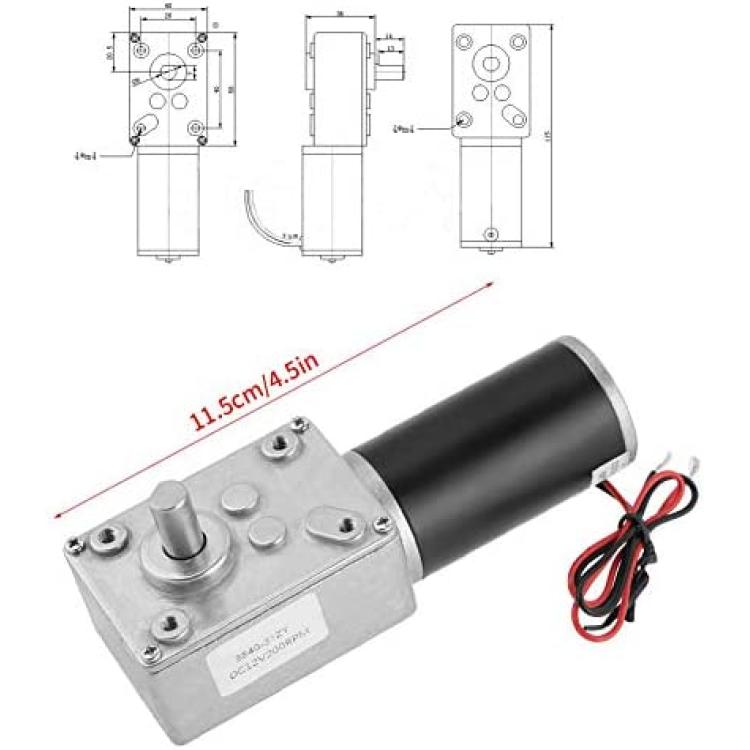

Motor length: 11.5cm / 4.53in
Weight: 364g
Â
Package included:
1 * Geared Motor
