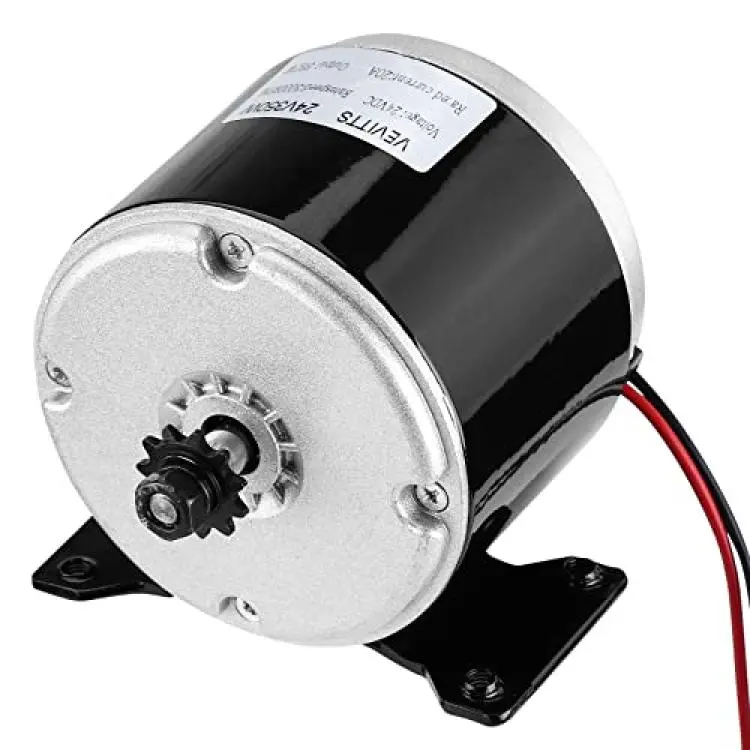

Vevitts 350W Brushed Electric Motor, Small Brushed Permanent Magnet Electric Motor for E Scooter Drive Speed Control 24V 350W 3000RPM
Availability: Pre-Order, Inquiry Price
About this product
*Premium Material - Electric Brushed DC Motor, Aluminum Body, Full Copper Coil, Heat Resistant, Naturally Air Cooled, Low Noise High Quality More Long Life.
*High Performance - Powerful Electric Motor, High-speed brushed electric motor, 24VDC Permanent Magnet Generator 3000RPM,20A Current.
*Specification - Voltage-24V DC; Shaft Diameter: 8mm, Rated Speed-3000 RPM; Current: 20A
*Reversible Motor - This motor is capable of rotation in either the clockwise or counterclockwise direction by reversing the motors power wires.
*Wide Application - Widely fit for wind turbine scooter, small dolphin electric car, mechanical equipment, Mini Electric Motorcycle DIY Engine Kit, Razor Push Scooter, Ebike Bicycle, Go Karts, E-bike, E Tricycle, Mid Drive Motor Kit, DIY Engine System, Cycling Part, even mower and more other machine.
Description
Features:
All aluminum body copper movement, Electric Motor with Forward and Reverse Design, Motor clockwise Running is the correct direction, counterclockwise is the recersing (The counterclockwise rotating speed will be 200-300rpm less than working in the clockwise).
Application:
Replacement Motor is for Bicycle, Scooter, Dirt Quad Scoot, E-Scooter, Go-kart, E Bike, ATV, Go Karter, Skateboard, Minibike, E-ATV, Bike etc.
Specification:
- Voltage: 24V
- Rated Current: 20A
- Chain drive (11 teeth sprocket): #25H Chain 6.35 pitch
- Sprocket Diameter: 25mm
- Output: 350W
- Rated Speed: 3000 RPM

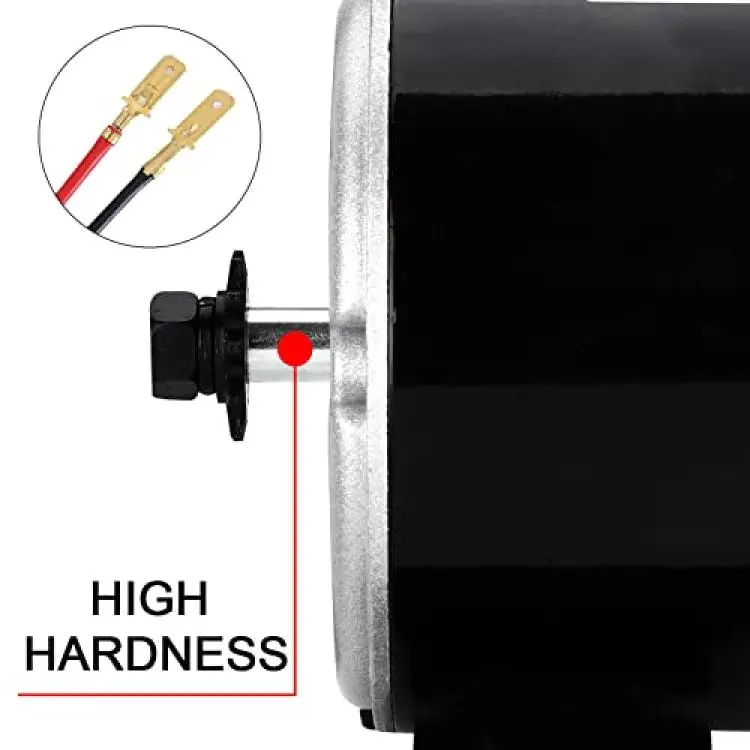

- Wiring: 2 (Black & Red)
- Type of motor: DC, Brushed
- Torque: 1.25Nm (0.92 ft·lb)
- Load capacity: 85KG
- Motor Weight: 4 Lbs

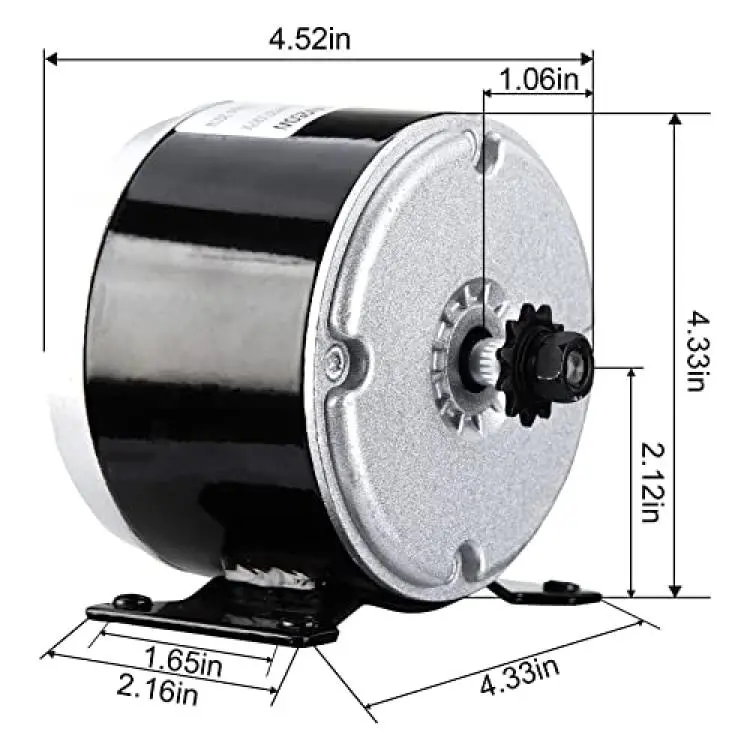

Distance between holes on each tab is about 42mm(1 3/4")
Distance between holes across the tabs is about 95mm(3 3/4")
The Size of Threaded Holes: 5.6mm(1/4")
Motor Dimension: 5.11 x 3.94 x 4.72"
Cable Length: Approx. 13.4"
Package Includes:
1 x 350W Permanent Magnet Electric Motor
