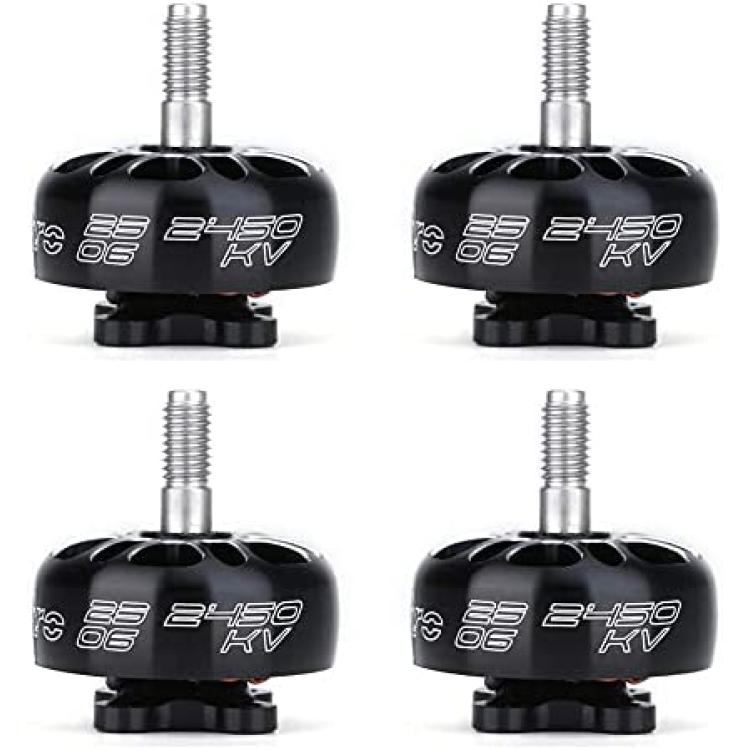

iFlight 4pcs XING-E Pro 2306 2450KV Brushless Motor 4S for QAV FPV Racing Drone Quadcopter Motor (Black)
About this product
*● The XING-E Pro series is a very strong and powerful FPV motor for FPV racing, great value choice with well known XING performance. Focuses on quality, the XING-E series is affordable motors that are strong and durable
*● This 2306 sized motor features a high-strength 4MM steel hollow shaft, single strand winding for performance, M3 shaft screws and larger 9X4X4MM NSK bearings
*● The iFlight XING series motor is characterized by support 4S

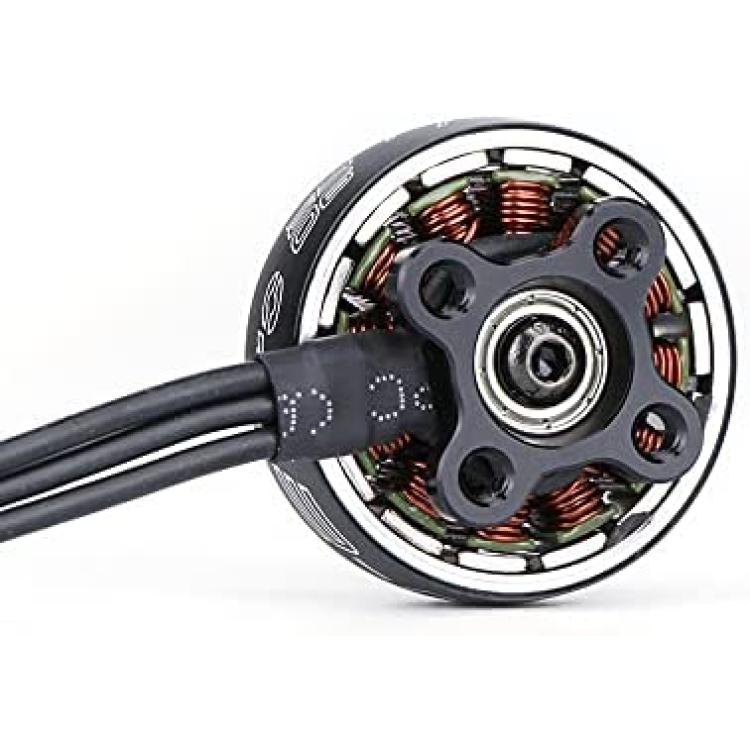

*● These 4 pack 2306 brushless motor used standard M3 16mmx16mm mounting pattern at the bottom,160mm cable length for different frames and setups
*● Each motor has been dynamic balanced, crush resistant damping bearing, eliminate vibration effectively
Description
iFlight XING-E Pro series are very strong and powerful FPV motors for FPV racing,
great value choice with well known XING performance.focuses on quality,
the XING-E series affordable motors that are strong and durable.Â
This 2306 sized motor features a high-strength 4mm steel hollow shaft, Single strand windings for performance,
M3 shaft screw, and larger 9x4x4mm NSK bearings.
Features:
-High-strength 4mm Steel shaft
-N52SH High-temperature magnets, NSK bearings
-16x16mm hole pattern
-Single strand copper winding
-6061 CNC machined aluminum top and base parts
-Hex bolt shaft set screw
Specifications:
-Configuration: 12N14P
-Stator Diameter: 24mm
-Magnets: N52SH Curved
-Bearing Size: 9x4x4
-Shaft Diameter: 4mm / Steel
-Base Mounting Pattern: 16x16mm M3 Thread
-Motor Dimension:29.5x18.7mm
-Weight:33.1g (160mm wires)
-Idle Current @12.6v (Io):2.1A
-Cells (LiPo): 4S
-Max Burst Current <10s:55.22A
-Max Power (W) 60s:885.4W
-Internal Resistance (Rm): 40.6m?
-Motor Wire Length: 160mm / 20AWG
Package included:Â
4pc x MOTOR XING-E Pro 2306Â 2450kv motor
