FTVOGUE Mecanum Wheel + for TT Geared Motor DIY Smart Robot Car Parts 48mm,Motor
Availability: Pre-Order, Inquiry Price
About this product
*For TT motor has no welding plug, users do it by themselves, versatile and convenient
*The outside of the wheel is an artificial shape, the color use yellow and black, and the appearance is more three‑dimensional
*The rubber‑coated wheel is made of rubber material, which bring smooth running and better gripping ability
*Allow the four‑wheel drive smart car to realize left and right translation, large‑angle drift, tilt 45° direction movement, square track movement and other movement modes, very practical
*For TT motor adopt all environmentally friendly materials, equipped with good‑quality carbon brushes, strong magnetic core, with shielding ring
Description

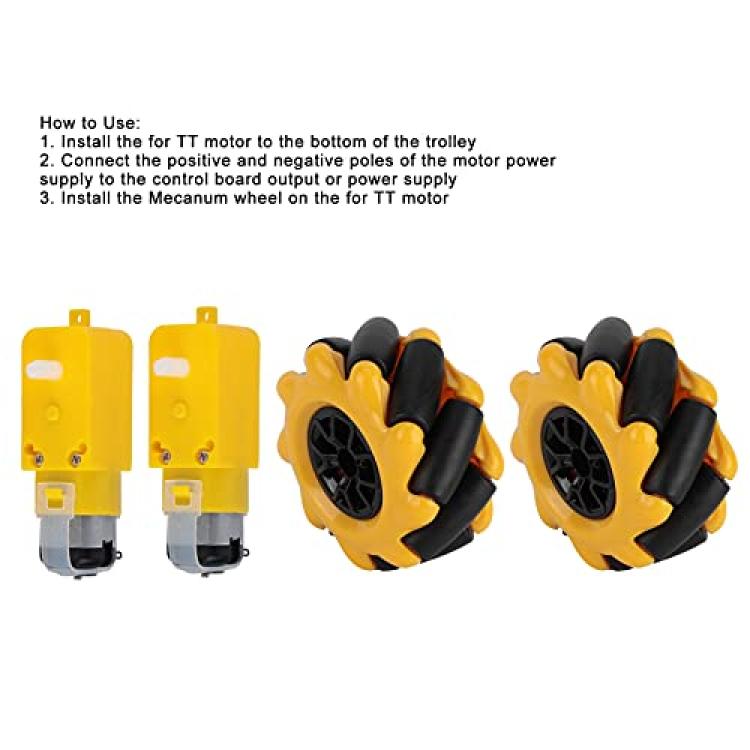

How to Use:
1. Install the for TT motor to the bottom of the trolley
2. Connect the positive and negative poles of the motor power supply to the control board output or power supply
3. Install the Mecanum wheel on the for TT motor
Specification:
Item Type: Mecanum Wheel
Material: ABS, rubber, copper
Purpose: DIY smart car, small robot
Wheel Parameters:

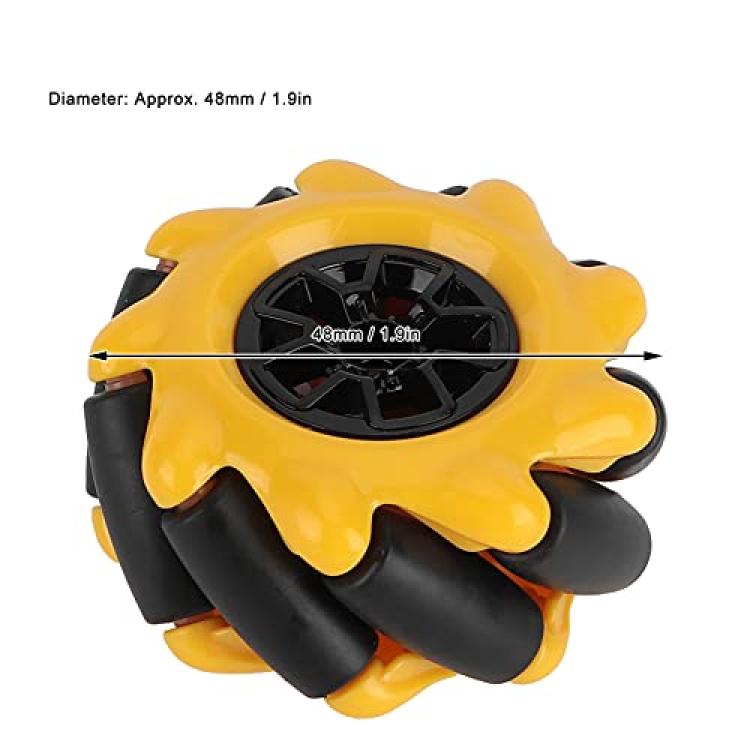

Diameter: Approx. 48mm / 1.9in
Coupling Type: For TT coupling
Motor Parameters:Â
Working Voltage: 3V?12V DC (recommended working voltage is around 6 to 8V)
Torsion: 0.8kg/cm (at 3V)
Reduction Ratio: 1: 48
Load Current: 70mA (250mA maximum)(at 3V)
VoltageNo-load currentNo-load speed6V?200mA200±10% rpm3V?150mA 90±10% rpm
Package List:
1 x Left Wheel
1 x Right Wheel
2 x Motor
