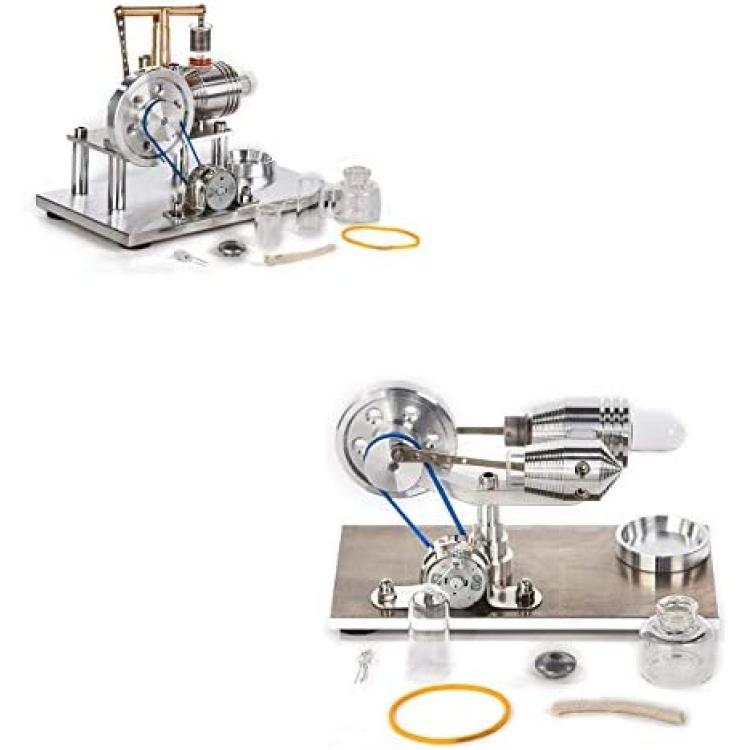

Sunnytech Hot Air Stirling Engine Motor Model Educational Toy Electricity Generator Colorful LED SC02M-SC010
Availability: Pre-Order, Inquiry Price
About this product

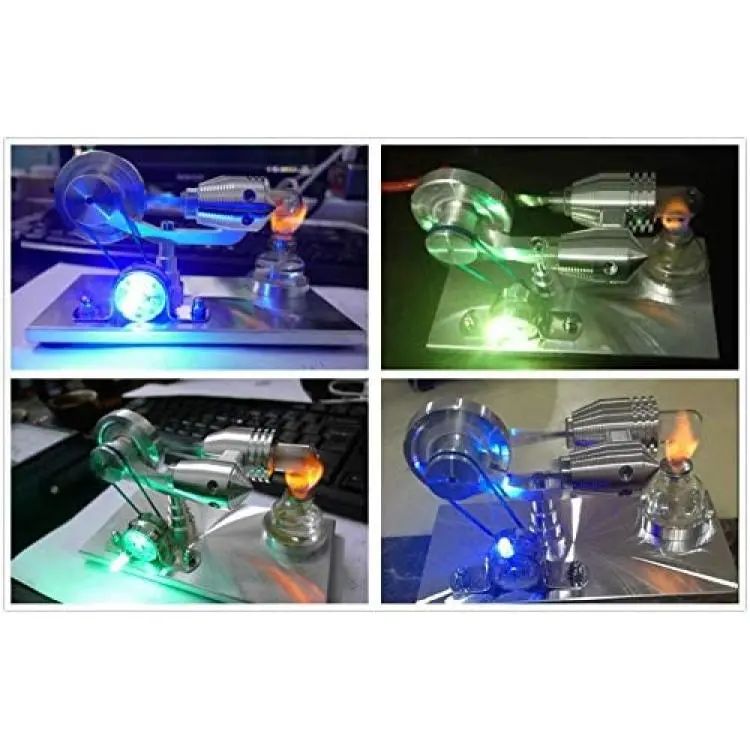

*NOVEL DESIGNED ----- This engine is a balance style, different from the ordinary Stirling model. It was equipped with a multicolor LED install on the motor. Because of the heat from high-grade alcohol, the engine will run madly and create the electricity. The power will go through the wire and drive the multicolor LED lighting. Its really interesting and imaginative toy.
*EXTREMLY WELL-MADE---- Heating cylinder for the custom-made thick glass material, long-term heating without pressure; It is mainly constructed by metal so it can run quietly and stably (since it is HEAVY, 1.5LB) at speed around 1700 RPM! Our customers are satisfied with the fit and finish of this engine. All the parts have done surface treatment to avoid rusting. You will be pleased once put it on table.
*EASY OPERATION & LONG LASTING----Fill the alcohol burner with your 95% alcohol (we recommend this fuel) and light it. Let the light burn the round ended cylinder for about 60-120 seconds, then give the wheel a gently push, it will run like a charm.
*YOU GET EXTRA BONUS EXCEPT THE STIRING----Still worry about the cylinder glass broken during shipment or usage? It did come with spare glass tubes, one O-rings, check the gallery picture. You can replace it fast and easily if any broken. You can contact us for support if need. We also can make offer for your future parts requirement.
*PRIORITY GIFT OPTION FOR MANY APPLICATIONS----It is an amazing and fantastic product at this price. Its elegant gift package makes it spruce up and presentable. It has a wide range of application as, great gift for Kids science project, Physical/mechanical learning, teacher’s Demo props on the class, birthday gift for friends, families, parents, kids, etc. Many of our customers come from school, colleague, etc.
Description
Features:
Model: SC02M
Status: Assembled
Speed: 1700-2000 RPM (revolutions per minute)
Material: stainless steel, brass, bearing steel, aluminum, quartz glass
Overall size: 165x95x120mm/6.50x3.74x4.72in(L/W/H)
Size of flywheel: 60x9mm/2.36x0.28in(Diameter/Thickness)
Net Weight: 810g/1.79lb
Packing List:
*Engine x1
*Lamp x1
*LED x1
*Spare tube x1
Features:

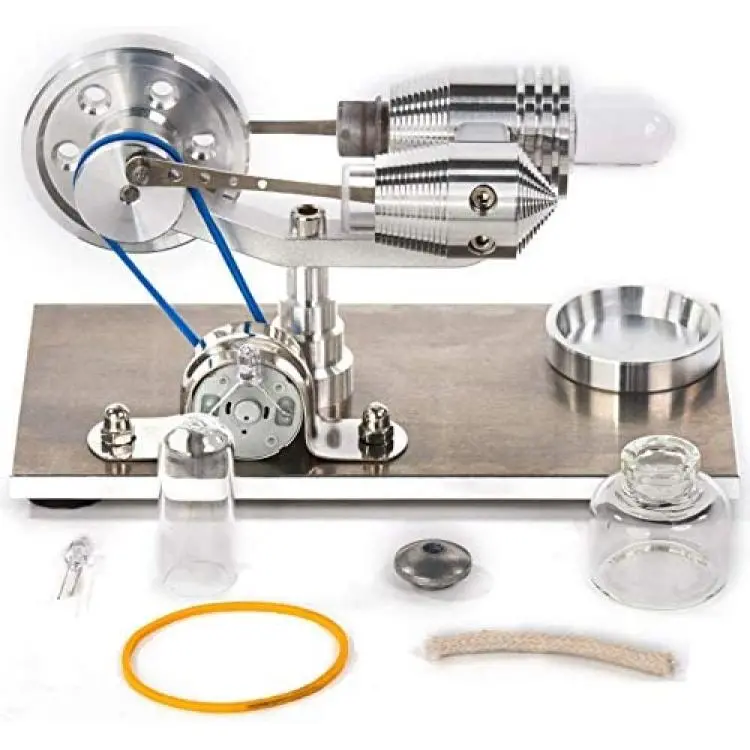

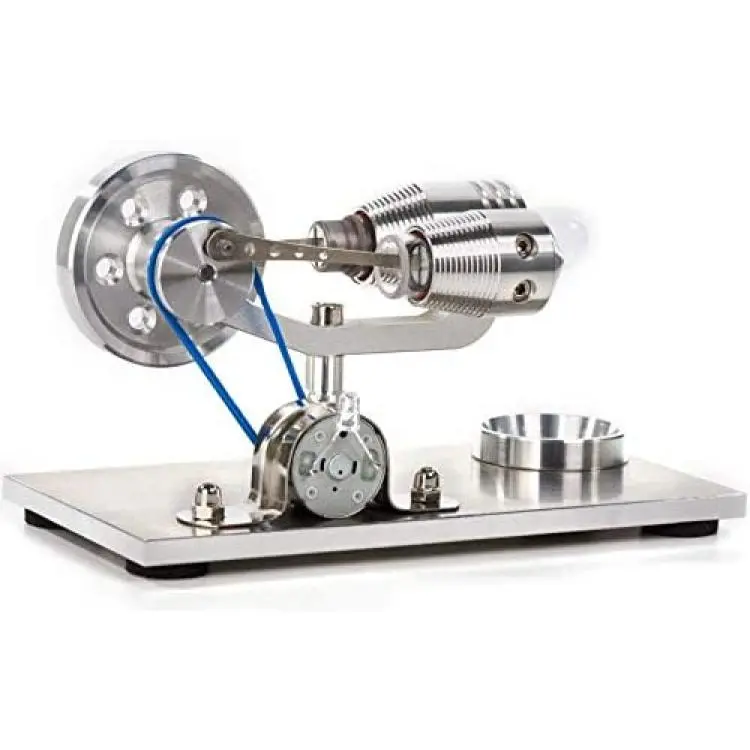

Model: SC010
Status: Assembled
Size: L * W * H 155x80x90mm/6.10x3.15x3.54in(L/W/H) ?
Parameters: power cylinder diameter 12.5mm; piston stroke 15mm/0.59in; speed of about 1700 turn, the fire can increase the increase;
Material: Aluminum, stainless steel, glass
Net Weight: 454g/1.00lb
color: silver (not black)
Packing List:
*Engine x1
* Alcohol Lamp x1
*Spare tube x1
* Multicolor LED x1
