Bemonoc High Torque DC 24V Low Speed 8RPM Worm Gear Motor Reversible Speed Reduce Turbine Electric Gearbox Motor 8mm Shaft with Install Bracket

About this product

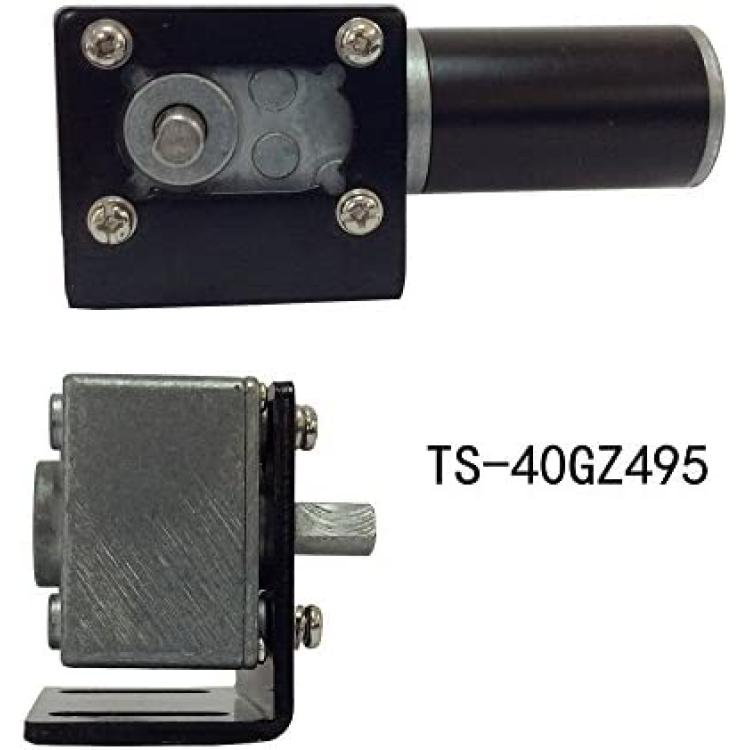

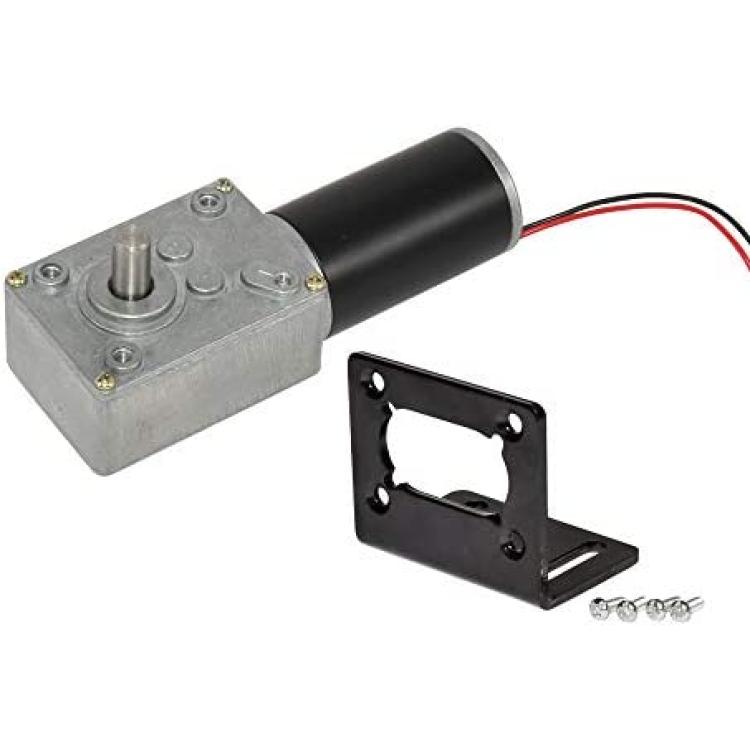

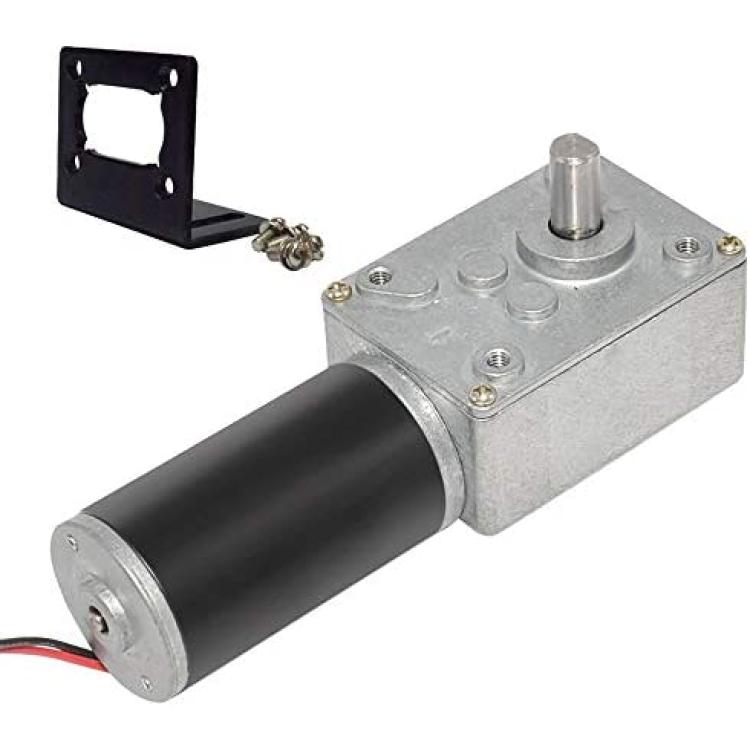

*✔Rated voltage: DC24V; No-load speed: 8RPM; Rated torque: 35kg.cm; Package: 1Pcs*DC Motor + 1Pcs*Bracket + 4Pcs*M4 Mounting Screw;

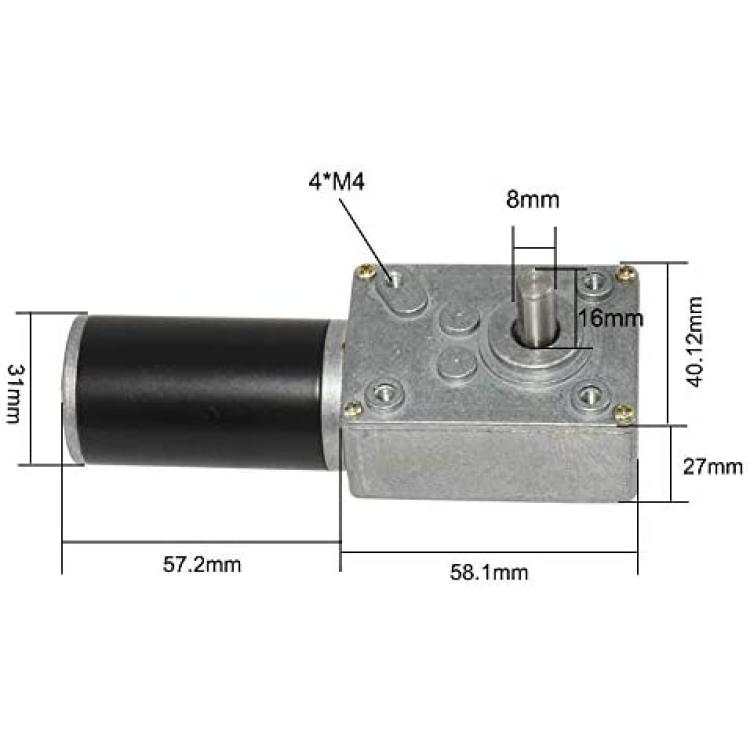

*✔DC Motor Body Dimensions: 31 x 57mm/ 1.22" x 2.24"(D*L); Gear Box Dimensions: 58.1 x 40.1 x 35mm/ 2.28"x1.57"x1.37"(L*W*H), Output Shaft Dimensions: 8 x 15mm/ 0.31" x 0.59"(D*L) with 1x 13mm/ 0.039*0.51(H*L) flat cut off; Wire Length: 19mm/7.4";

*✔How to choose the torque: if driven by a pulley, the radius of the pulley is 1cm, the pulling force of the belt is 25kg; if the radius of the pulley is 2cm; the pulling force of the belt is 12.5kg, and so on; and transmission efficiency and grinding coefficient must be considered in combination with the actual situation;

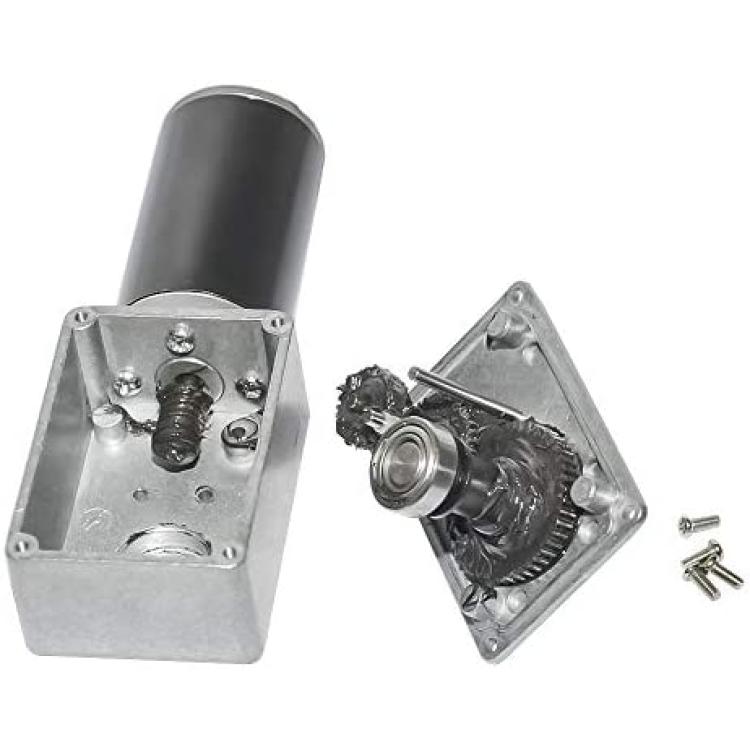

*✔Higher speed motor noise is louder than lower speed; all metal gears motor noise is louder, so we add one plastic gear to reduce the noise, pls consider carefully before you place order, thanks! if you need all metal gears motor you can contact us via message);

*✔You can change the wiring-connection to change shaft rotation direction,with self-locking, the output shaft cant rotation when power-off, that is self-locking; the reducer output shaft arranged vertically with the motor shaft, whole motor output is relatively short,can be widely used in various of occasions that require special installation size.
