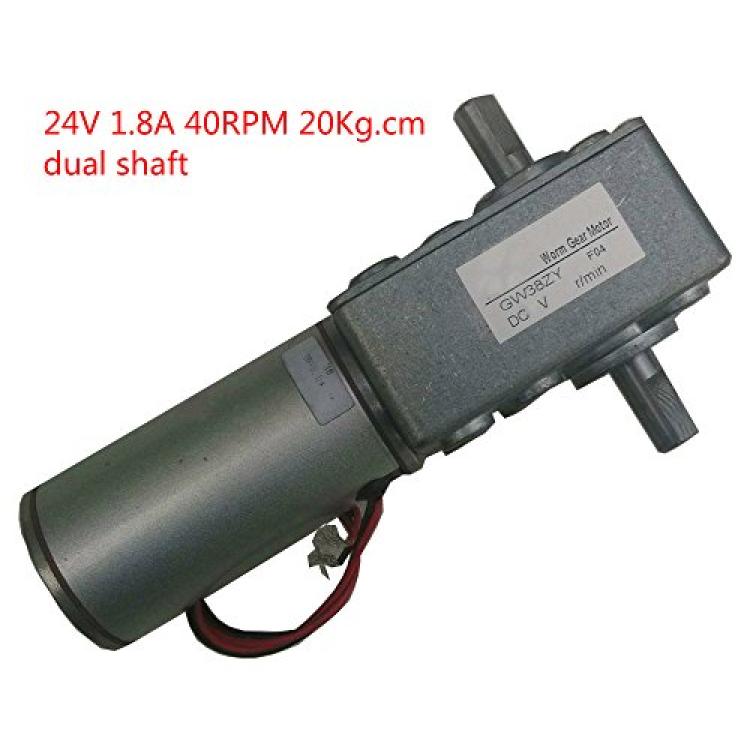

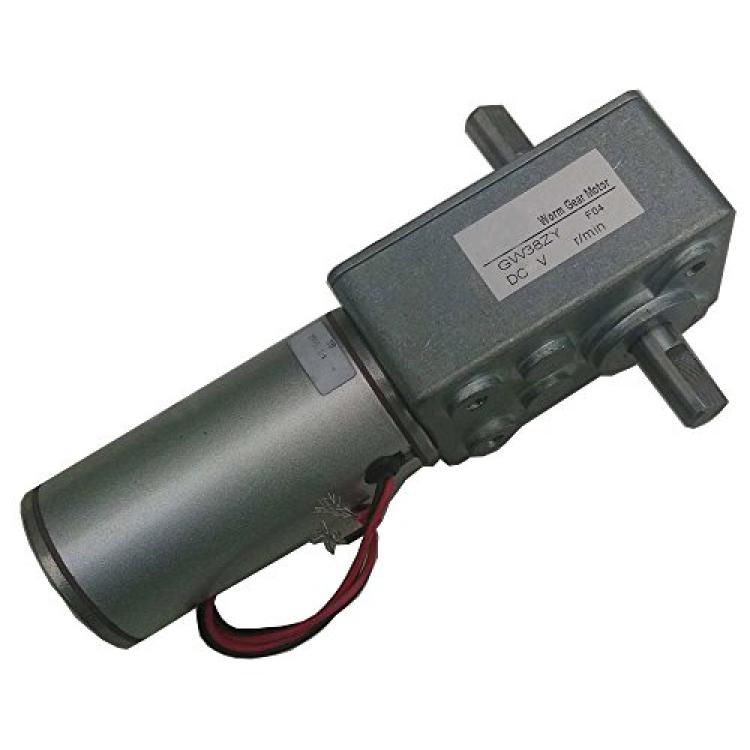

IRUI DC 12V/24V Speed Adaptable Durable Carbon Brush Turbine Worm Speed Reduction Gear Motor (24V 1.8A 40RPM 20Kg.cm, Dual shaft)
Availability: Pre-Order, Inquiry Price
About this product
*The turbine worm speed reduction gear motor is with self-locking, which is if the motor without electric power, the output shaft have self-locked.
*The output shaft direction of gearbox is verticality with the motor shaft, the whole direction of motor output shaft is ultra shorter than the ordinary gear motor.
*This Worm Speed Reduction Gear Motor is widely adapted to some occasion which have the requirements for this installation size
*The turbine worm speed reduction gear motor is with self-locking, which is if the motor without electric power, the output shaft have self-locked.
*The output shaft direction of gearbox is verticality with the motor shaft, the whole direction of motor output shaft is ultra shorter than the ordinary gear motor.
Description
Notice: This motor have single and dual output shaft, the pictures just show the dual output shaft worm speed reduction gear motor, if need the single our shaft gear motor, please just choose it in the Classification. Many thanks.
Descriptions:
This motor is a mininature with DC turbine worm speed reduction gear motor, which could change the wiring of the positive & negative and the rotation of the motor.
Specifications:
Product Name: DC Worm Speed Reduction Gear Motor
Output Shaft: Dual Model: GW38ZY-R40D
Rated Voltage: 24V
No-load Speed: 40rpm
Rated Speed: 30rpm
Rated Torque: 20kg.cm
Reated Current: 1.8A
Body Size: 150 x 50 x 45mm
Shaft Diameter: 10mm
Net Weight: 700g
Package Includes:
1 x Gear Motor
