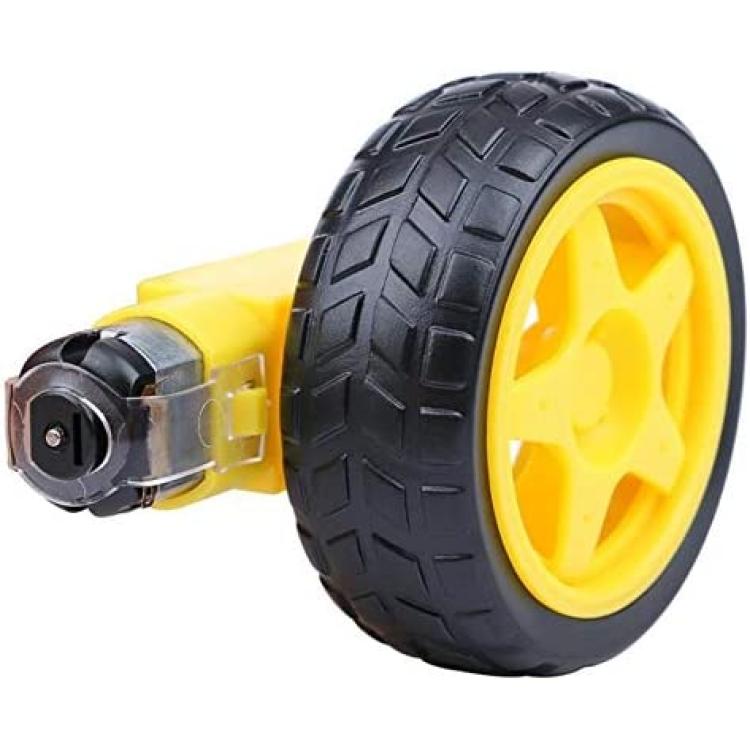

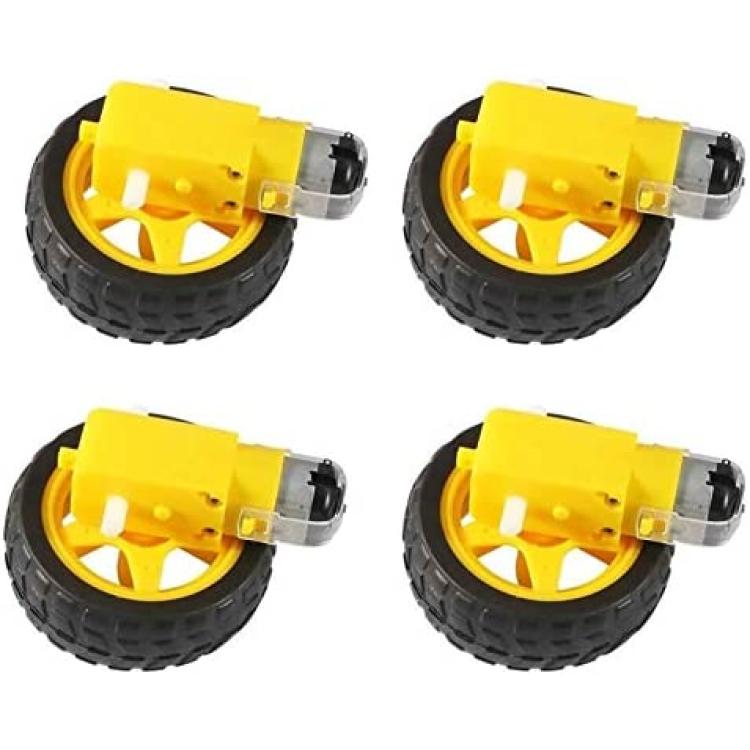

Jinchao-Dc Motor DC Electric Motor with Plastic TT Motor, TT Magnetic Gearbox Engine, Tire Wheel 3-6V Dual Shaft Gear Motor, Easy to Install (Speed(RPM) : 2 x Motor 2 x Wheel)
About this product
*Rated Voltage: 3~6V
*Continuous No-Load Current: 150mA +/- 10%
*Min. Operating Speed (3V): 90+/- 10% RPM
*The rusty or damaged motor on the machine can be replaced.
*Easy to disassemble and maintain, suitable for mini fans, scientific experiments, remote control toy car robots, etc.
Description
TT Motor Description:
Rated Voltage: 3~6V
Continuous No-Load Current: 150mA +/- 10%
Min. Operating Speed (3V): 90+/- 10% RPM
Min. Operating Speed (6V): 200+/- 10% RPM
Torque: 0.15Nm ~0.60Nm
Stall Torque (6V): 0.8kg.cm
Gear Ratio: 1:48
Body Dimensions: 70 x 22 x 18mm
Wires Length: 200mm 28 AWG
Product Weight: 29g / 1.02oz
Wheel Feature:
Wheel diameter: 65mm
Wheel thickness: 28mm
Package Includes:
Please choose the bundle you want.
