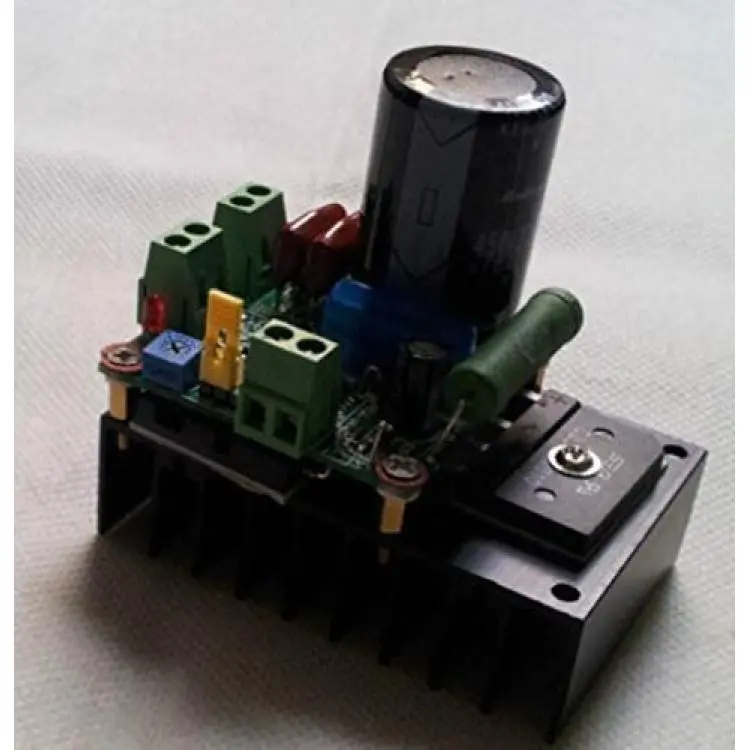

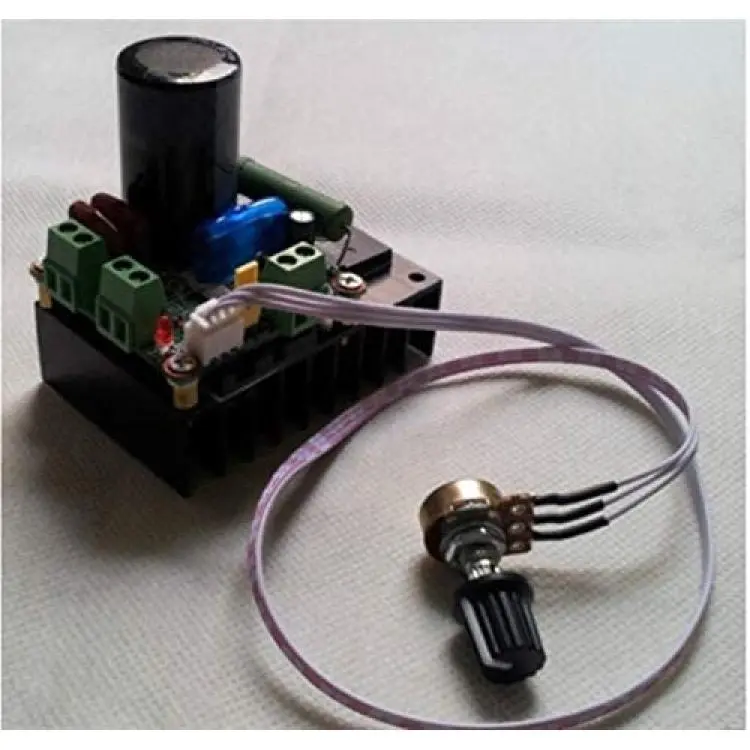

Xuulan Xianglaa-Motor DC Motor, Speed Controller Board MACH3 Spindle, 12V 24V 48V 110V,
About this product
*12V 24V 48V 110V DC Motor Speed Controller Board PWM MACH3 Spindle
*It can support AC and DC input. There is no power supply polarity problems.
*It drives 5V- 110V DC motor speed control.such as pumps, fans, and other equipment engraving machine spindle
*High temperature resistance, high wear resistance, strong carrying capacity, strong and durable.
*Used in a variety of small equipment and experimental equipment, with a wide range of applications
Description
Feature:
1. It can support AC and DC input. There is no power supply polarity problems.
2 ultra-high voltage scope. DC supports 15-160VDC. Input. AC supports 12-110VAC input. (Note: The controller DC motor control work, the highest power supply is 110VAC, not directly connected to 220V, recommendations with <;90V power supply)
3 large radiator with mounting holes.
4 super power control. Can support 5A.
5.In addition to internal panels can PWM speed control, you can also support an external PWM signal input speed control ( input requirements: level 3.5-12V VPP, frequency 1K-10KHZ), especially for MCH3 spindle speed control.
6 supports a wide range of motors. As long as the DC resistance of the motor is greater than 2 ohms DC motor. in particular, this drive can not be less than the DC resistance of 2 ohm DC motor speed control
7 equipped with a fuse 5A, better protection performance.
8 power LED, more convenient to use.
Package
1pc 12V 24V 48V 110V DC Motor Speed Controller Board
