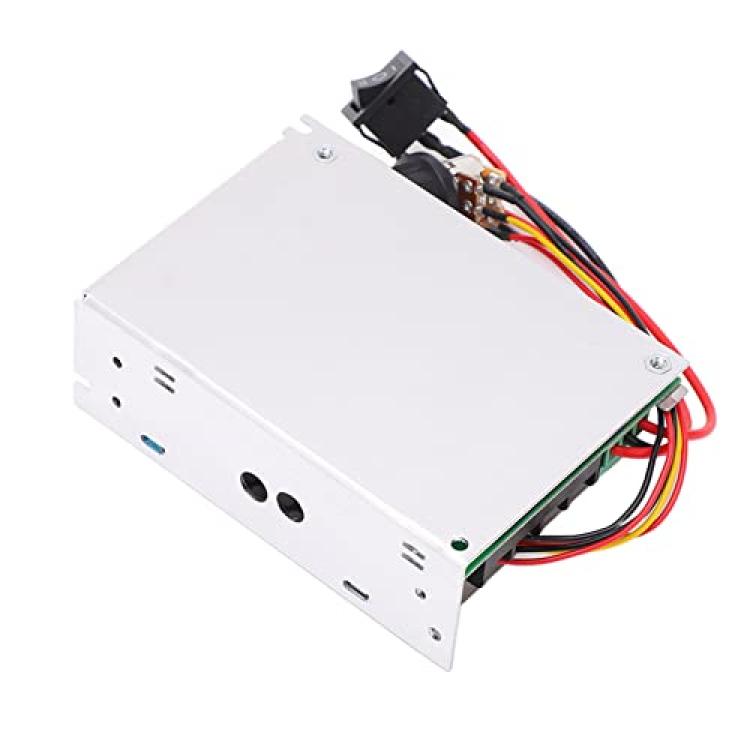

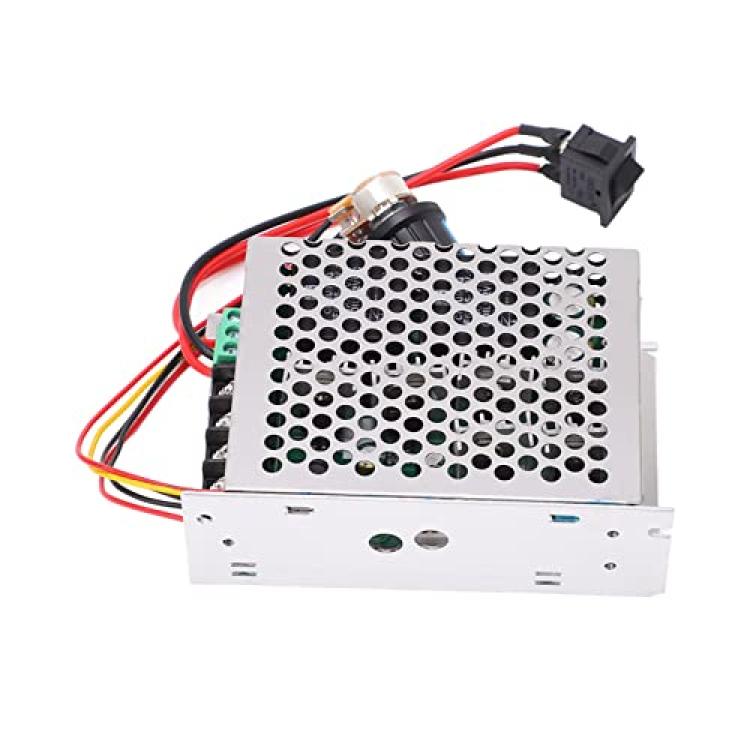

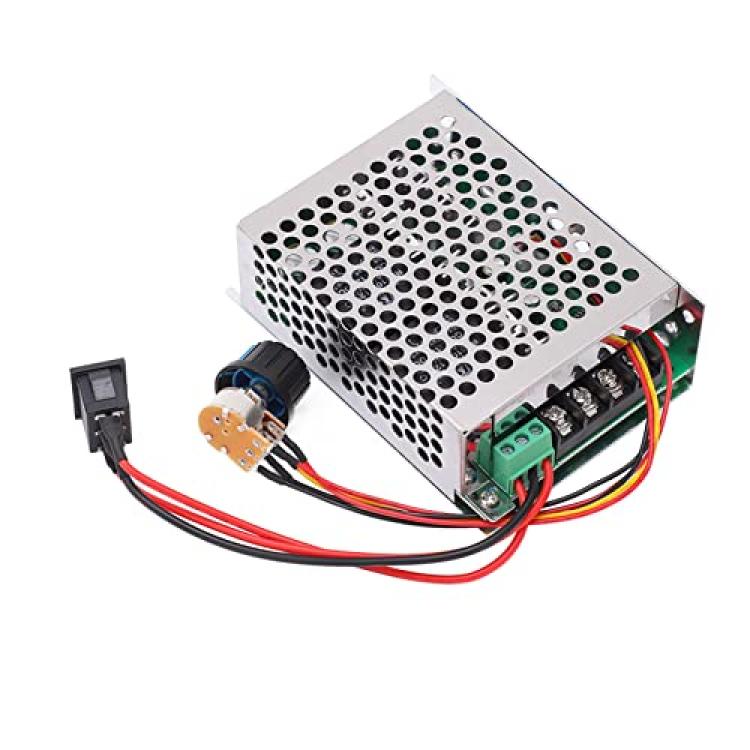

DC Motor Governor, Strong Power Motor Control Module DC10-50V Large Torsion for Machine
Availability: Pre-Order, Inquiry Price
About this product
*DC Motor Control Module: This switch module is designed for DC motors, for adjusting the speed and direction of rotation
*High Current Output: This control module outputs high current and large torsion, the maximum output rated current is 40A, and the long working current is 20A
*High Power Output: The maximum control power of this module is up to 2000W, with strong power and high stability
*Good Heat Dissipation: The module shell has multiple holes, which has good heat dissipation performance and prolongs the service life
*Simple Operation: The control module is easy to operate, convenient to carry, the speed regulation duty cycle range is 0‑100%
Description
Feature:
1. DC Motor Control Module: This switch module is designed for DC motors, for adjusting the speed and direction of rotation
2. High Current Output: This control module outputs high current and large torsion, the maximum output rated current is 40A, and the long working current is 20A
3. High Power Output: The maximum control power of this module is up to 2000W, with strong power and high stability
4. Good Heat Dissipation: The module shell has multiple holes, which has good heat dissipation performance and prolongs the service life
5. Simple Operation: The control module is easy to operate, convenient to carry, the speed regulation duty cycle range is 0?100%
Specification:
Item Type: PWM DC Motor Regulator
Material: PCB
Input Voltage: DC10-50V
Output Voltage: Linear under load
Output Limit Current: 40A (20A for long term use, pay attention to keep the module unobstructed for heat dissipation)
Limit Power: 2000W
Speed Regulation Type: Current regulation
Speed Regulation Mode: Potentiometer (linear)
Speed Regulation Duty Cycle Range: 0-100%
Control Frequency: 25KHZ
Wiring Type: Barrier Terminal
Package List:
1 xPWM DC Motor Regulator
Note:
Pay attention to the correct operation.
