uxcell Metal Gear Synchronous Synchron Motor AC 100-127V 0.8-1RPM 50-60Hz CW 4W

uxcell Metal Gear Synchronous Synchron Motor AC 100-127V 0.8-1RPM 50-60Hz CW 4W

Name: uxcell Metal Gear Synchronous Synchron Motor AC 100-127V 0.8-1RPM 50-60Hz CW 4W
Brand: ‎uxcell
SKU: MM337
Availability: InStock

Brand: ‎uxcell
Product Code: MM337
Availability: Pre-Order, Inquiry Price

US$0.00

- +

For Bulk Order, Get Better Price.

About this product

*[Specification] - Voltage: AC 100-127V; Speed: 0.8-1RPM; Frequency: 50-60Hz; Power: 4W; Direction: CW; Torque: 14kgf.cm; Wire Length: 40cm/ 15.7 inch.

*[Typical Applications ] - Christmas tree, air conditioner, electric fan, microwave oven, heater, turntable, etc.

*[Show Your Style] - An Good Motor For Hand-Made, DIY Project, Model And Anything Else You Want.

*[Features] -AC motor is small power consumption, torque, low noise, small size, light weight, easy to use.

*[Advantage] - The permanent magnet synchronous motor and the slowdown in one body can control the pros and cons of the synchronous motor.At rated frequency, the motor speed is not affected by voltage and remains stable. If the motor is overloaded or stalled, the motor coil will not burn.

Description

Description
It is mainly used for gluing machine,monitor, electrical curtain, stage lights, advertisement electrical movement, electrical apparatus and science and education instruments.

Information About Synchronous Motors
Advantage of using synchronous motor is the ability to control the power factor. An over excited synchronous motor can have leading power factor and can be operated in parallel to induction motors and other lagging power factor loads thereby improving the system power factor.
A synchronous motor is one in which the rotor normally rotates at the same speed as the revolving field.

Specification
Rated Voltage: AC 100-127V
Power: 4W
Manner of Working: CW
Rated Frequency: 50-60Hz
Rated Speed: 0.8-1RPM
Torque: 14kgf.cm

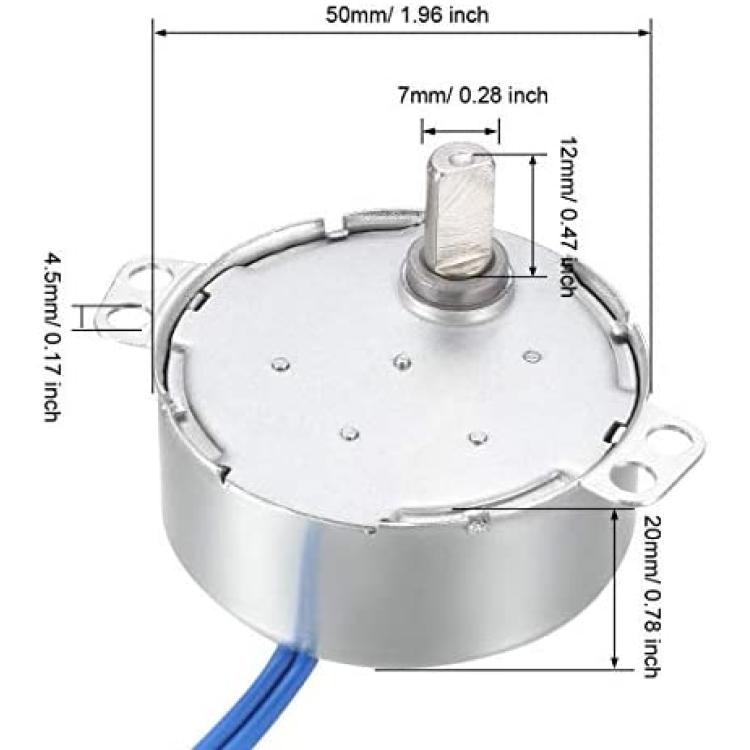

Body Diameter: 50mm/ 1.96 inch
Body Height: 20mm/ 0.78 inch
Total Length: 65mm/ 2.55 inch
Mounting Hole Diameter: 4.5mm/ 0.17 inch
Shaft Diameter: 7mm/ 0.28 inch
Shaft Length: 12mm/ 0.47 inch
Wire Length: 40cm/ 15.7 inch
Package: 1 x AC Synchronous Motor

Tags: synchronous motor, AC motor, small motor, 4W motor, 100-127V motor, DIY motor, hand-made motor, model motor, synchronous motor kit, CW motor
