12V Battery Low Voltage Cut Off Switch On Protection Undervoltage Controller Under-Voltage Control to Protect Battery from Over-discharging
Availability: Pre-Order, Inquiry Price
About this product
*High Quality Undervoltage Switch Controller: This is an undervoltage switch controller that turns off the load power when the voltage drops below the set value. When the battery voltage rises to the set value, the module will automatically restart the load.
*LED Indicator: This battery under voltage controller is designed with an LED indicator to show if the battery is under voltage.
*Easy To Control: This controller will help you protect your battery from over-discharge and extend battery life. Turn-off and turn-on voltage values can be adjusted at the push of a button.
*Applicable Battery: 12V battery/lithium battery, control current: 20A, control accuracy: 0.1V, voltage error: ±0.1V
*Control Voltage: 12V, precision up to 0.1V. Both the off and on voltage values can be set with a simple keystroke.
Description
Specifications:

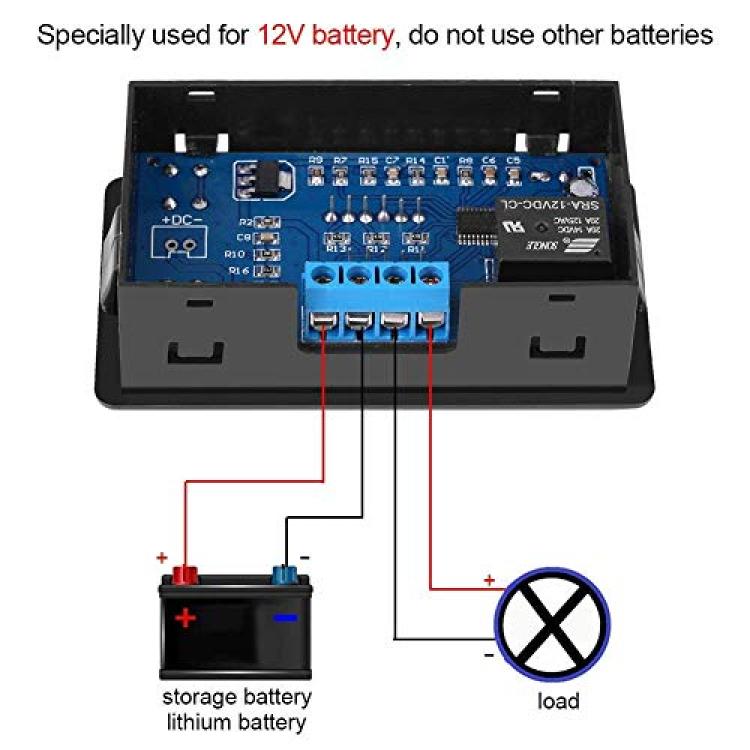

Suitable Battery: 12V storage/lithium battery
Control Current: 20A
Control Precision: 0.1V
Voltage Error: ±0.1V

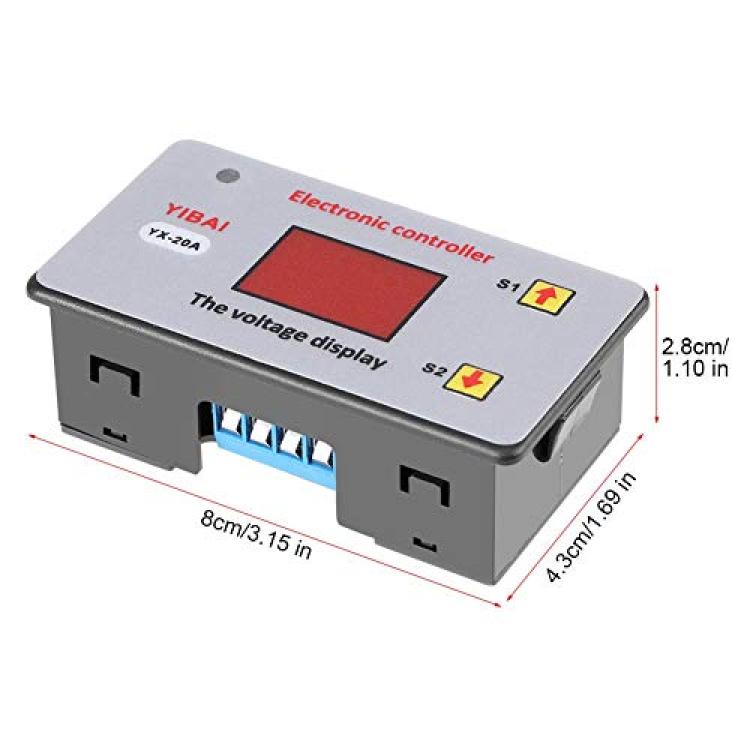

Size: 8*4.3*2.8cm/3.1*1.7*1.1in
Weight: 41g(approx.)
Restore to Factory Setting:
At normal state, press and hold S1 and S2 buttons together, till display shows 888, to restore to factory setting.
Package Includes:
1 x Battery Under-voltage Controller
