Eilumduo DC 24V 60RPM Gear Motor High Torque Electric Micro Speed Reduction Geared Motor Eccentric Output Shaft 37mm Diameter Gearbox with 2 Terminals

Eilumduo DC 24V 60RPM Gear Motor High Torque Electric Micro Speed Reduction Geared Motor Eccentric Output Shaft 37mm Diameter Gearbox with 2 Terminals

Specifications:
Material: Metal
No-load Speed: 60RPM at 24 Volts

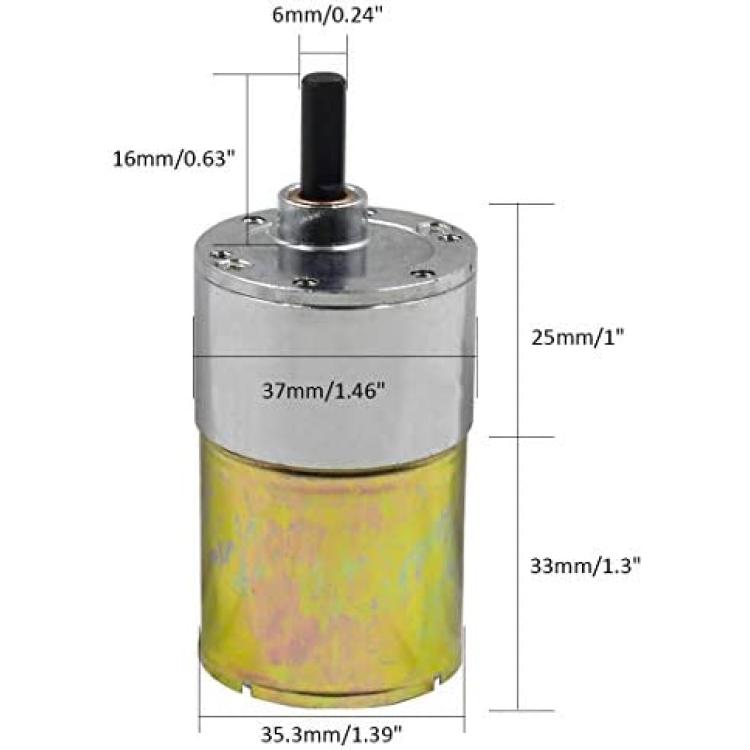

D Shaft Size: 16mm x 6mm/0.63 x 0.24 inches (L*D)
Gearbox Size: 25mm x 37mm/ 1 x 1.46 inches (L*D)
Motor Size: 33mm x 35.3mm/1.30 x 1.39 inches (L*D)
Mounting Hole Size: M3 (NOT included).

Application:
Vending equipments, pan camera, slot machine, money detector, coin refund devices, automatic doors, peritoneal machine, toys motor etc.

Package Included:
- 1 x DC Geared Motor

PLEASE NOTE:
1. Use tolerance: Pay attention to the use of voltage and current range, otherwise the motor performance and motor life will decline.
2. Handling motors: Gently, as far as possible the use of motor shell part.
3. Motor wiring: Red lead to the positive electrode, black lead to the negative pole, if reversed, the motor rotation in the opposite direction.
4. Overload: As far as possible within the specified load range, prohibit motor blocking or close to the stall state for too long time to runs. Otherwise, the motor will burn out.
5. Motor storage:
-- Storage temperature: 0? - 40?;
-- Storage humidity: 15% -90% RH;
-- Avoid placing in high temperature, high humidity and corrosive gases.
6. Motor use temperature: 0? - 70?
