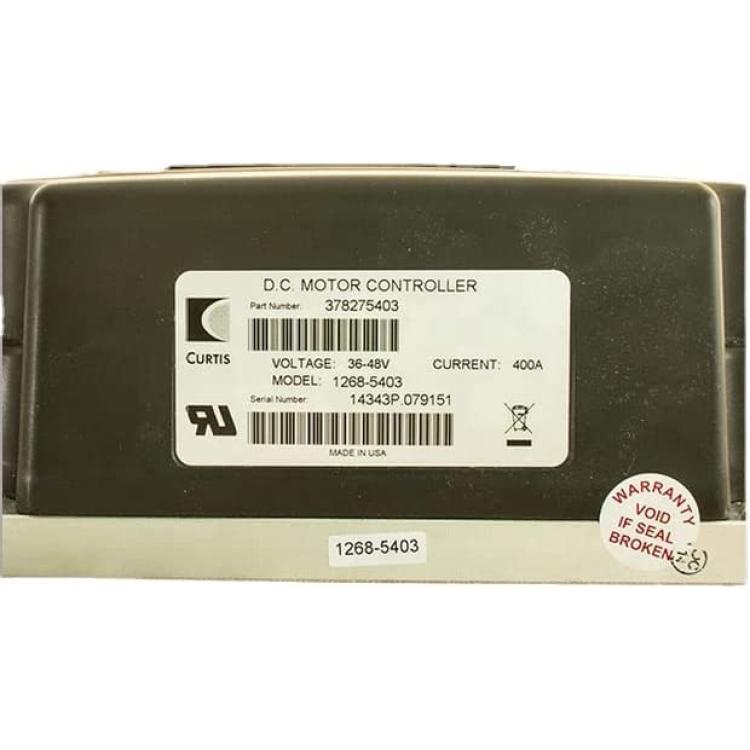

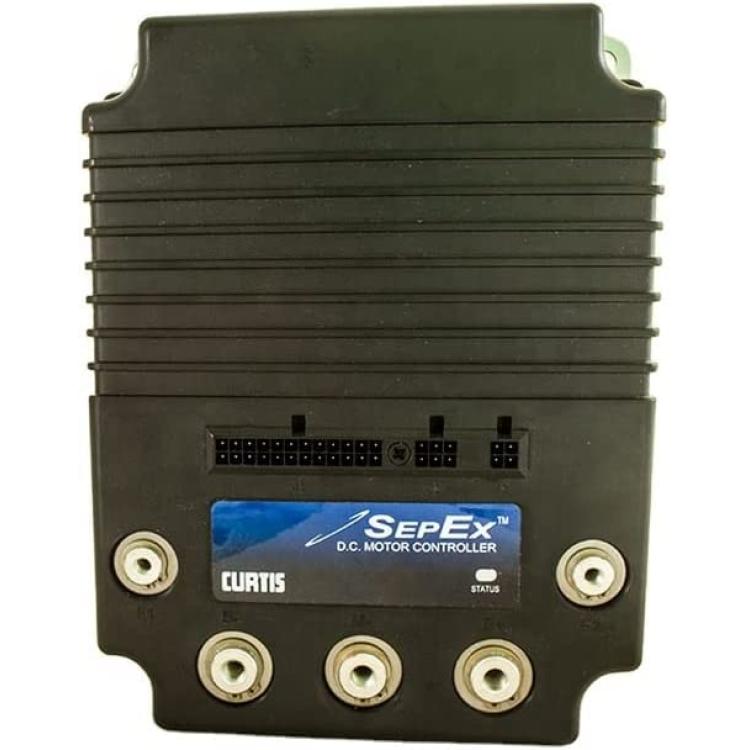

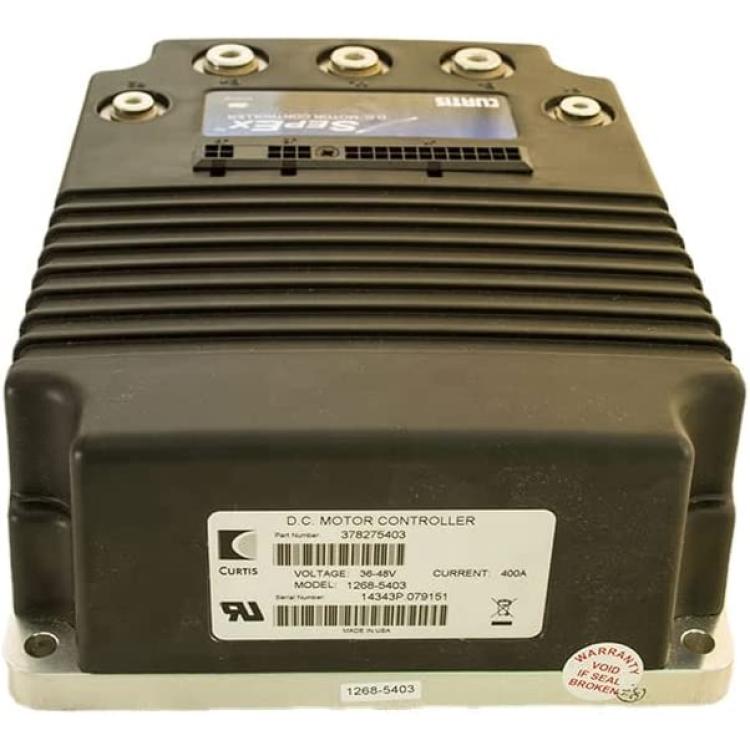

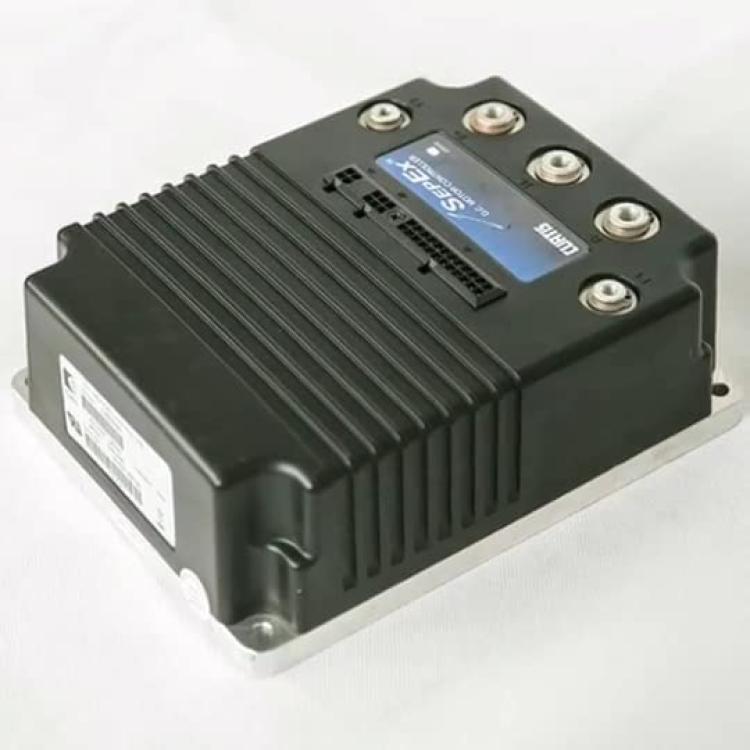

yise-O0469 New 36v 48v 378275403 400V electric cart conversion kits Electric Vehicle Main Parts Curtis 1268-5403 Motor Controller
About this product
*Delivery Time: Packages usually arrive about 5-10 days after they are sent. Urgent items can be sent to DHL and received in about 3-5 days.We can ship to any country as long as you pay the corresponding freight.
*Key Features: * CURTIS Model: 1268-5403 * Norminal Battery Voltage (Volts): 48V (default setting) or 36V * Amature 2 minute current rating (amps): 400 * Field 2 minute current rating (amps): 50 * Logic enable and logic power input voltage (minimum): 16.8 V * Logic enable and logic power input current (no contactors engaged): 160 mA without programmer; 200 mA with programmer * Logic input voltage: 20.0 V High; 7.5 V Low * Logic input current 10 mA
*Specifications: * PWM operating frequency: 16 kHz * Electrical isolation to heatsink (min.): 500 VAC * KSI input voltage (minimum): 16.8 V * KSI input current (typical): 160 mA without programmer; 200 mA with programmer * Ambient operating temperature range: -40°C to 50°C * Heatsink overtemperature cutback: starts at 85°C; cutoff at 95°C * Heatsink undertemperature cutback: 50% armature current at -25°C
*Note : - OEM specs coincidence to ensure the perfect fitment to the related parts - Material qualification for durable and reliable use - Multi-Discipline tests like balance housing durability wheel load limits sealing etc. are carried to enhance the quality of every unit - Please confirm your old part number matches up with one of the part numbers above - Professional installation is highly recommended (No Instruction Included) - for any needs please contact us
*One year warranty. We test each item and 100% ensure that before we ship if there is any dissatisfaction please contact us. Professional manufacture high precision durable. We are a factory specializing in auto parts direct sales wholesale acceptance.If you have any questions you can ask us.We will reply to your message within 3-8 hours.Our products will also be carefully checked before shipment to make sure there is no problem before shipment.
Description
Key Features:
 * CURTIS Model: 1268-5403
 * Norminal Battery Voltage (Volts): 48V (default setting) or 36V
 * Amature 2 minute current rating (amps): 400
 * Field 2 minute current rating (amps): 50
 * Logic enable and logic power input voltage (minimum): 16.8 V
 * Logic enable and logic power input current (no contactors engaged): 160 mA without programmer; 200 mA with programmer
 * Logic input voltage: 20.0 V High; 7.5 V Low
 * Logic input current 10 mA
 * Throttle Type: various throttles can be used with the 1268 controller, including 5k? 3-wire potentiometers and 0?5V throttles.
 * Dimensions: L229xW178xH81 mm
 * Net Weight: 3.9 kg
 * Package environmental rating: IP64, IP67
Specifications:
 * PWM operating frequency: 16 kHz
 * Electrical isolation to heatsink (min.): 500 VAC
 * KSI input voltage (minimum): 16.8 V
 * KSI input current (typical): 160 mA without programmer; 200 mA with programmer
 * Ambient operating temperature range: -40°C to 50°C
 * Heatsink overtemperature cutback: starts at 85°C; cutoff at 95°C
 * Heatsink undertemperature cutback: 50% armature current at -25°C
