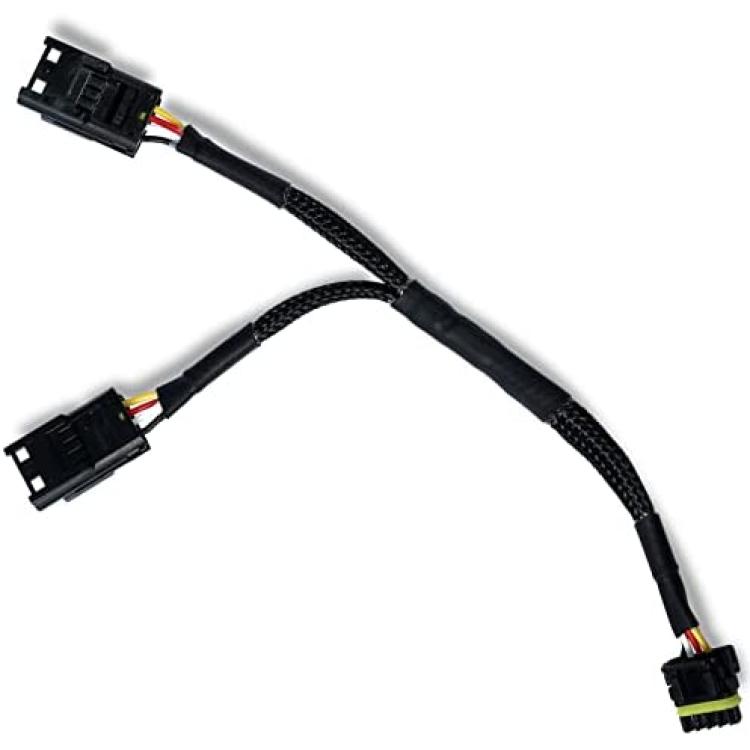

Can Bus EFI Y Splitter Cable MA558-465 Compatible with Holley Terminator X or Sniper EFI System Replace Termx-Y-6, Termx-Y6
About this product

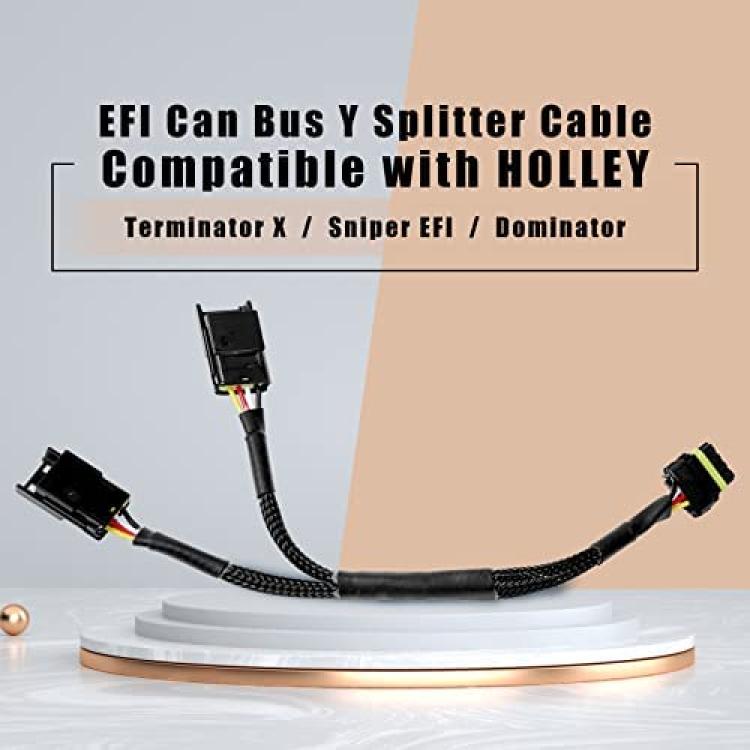

*EFI Can Bus Y Splitter Cable: Compatible with Holley Terminator X, Holley Sniper EFI, Dominator Systems; Replacement Part Numbers: MA558-465, 558-465, TERMX-Y6, TERMX-Y-6

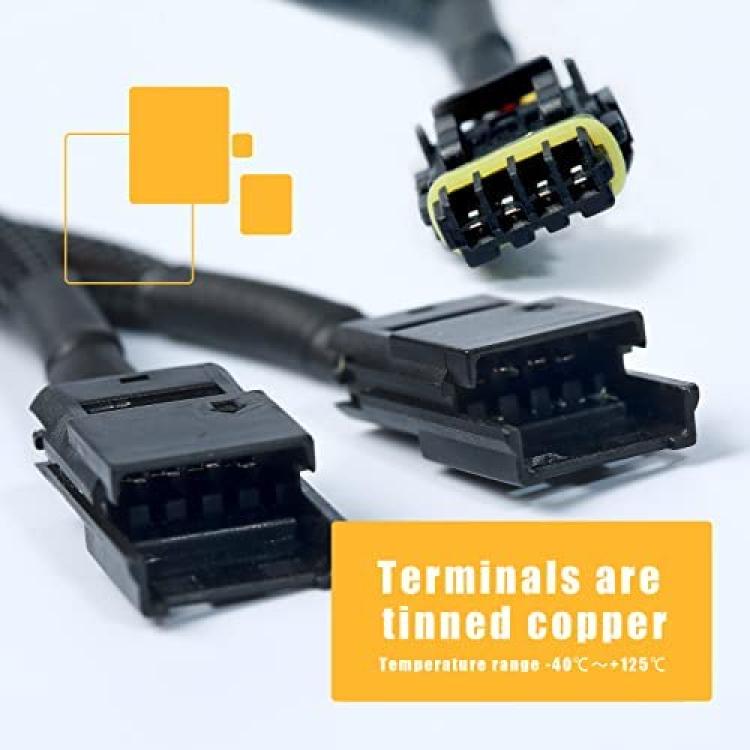

*High-quality Splitter Cable: The outer shell is made of braided tube, which is flame-retardant and waterproof. The inner conductor material is high-precision phosphor bronze, and the terminals are copper tinned. The wiring harness has automotive-grade insulation and is a dedicated wire for TXL automotive engines, with a temperature range of -40 ℃ ~ + 125 ℃, with high reliability and high performance, plug and play
*Realize Multi-System Interaction: The EFI Y Splitter cable plugs into the CAN connector on the main harness, the "Y" side connects to the handheld and the "Y" side connects to any Holley EFI CAN device , such as Digital Dash, USB cable and CAN communication cable
*Easy to use: If you want to keep the handheld controller connected, the EFI Can Bus Y splitter cable is one of the components you need, so that you do not need to unplug the handheld device when connecting another CAN device in the Sniper EFI or Terminator X system
*After-Sale Service: 100% brand new Can Bus EFI Y splitter cable, if you have any questions about the product, please contact us, we will solve it for you as soon as possible. 12 months warranty, provide return and exchange service
Description
Product Specifications:
Colour: Black
Condition: 100% Brand New
Wire specifications: Shielded 4 wires
Product Type: Can Bus EFI Y splitter cable
Manufacturer Part Number: MA558-465

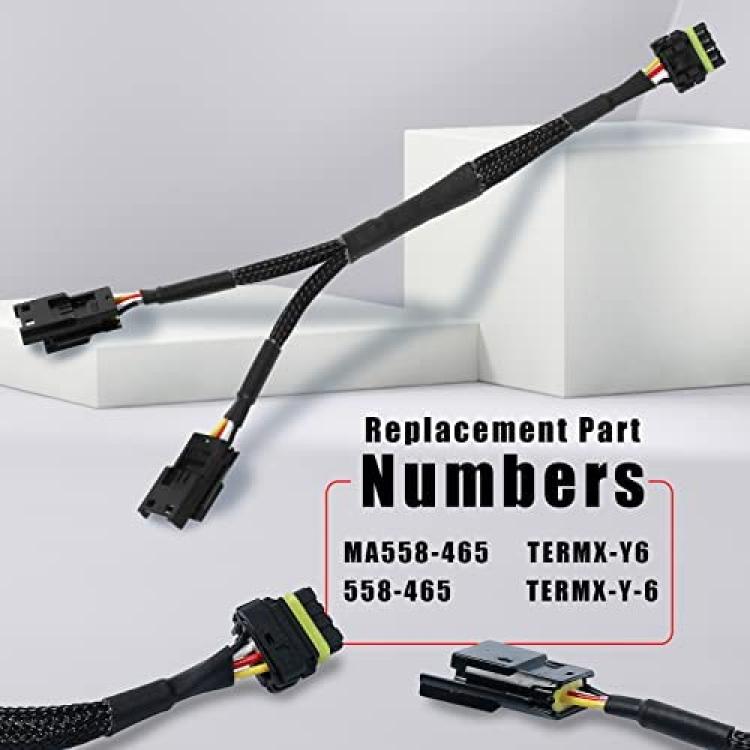

Interchangeable Part Numbers: 558-465, TERMX-Y6, TERMX-Y-6
Package Includes: 1 x 100% new Can Bus EFI Y Splitter Cable
Parts: Connector, terminals and cables,wire harness

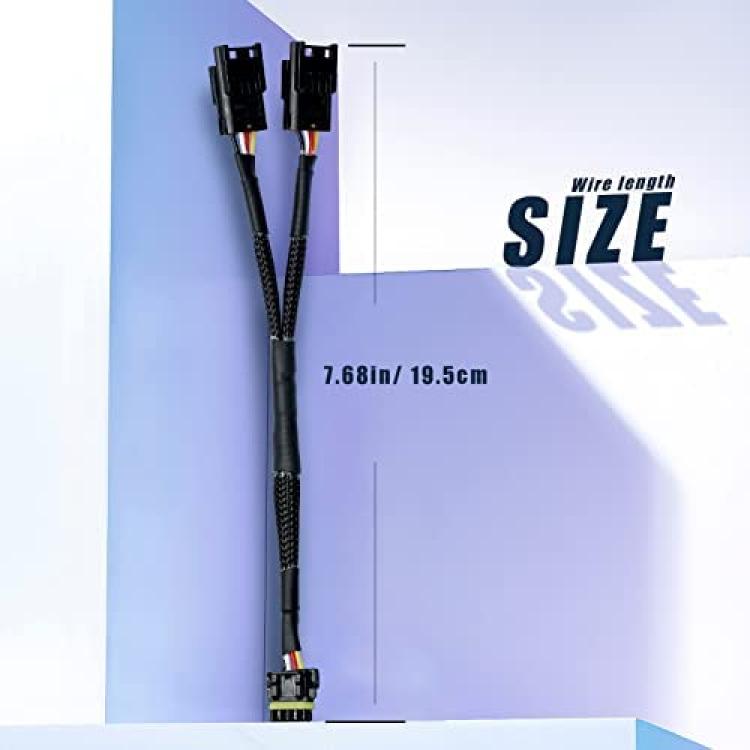

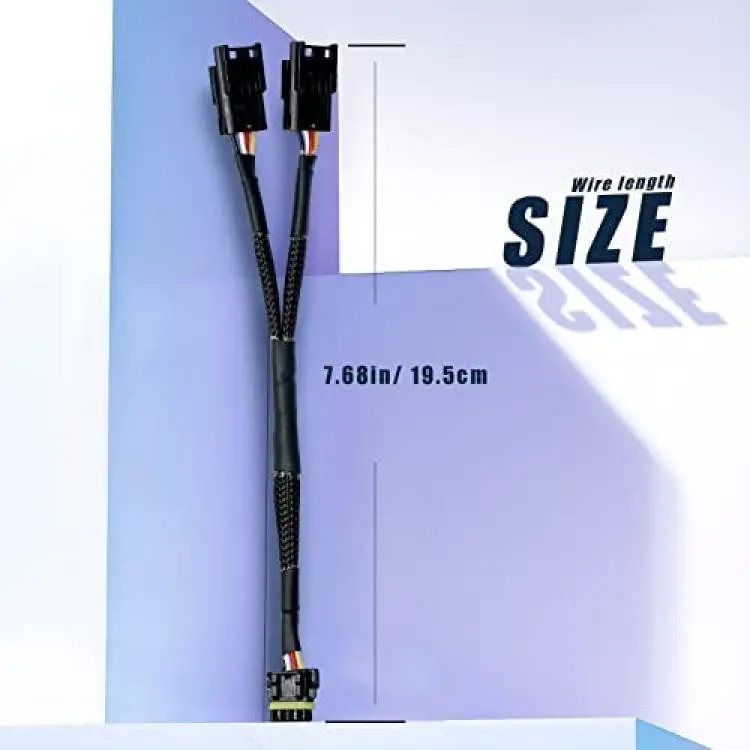

Cable Length: 7.68 Inch/19.5CM
Wire: 20 AWG
Features: Durable, High Heat Resistance, Long Life, Multipurpose
Pay attention:
1. When updating the ECU firmware, the CAN splitter must be unplugged from the main wiring harness, and then the ECU firmware upgrade device must be directly inserted into the main wiring harness.
2. An important note about updating the firmware, when updating the firmware with the Can Bus EFI Y splitter cable connected, it is important to connect only one device. Do not update the firmware when multiple devices are connected to the CAN bus.
3. While this is a great combination of Sniper and Terminator X EFI systems, the Terminator X has two Mizu-P25 connectors on the main harness unless you need three, or you're trying to extend two to Different location, otherwise Terminator X might not need this Can Bus EFI Y splitter cable
