uxcell Worm Geared Motor W Rigid Flange Shaft Coupling,DC 12V 15RPM Motor,H12xD10 6mm ID Shaft Coupling 2Pcs
About this product
*Geared Motor; Rated Voltage: DC 12V; Output Speed: 5000/15RPM;No-load Current:40mA; Rated Torque:3kg.cm; Rated Current:300mA;Stall Torque:10kg.cm;
*Shaft Coupling:Inner Diameter: 6mm/0.24 inch, Total Height: 12mm/0.47 inch, Cylinder Outer Diameter: 10mm/0.39 inch, Cylinder Height: 10mm/0.39 inch, Base Diameter: 22mm/0.87 inch, Base Height: 2mm/0.08 inch, Mounting Hole Distance: 16mm/0.63 inch,2 x M3 Fastening Screws
*Application: bank equipment, paper feeder, machine, accessory of ad equipment, analysis instrument, electronic game machine.
*Function: A special coupler, which can fix one shaft to a plane and install other parts on the shaft easily. Double connection points fasten the coupler tightly.
*1 X Geared Motor, 2 X Shaft Coupling
Description
Description:
Application: bank equipment, paper feeder, machine, accessory of ad equipment, analysis instrument, electronic game machine.
Specification:

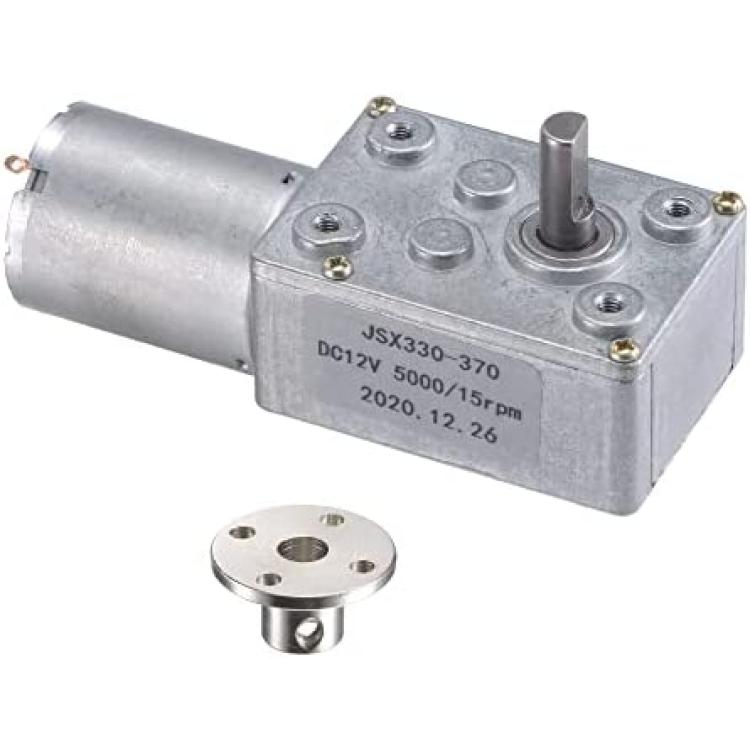

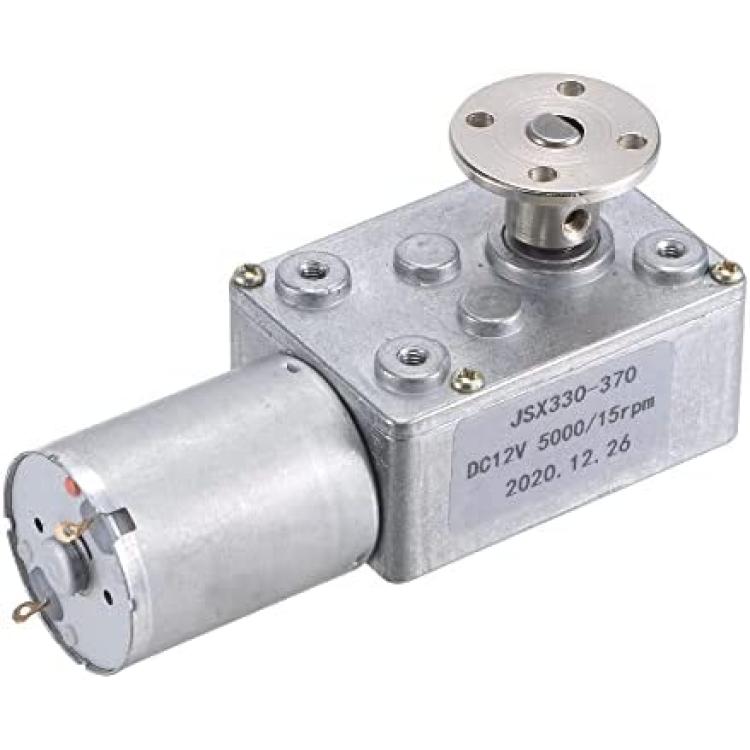

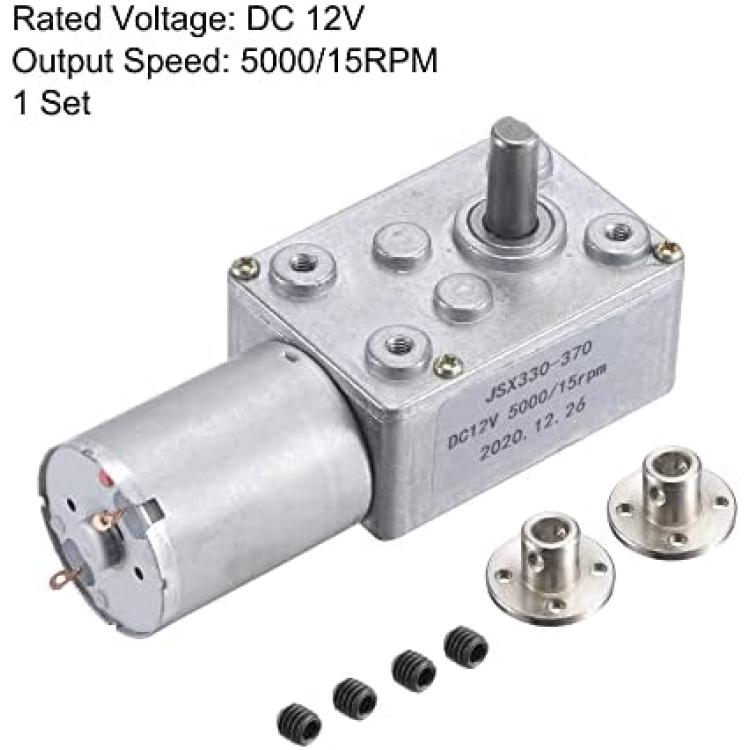

Geared Motor:
Rated Voltage: DC 12V;
Output Speed: 5000/15RPM;
No-load Current:40mA;
Rated Torque:3kg.cm;
Rated Current:300mA;
Stall Torque:10kg.cm;
Box Shaft Size: 6 x 14mm/ 0.24" x 0.55"(D*L);
Female Thread Diameter: 2.5mm/ 0.1";
Motor Body Size: 30 x 25mm/ 1.2" x 1"(L*Max.D)

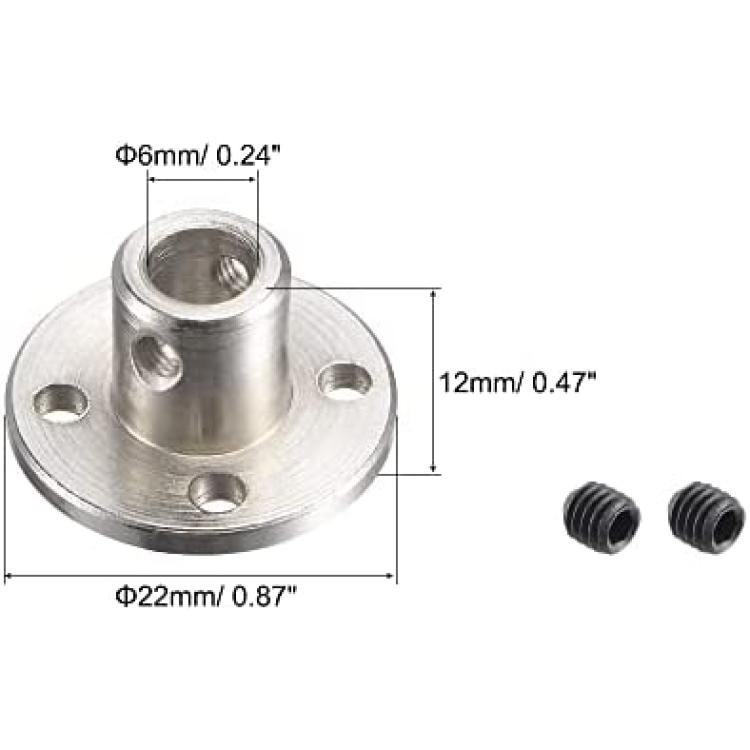

Shaft Coupling:
Material: Iron Plating
Color: Silver Tone
Inner Diameter: 6mm/0.24 inch
Total Height: 12mm/0.47 inch
Cylinder Outer Diameter: 10mm/0.39 inch
Cylinder Height: 10mm/0.39 inch
Base Diameter: 22mm/0.87 inch
Base Height: 2mm/0.08 inch
Mounting Hole Distance: 16mm/0.63 inch

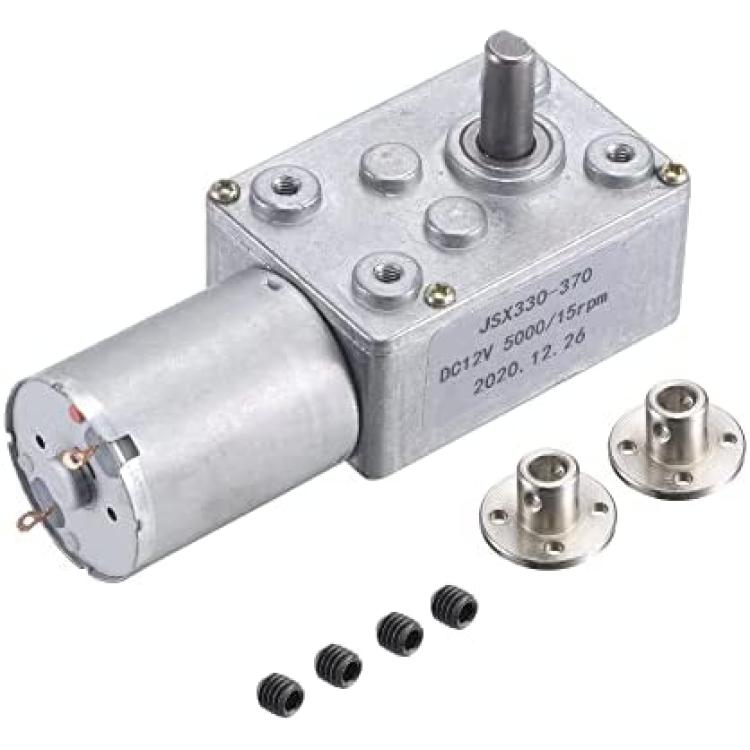

Package Content:
1 X Geared Motor, 2 X Shaft Coupling
