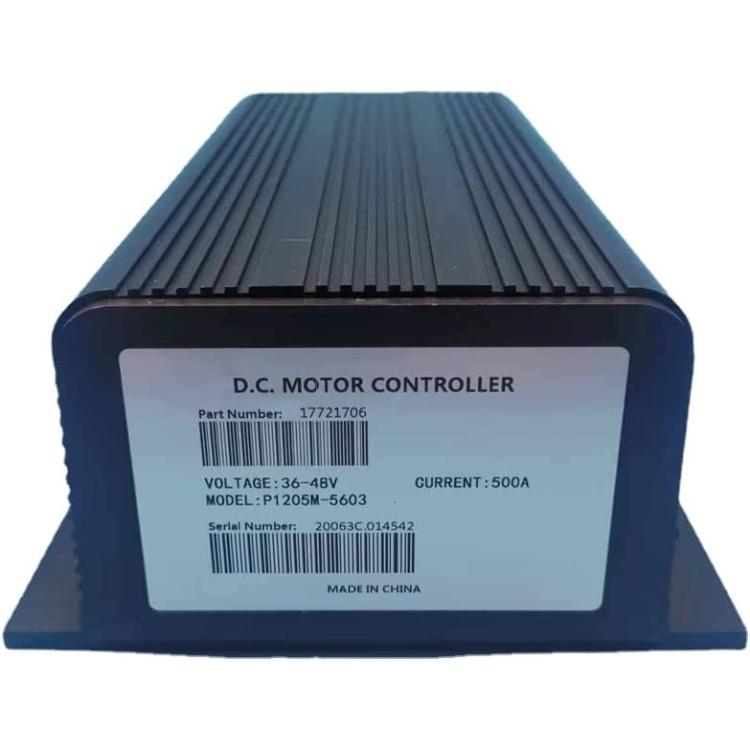

yise-O0468 New P1205M-5603 1205M-5603 17721706 36-48V 500A DC Motor Controller,Vehicle Speed Control Devices,Forklift Motor Controller 1205M-5603

About this product

*Delivery Time: Packages usually arrive about 5-10 days after they are sent. Urgent items can be sent to DHL and received in about 3-5 days.We can ship to any country as long as you pay the corresponding freight.

*CURTIS Model: 1205M-5603   Norminal Battery Voltage (Volts): 48V (default setting) or 36V   1 Hour Current Rating (amps): 200   Plug Braking (A2 Busbar): Yes   Electrical isolation to heatsink (min.): 500 VAC   KSI input current (no contactors engaged):   70 mA without programmer   130 mA with programmer   Logic input current: < 2 mA

*Status LED output current (max.): < 2 mA   Package environmental rating: ISTA 2A; electronics sealed to IP54   SPECIFICATIONS FOR CONTROLLERS    Main performance    Nominal input voltage V 36/48 1 Minute Current Rating A 500 5 Minute Current Rating A 350 Key Features    PWM operating frequency KHZ 15.6 Operating ambient temperature range °C -40°C to 50°C (-40°F to 122°F) Storage ambient temperature range °C -40°C to 85°C (-40°F to 185°F)

*Note : - OEM specs coincidence to ensure the perfect fitment to the related parts - Material qualification for durable and reliable use - Multi-Discipline tests like balance housing durability wheel load limits sealing etc. are carried to enhance the quality of every unit - Please confirm your old part number matches up with one of the part numbers above - Professional installation is highly recommended (No Instruction Included) - for any needs please contact us

*One year warranty. We test each item and 100% ensure that before we ship if there is any dissatisfaction please contact us. Professional manufacture high precision durable. We are a factory specializing in auto parts direct sales wholesale acceptance.If you have any questions you can ask us.We will reply to your message within 3-8 hours.Our products will also be carefully checked before shipment to make sure there is no problem before shipment.
