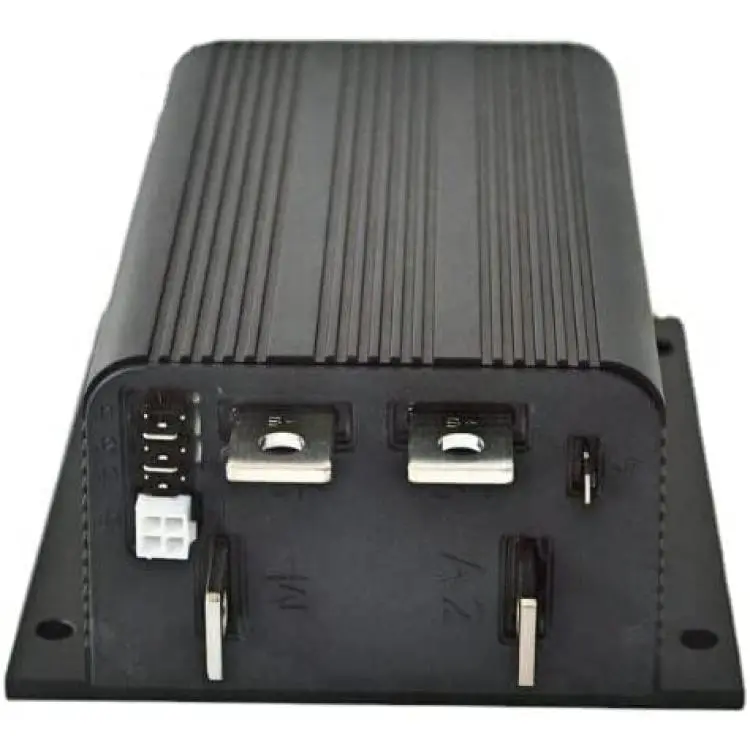

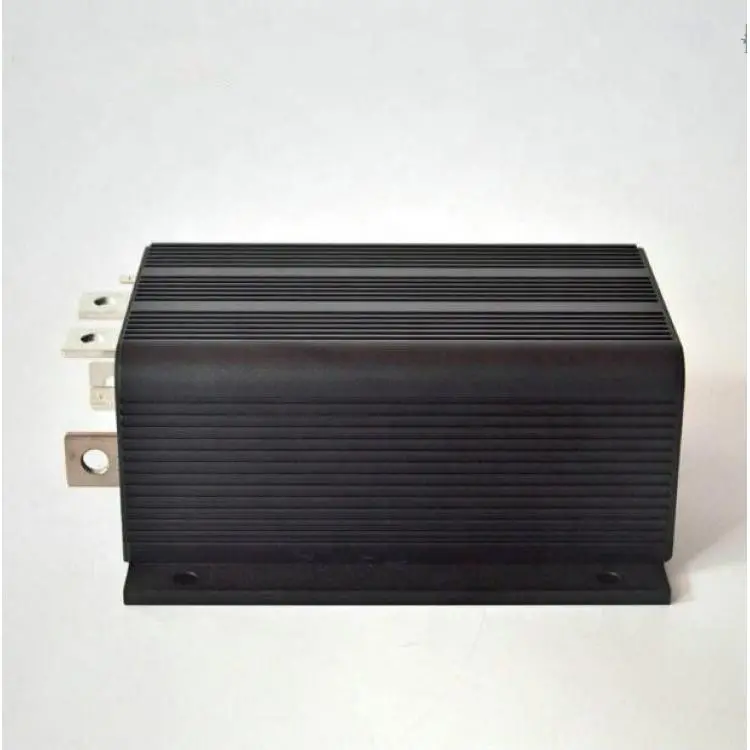

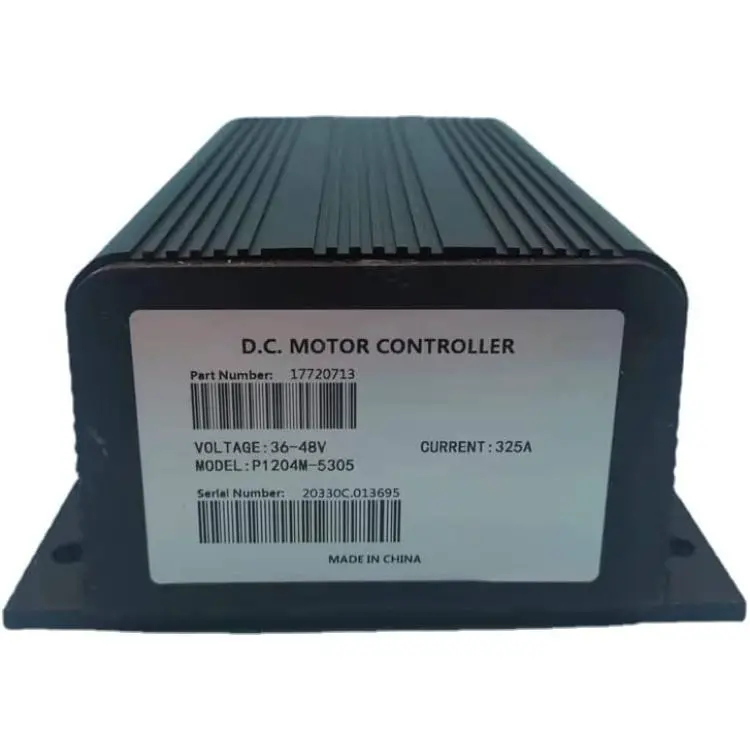

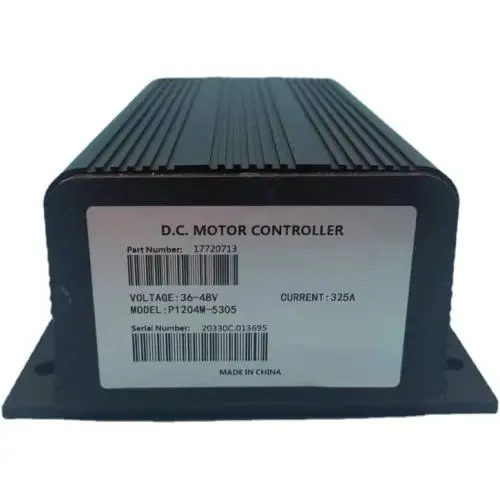

yise-O0467 New Motor Controller Replacing CURTIS 325A 36-48V 17720713 PMC 1204M-5305 DC Motor Speed Controller for Curtis Club Car
About this product
*Delivery Time: Packages usually arrive about 5-10 days after they are sent. Urgent items can be sent to DHL and received in about 3-5 days.We can ship to any country as long as you pay the corresponding freight.
*CURTIS Model: 1204M-5305 Norminal Battery Voltage (Volts): 48V (default setting) or 36V 2 Minute Current Rating (amps): 325 5 Second Boost Current Rating (amps): 358 1 Hour Current Rating (amps): 140 Plug Braking (A2 Busbar): Yes PWM operating frequency: 15.6 kHz Electrical isolation to heatsink (min.): 500 VAC KSI input current (no contactors engaged): 70 mA without programmer 130 mA with programmer
*Type 0: 2-wire potentiometer, 0?5k? Type 1: 2-wire potentiometer, 5k??0 Type 2: single-ended 0?5V input Type 3: 2-wire potentiometer, 4.6k??0 Type 4: 2-wire potentiometer, 5.5k??0 Type 5: 2-wire potentiometer, 1k??0 Type 6: ITS input Type 7: single-ended 6.3?10.6 V input Type 8: single-ended 6?12 V input Type 9: single-ended 3-wire potentiometer, 0?5k?
*Note : - OEM specs coincidence to ensure the perfect fitment to the related parts - Material qualification for durable and reliable use - Multi-Discipline tests like balance housing durability wheel load limits sealing etc. are carried to enhance the quality of every unit - Please confirm your old part number matches up with one of the part numbers above - Professional installation is highly recommended (No Instruction Included) - for any needs please contact us
*One year warranty. We test each item and 100% ensure that before we ship if there is any dissatisfaction please contact us. Professional manufacture high precision durable. We are a factory specializing in auto parts direct sales wholesale acceptance.If you have any questions you can ask us.We will reply to your message within 3-8 hours.Our products will also be carefully checked before shipment to make sure there is no problem before shipment.
Description
CURTIS Model: 1204M-5305
Norminal Battery Voltage (Volts): 48V (default setting) or 36V
2 Minute Current Rating (amps): 325
5 Second Boost Current Rating (amps): 358
1 Hour Current Rating (amps): 140
Plug Braking (A2 Busbar): Yes
PWM operating frequency: 15.6 kHz
Electrical isolation to heatsink (min.): 500 VAC
KSI input current (no contactors engaged):
70 mA without programmer
130 mA with programmer
Logic input current: < 2 mA
Status LED output current (max.): < 2 mA
Ten throttle types can be used with these controllers:
Type 0: 2-wire potentiometer, 0?5k?
Type 1: 2-wire potentiometer, 5k??0
Type 2: single-ended 0?5V input
Type 3: 2-wire potentiometer, 4.6k??0
Type 4: 2-wire potentiometer, 5.5k??0
Type 5: 2-wire potentiometer, 1k??0
Type 6: ITS input
Type 7: single-ended 6.3?10.6 V input
Type 8: single-ended 6?12 V input
Type 9: single-ended 3-wire potentiometer, 0?5k?
Dimensions: L173xW146xH77 mm
Operating ambient temperature range: -40°C to 50°C
Storage ambient temperature range: -40°C to 85°C
Package environmental rating: ISTA 2A; electronics sealed to IP65
Regulatory compliance: EN 12895 and EN 61000
