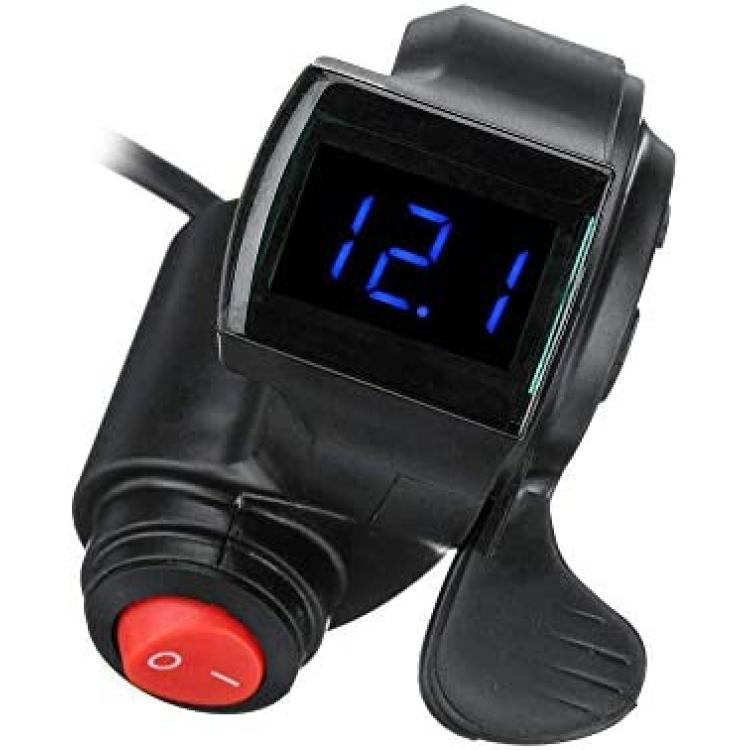

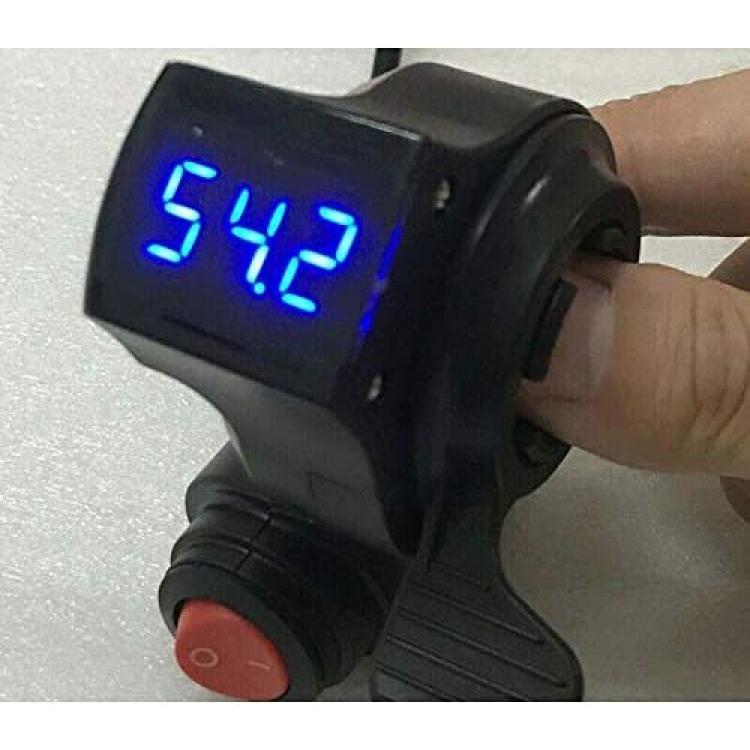

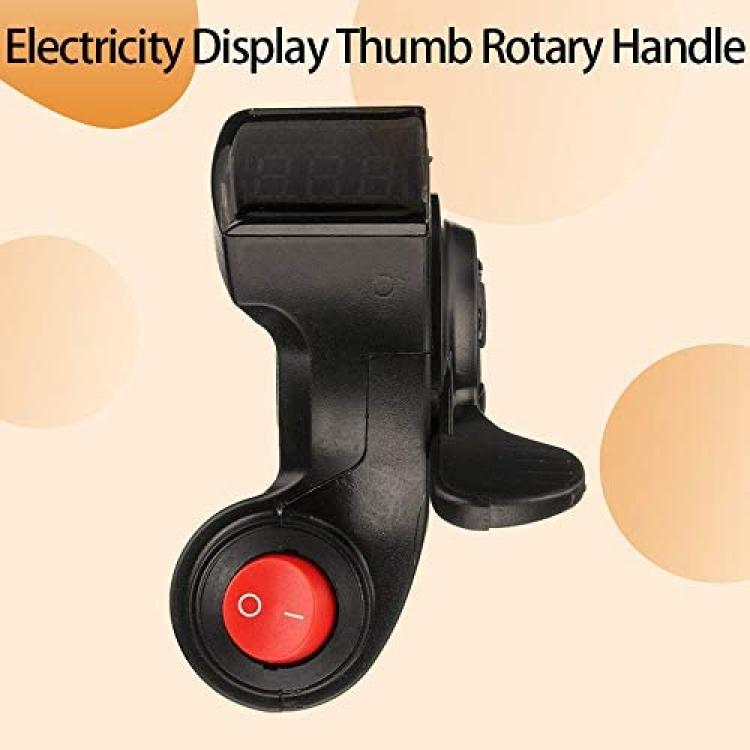

KOOBOOK 1Pcs 12V-72V E-Bike Universal Thumb Throttle LED Display Voltage Black Portable Digital Grips With Power Switch For Scooter Electric Bike

Wiring way:
Green is for throttle hall signal, red wire is for throttle +5v, black is negative wire; please connect according to controller function wire, U can not just match same color wire, if wrong connected that will damage your controller and throttle.
4 wires : yellow is for voltage display wire, connect with electric bike power positive.
5 wires: blue wire connect with controller power lock output wire, yellow wire connected with controller electric switch input wire power positive
6 wires ; yellow connected with power positive, blue wire and white is is function wire(can work as reverse switch, horn switch, cruise switch, power lock and so on)
7 wires: yellow connected with power positive, blue is share wire, middle gear for 3 gears , white is high gear, brown is low gear.

Battery common sense:
For this display Battery is measured by voltage.Due to the difference of battery material, battery conditions ( new or old, ),controller data , the battery voltage reaction will be different, so the data bellow will have deviation. Customers please check according to your battery to get your battery data.

For 12v electric bike, max voltage is about 12.6v, mini is about 9v or higher
For 24 electric bike, max voltage is about 29.4v, mini is about 21v or higher
For 36v electric bike, max voltage is about 42v, mini is about 29v or higher
For 48v electric bike, max voltage is about 54.6v, /58.8v, mini is about 40v or higher
For 60v electric bike, max voltage is about 72v, mini is about 49v or higher
For 72v electric bike, max voltage is about 84v, mini is about 60v or higher
For other electric bike with higher voltage there should be a voltmeter installed.

We highly appreciate all customers opinions to improve the selling, also if anything you unsatisfied, please contact us for probable best solution.

Package Includes: 1Pcs
